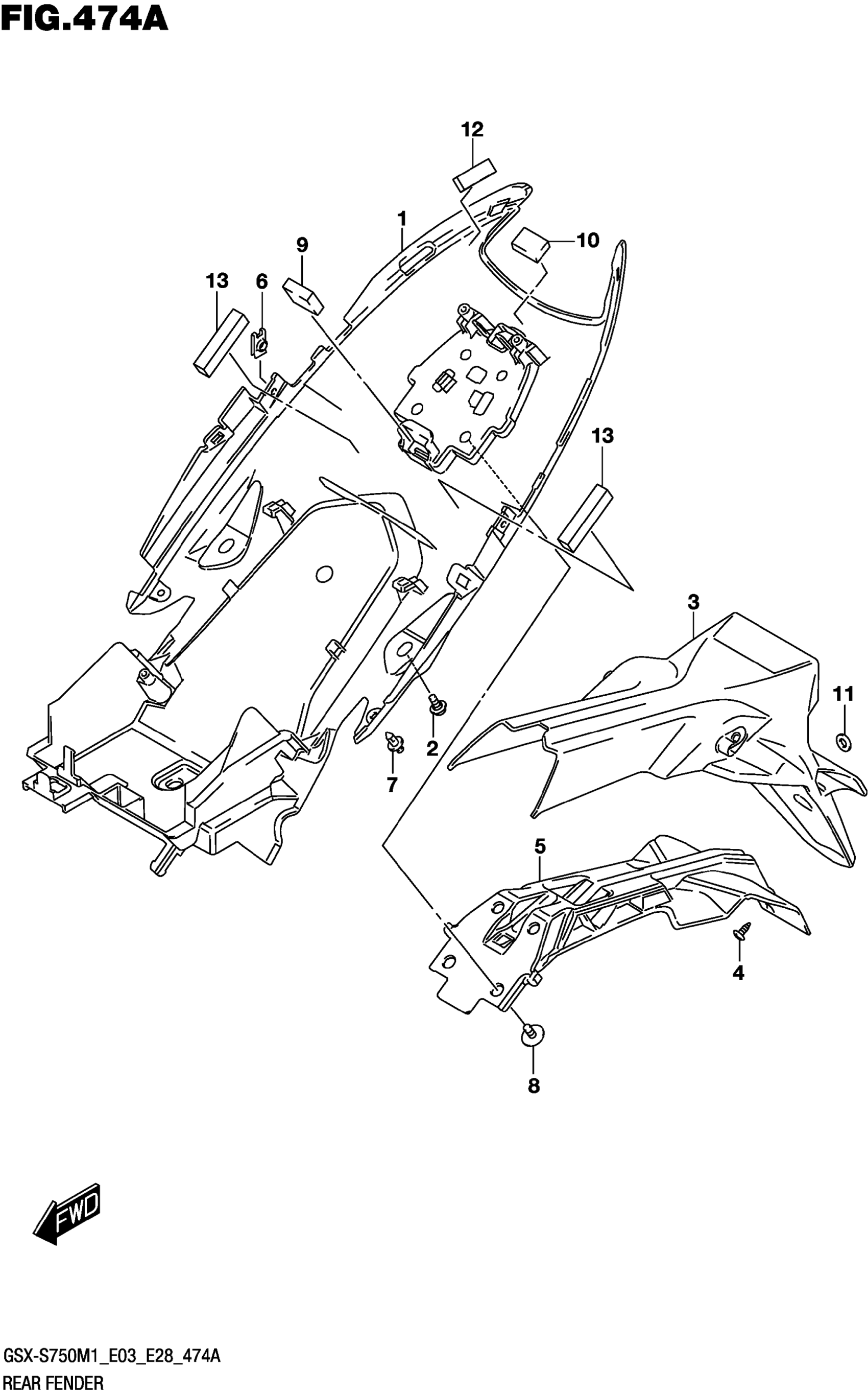

Suzuki GSX-S750AM1 (2021) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR FRONT

63111-13K00

$128.60

2

BOLT (6X12)

09111-06107

$2.66

3

FENDER,REAR REAR OUTER

63113-04K00

$104.15

4

SCREW

03541-0516A

$1.41

5

FENDER,REAR REAR INNER This part replaces 63116-13K00.

63116-13K01

$96.43

6

NUT (M5)

09148-05038

$2.01

7

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

8

BOLT

01550-0612B

$2.44

9

.CUSHION (20X30X15)

17798-29E30

$8.62

10

CUSHION This part replaces 63411-35B00.

51827-01A00

$6.95

11

WASHER

08322-0106B

$2.31

12

CUSHION (10X30X6)

33652-47F00

$3.53

13

CUSHION (8X50X8)

47122-17K00

$2.09
