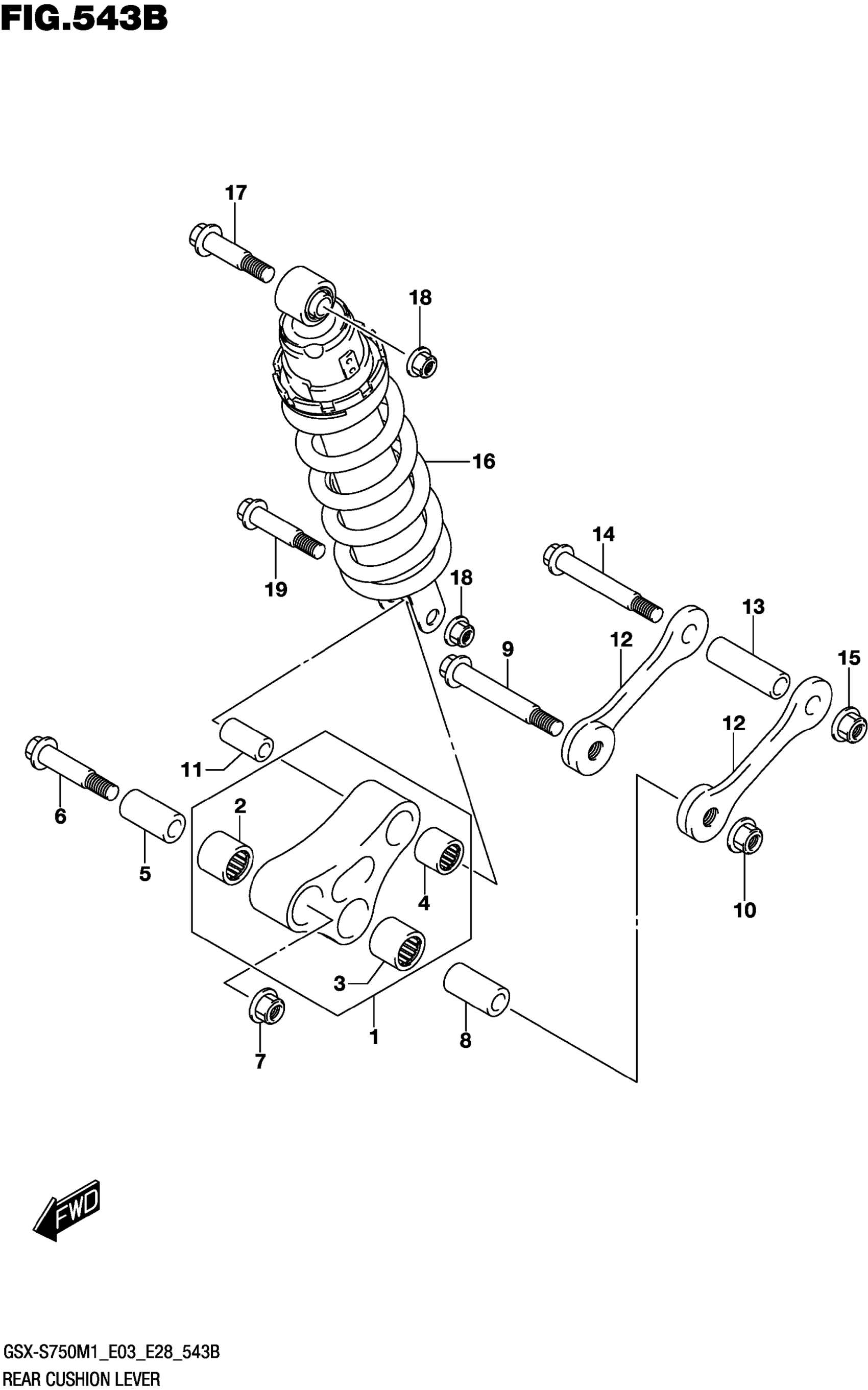

Suzuki GSX-S750AM1 (2021) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET

62600-08841

$117.98

2

.BEARING

09263-20116

$31.15

3

.BEARING

09263-20116

$31.15

4

BEARING (17X24X32)

09263-17046

$41.45

5

SPACER,RR CUSHION LEVER FR

62317-44B00

$21.03

6

BOLT (12X62) | 2)

62668-42A02

$10.67

7

NUT

09159-12056

$7.37

8

SPACER,RR CUSHION LEVER FR

62317-44B00

$21.03

9

BOLT,RR CUSHION LEVER UPR

62658-37F10

$10.37

10

NUT

09159-12056

$7.37

11

SPACER,RR SHOCK ABS LWR

62317-47H00

$20.45

12

ROD,RR CUSHION

62640-08J00

Unavailable

13

SPACER,RR CUSHION ROD

62646-08J00

$21.10

14

BOLT,RR CUSHION LEVER UPR

62658-37F10

$10.37

15

NUT

09159-12056

$7.37

16

ABSORBER ASSY,REAR SHOCK (GRA | )

62100-08JD2-17U

$386.20

17

BOLT (10X52)

09103-10213

$5.77

18

NUT (M10)

09159-10115

$3.55

19

BOLT (10X58)

09103-10428

$5.07
