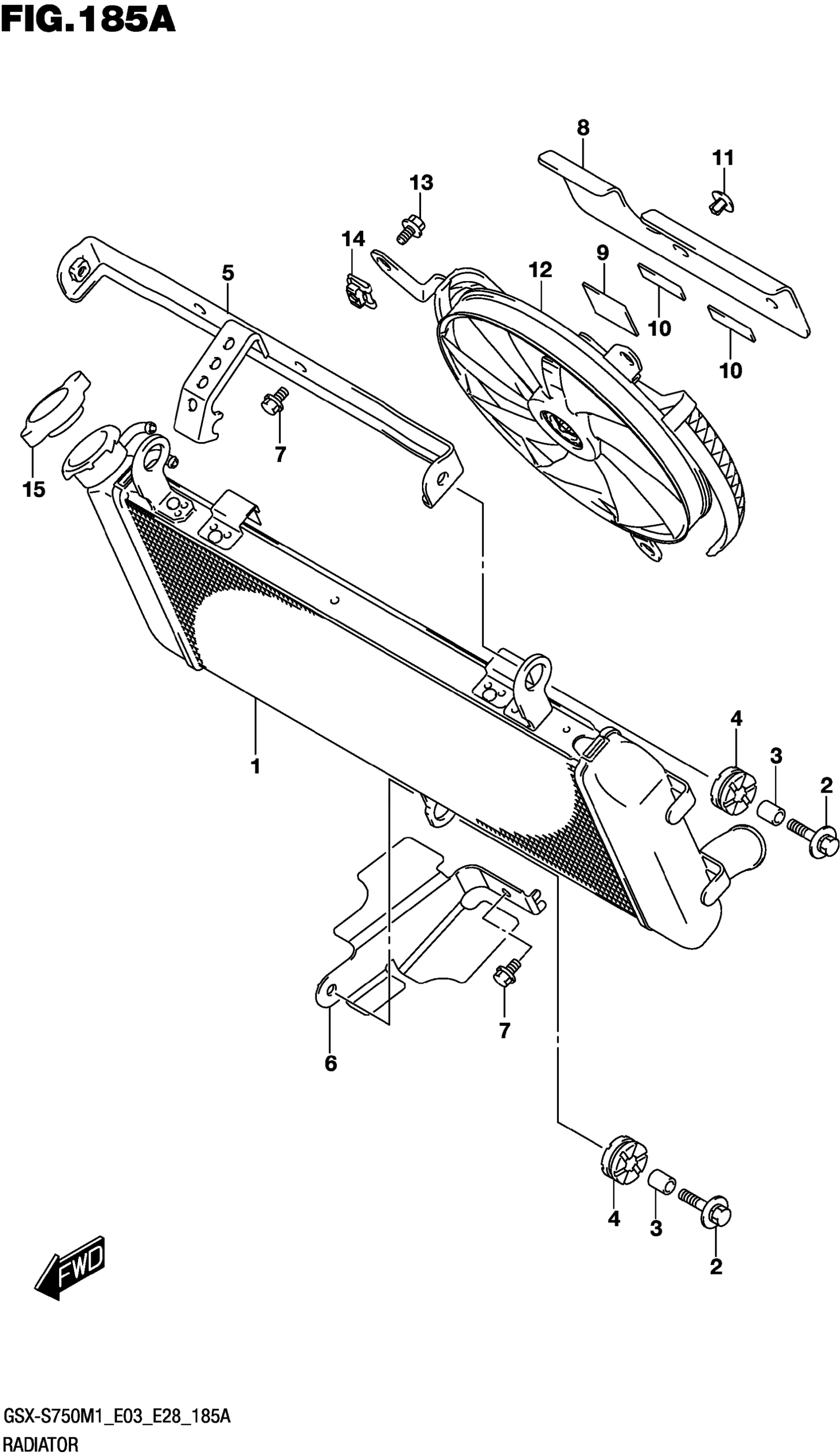

Suzuki GSX-S750AM1 (2021) RADIATOR (GSX-S750A,GSX-S750ZA) Diagram

#

Description
Price

1

RADIATOR ASSY, WATER

17710-13K00

$821.43

2

BOLT (6X25)

09118-06122

$3.90

3

SPACER (6.5X10X12)

09180-06290

$2.35

4

CUSHION

09320-10051

$2.99

5

BRACKET,RADIATOR UPPER

17740-08J10

$22.62

6

BRACKET, RADIATOR LOWER

17750-13K00

$19.32

7

BOLT

01550-0612A

$1.97

8

SHIELD,RADIATOR HEAT

17771-08J00

Unavailable

9

CUSHION (10X30X2)

44894-24A00

$1.72

10

CUSHION,UNDER COWLING NO.1

94476-38C00

Unavailable

11

CLIP This part replaces 09409-06322.

09409-06322-5PK

$3.10

12

FAN ASSY, RADIATOR

17800-13K00

$538.25

13

BOLT, FAN ASSY

17711-08J00

$4.73

14

NUT, FAN ASSY

17712-40F00

$4.68

15

CAP,RADIATOR (1.1)

17730-08J00

$42.50
