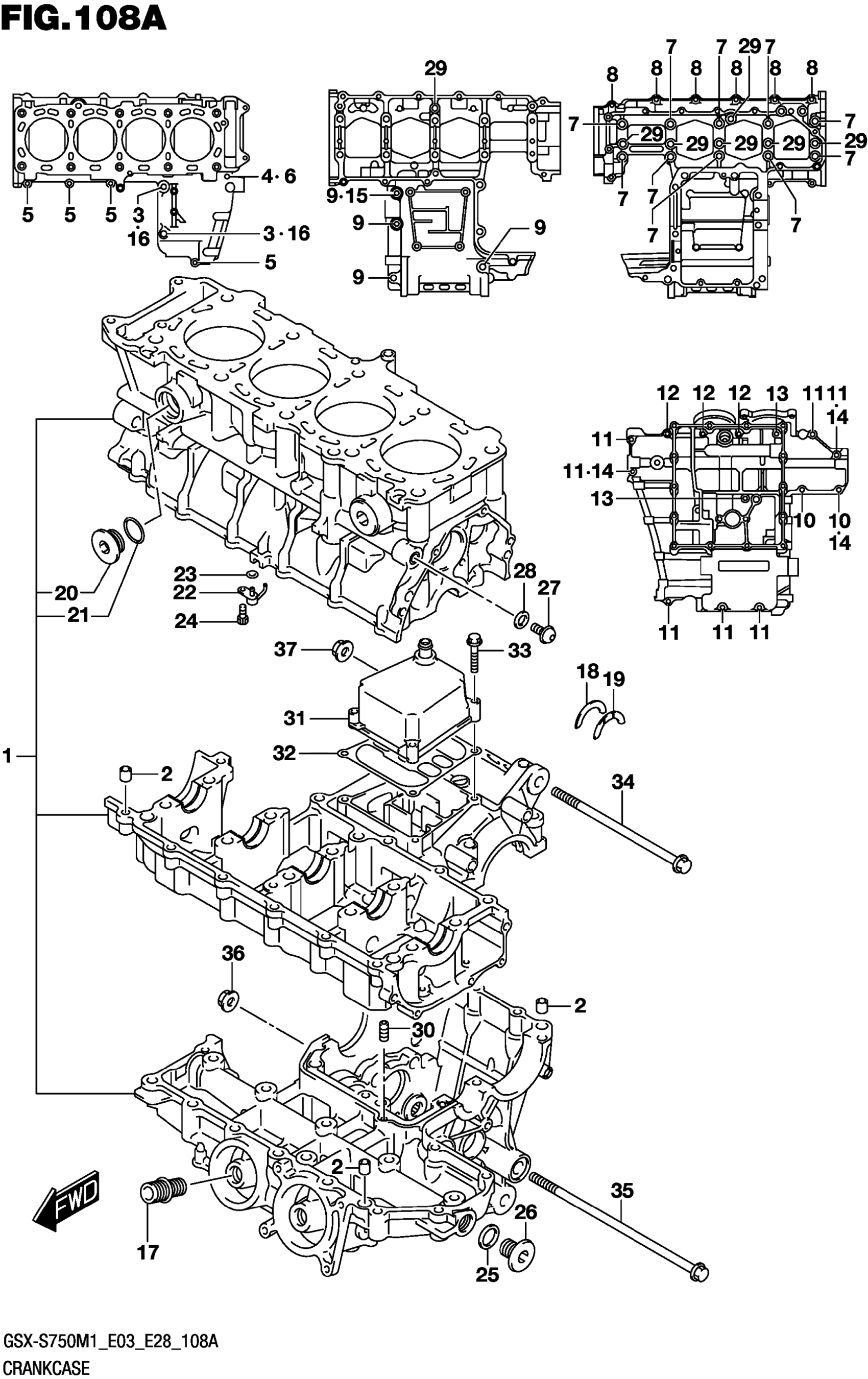

Suzuki GSX-S750AM1 (2021) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET

11300-08821

$2,966.93

2

PIN,CRANKCASE

11319-33E50

$5.32

3

.BOLT (8X120)

09106-08198

Unavailable

4

GASKET (5.8X13X1.2)

09168-06023

$2.35

5

BOLT

01547-0640A

$2.32

6

.BOLT

01547-0680A

$3.30

7

.BOLT (9X95)

09103-09012

$8.76

8

BOLT

01547-0640A

$2.32

9

.BOLT

07120-0865A

$4.77

10

BOLT

01547-0630A

$2.32

11

BOLT

01547-0640A

$2.32

12

BOLT

01547-0660A

$2.82

13

.BOLT

01547-0670A

$2.92

14

GASKET (5.8X13X1.2)

09168-06023

$2.35

15

GASKET (8.2X14X1)

09168-08016

$1.65

16

GASKET (8.2X14X1)

09168-08016

$1.65

17

UNION,OIL STAND

16591-06B01

$7.05

18

.BEARING,CRANK THRUST (GREEN)

12228-17E00-0D0

$9.50

19-1

.BEARING,CRANK THRUST (RED)

12228-17E00-0A0

$11.38

19-2

.BEARING,CRANK THRUST (BLACK)

12228-17E00-0B0

$9.69

19-3

.BEARING,CRANK THRUST (BLUE)

12228-17E00-0C0

$9.69

19-4

.BEARING,CRANK THRUST (GREEN)

12228-17E00-0D0

$9.50

19-5

.BEARING,CRANK THRUST (YELLOW

12228-17E00-0E0

$11.38

19-6

.BEARING,CRANK THRUST (WHITE)

12228-17E00-0F0

$11.60

20

.PLUG,WATER JACKET

11318-35F00

$16.78

21

.O-RING (D:3.1,ID:19.4)

09280-20002

$1.93

22

JET,PISTON COOLING

11390-35F00

$24.30

23

O-RING (D:1.2,ID:4)

09280-04004

$1.91

24

BOLT (6X12)

09106-06075

$2.48

25

GASKET (16X22X2)

09168-16002

$1.91

26

PLUG (16X12)

09248-16013

$4.82

27

PLUG (10X10)

09248-10010

$4.17

28

GASKET (10X14X3.6)

09168-10002

$2.13

29

O-RING (D:1.9,ID:7.8)

09280-08012

$3.68

30

JET (#140)

09493-28012

$16.87

31

COVER,BREATHER

11370-44G00

Unavailable

32

.GASKET, BREATHER COVER

11484-35F00

$4.94

33

BOLT

01547-0635A

$2.30

34

BOLT (10X175)

09103-10458

$17.83

35

BOLT (10X255)

09103-10137

$14.18

36

NUT (M10)

09159-10115

$3.55

37

NUT

09159-10123

Unavailable
