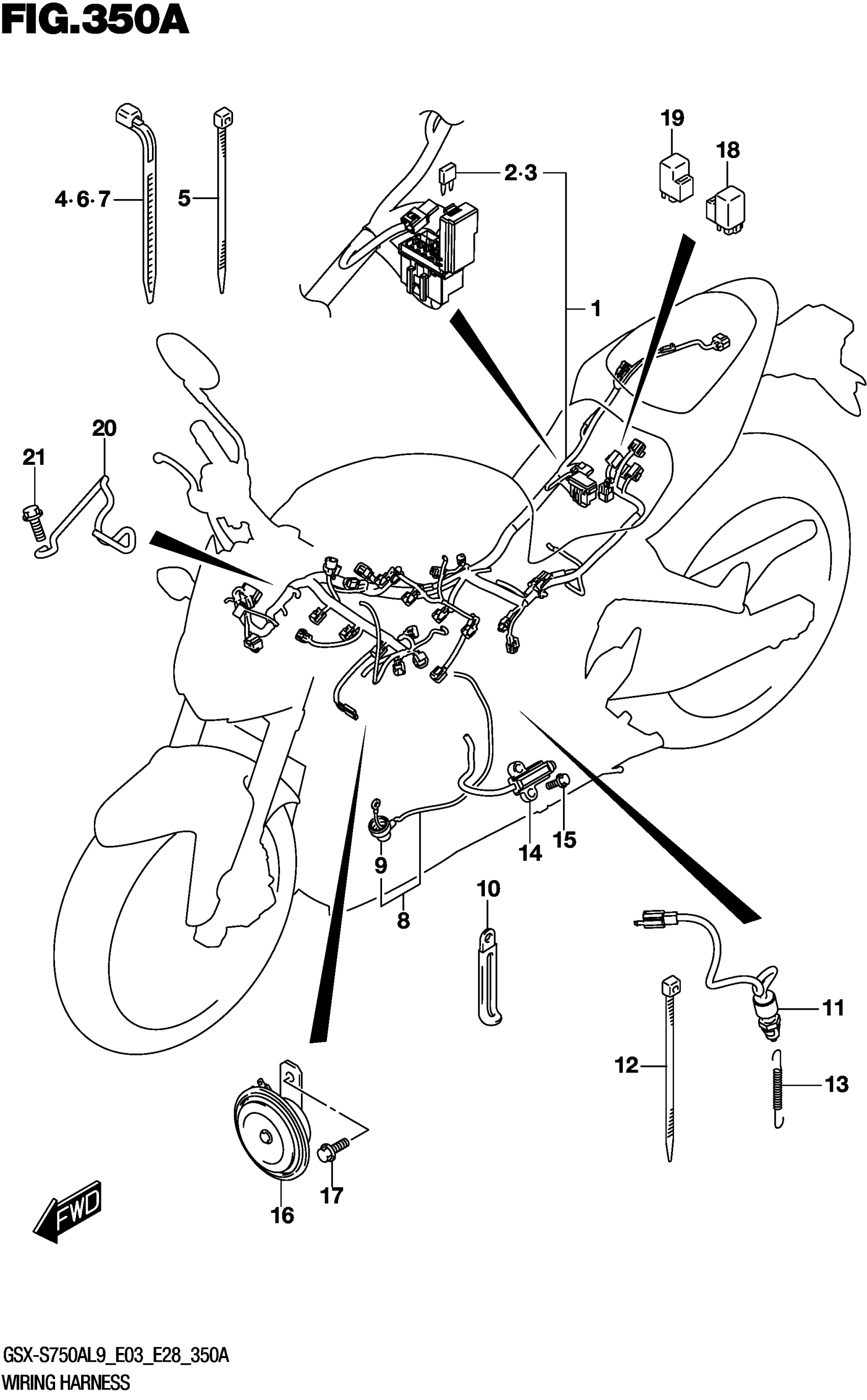

Suzuki GSX-S750AL9 (2019) WIRING HARNESS (GSX-S750ZL9 E03) Diagram

#

Description
Price

1

HARNESS,WIRING This part replaces 36610-13K20.

36610-13K21

$635.07

2

.FUSE (10A)

09481-10501

$2.07

3

.FUSE (15A)

09481-15501

$2.07

4

CLAMP (L:235)

09407-25401

$4.21

5

CLAMP (L:145)

09407-14407

$2.80

6

CLAMP (L:125)

09407-14403

$2.24

7

CLAMP (L:190)

09407-19401

$3.32

8

WIRE, OIL PRESSURE SWITCH LEA

36851-23H01

Unavailable

9

.CAP,OIL PRESSURE SWITCH

36618-31J00

Unavailable

10

CLAMP (L:45)

09404-06429

$1.82

11

SWITCH ASSY,STOP LAMP

37740-45D00

$20.62

12

CLAMP (L:145)

09407-14407

$2.80

13

SPRING

09443-06012

$2.90

14

SWITCH ASSY,SIDE STAND This part replaces 37840-35F00.

37840-35F02

$45.34

15

BOLT (6X20)

01550-0620A

$1.97

16

HORN ASSY

38500-16G01

$98.98

17

BOLT (8X12)

01550-0812A

$2.31

18

RELAY ASSY | FOR FUEL PUMP

38740-24X50

$41.38

19

RELAY ASSY | FOR FAN MOTOR

38740-24X50

$41.38

20

CLAMP,FR BRAKE HOSE

59251-08J00

$15.73

21

BOLT

01547-0616B

$2.43
