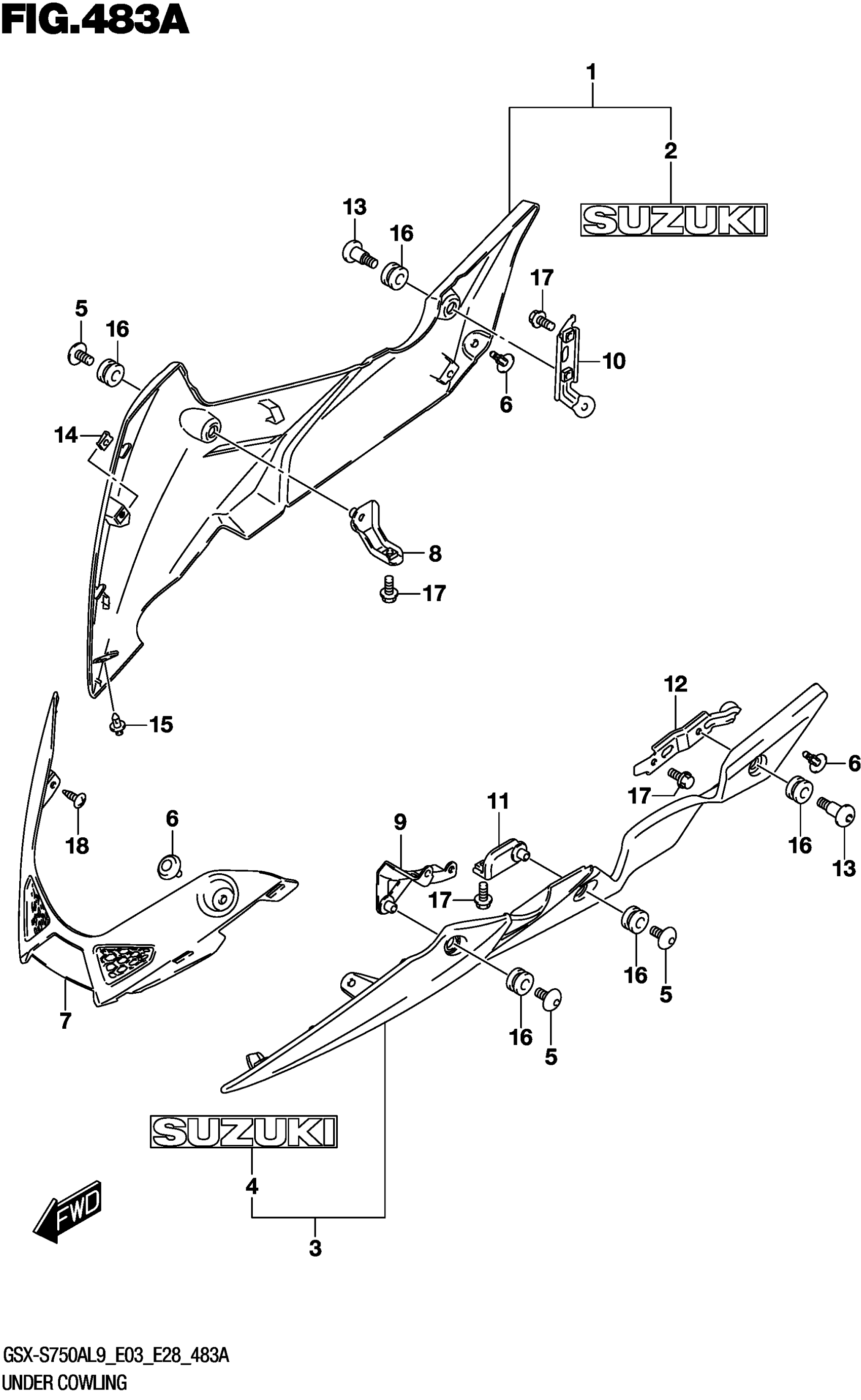

Suzuki GSX-S750AL9 (2019) UNDER COWLING (GSX-S750ZL9 E03) Diagram

Description

Price

COWLING, UNDER RH (BLACK)

94470-13K00-4TX

Unavailable

.EMBLEM, "SUZUKI" (BLUE)

68111-47C10-YSF

$17.87

COWLING, UNDER LH (BLACK)

94480-13K00-4TX

Unavailable

.EMBLEM, "SUZUKI" (BLUE)

68111-47C10-YSF

$17.87

BOLT (6X12)

09106-06136

$5.00

CLIP

94479-35F00

$5.62

COWLING,UNDER CTR

94491-13K00

$7.75

BRACKET,UNDER COWL NO.1 RH

94510-13K01

$11.42

BRACKET,UNDER COWL NO.1 LH

94520-13K00

$13.60

BRACKET,UNDER COWL RR RH

94530-08J00

$10.67

BRACKET,UNDER COWL NO.2 LH

94530-13K00

$10.67

BRACKET,UNDER COWL RR LH

94540-08J00

$10.67

SCREW (6X20)

09139-06190

$4.17

NUT (M5)

09148-05038

$1.97

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

CUSHION (9X18X9.5)

09320-09016

$1.97

BOLT

01550-0612A

$1.97

SCREW

03541-0516B

$1.78
