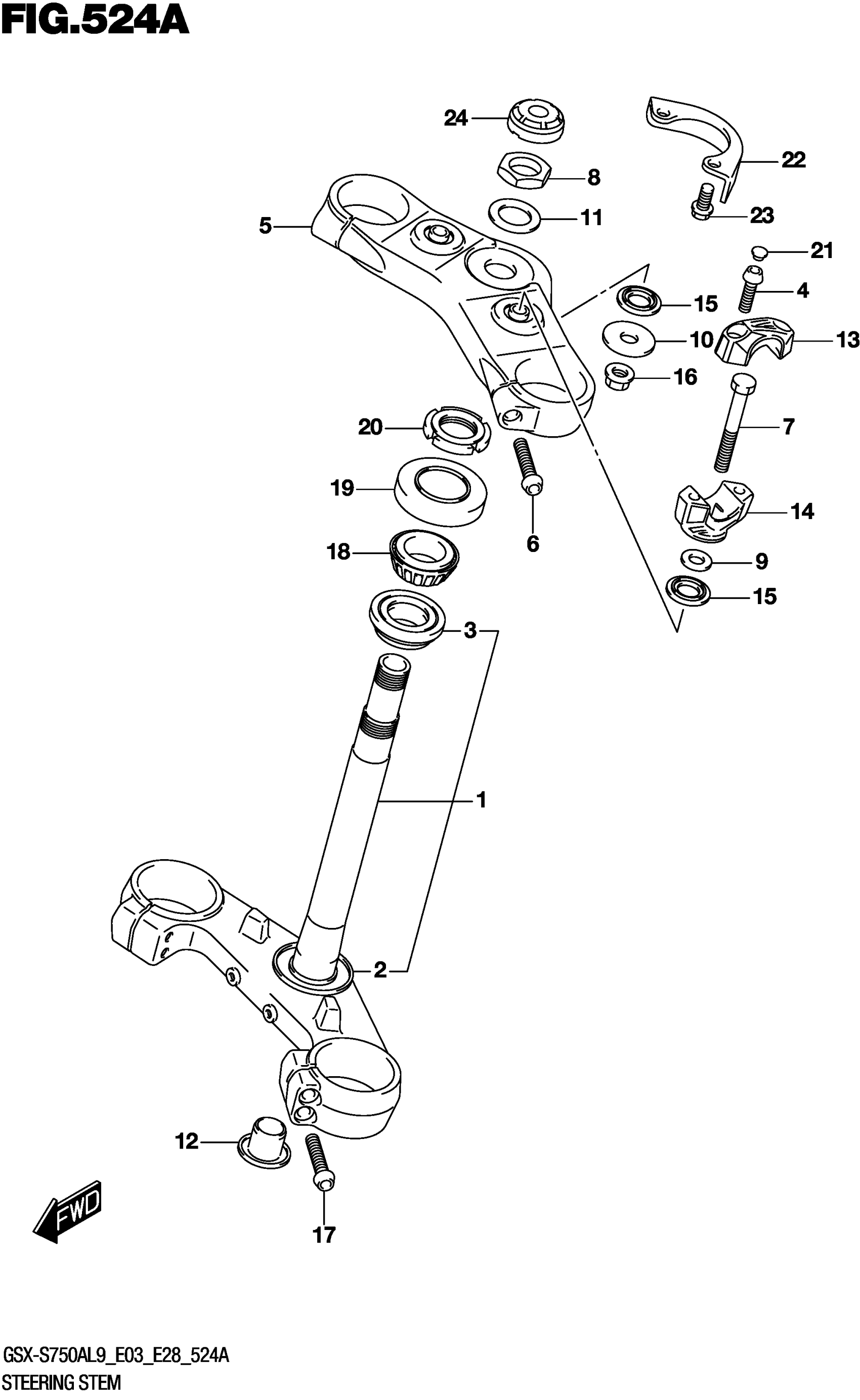

Suzuki GSX-S750AL9 (2019) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER (BLACK)

51410-08J00-291

$604.58

1

BRACKET, UNDER (BLACK)

51410-08J00-291

$604.58

2

.SEAL,STEERING LWR (30.1X56X4

51644-12C00

$9.44

3

.BEARING (30X55X17)

09265-30020

$44.41

4

BOLT, BRACKET UPR

51328-46H00

$3.66

5

BRACKET, UPPER (BLACK)

51311-13K00-291

$337.42

5

BRACKET, UPPER (BLACK)

51311-13K00-291

$337.42

6

BOLT (8X40)

51166-40H20

$6.35

7

BOLT

51321-17H10

$6.22

8

NUT

51353-13K00

$10.67

9

WASHER

51354-17H00

$3.70

10

WASHER

51355-16G00

$5.77

11

WASHER

51356-13K00

$3.08

12

CAP

51482-26F00

$5.15

13

HOLDER, HANDLE UPPER (BLACK)

56211-13K00-291

$130.65

13

HOLDER, HANDLE UPPER (BLACK)

56211-13K00-291

$130.65

14

HOLDER, HANDLE LOWER (BLACK)

56221-13K00-291

$104.43

14

HOLDER, HANDLE LOWER (BLACK)

56221-13K00-291

$104.43

15

HOLDER RUBBER,HANDLE

56245-08J00

$6.34

16

NUT

08319-3110A

$2.73

17

BOLT (8X40)

51166-40H20

$6.35

18

BEARING (25X47X15)

09265-25038

$45.57

19

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

20

NUT,STEERING STEM

51631-31F00

$19.87

21

CAP (OD:10.5)

09250-06015

$2.76

22

PLATE,STEERING LOCK

51911-08J01

$18.53

23

BOLT (8X16)

09103-08351

$3.23

24

CAP,STEERING STEM

51344-13K00

$11.78
