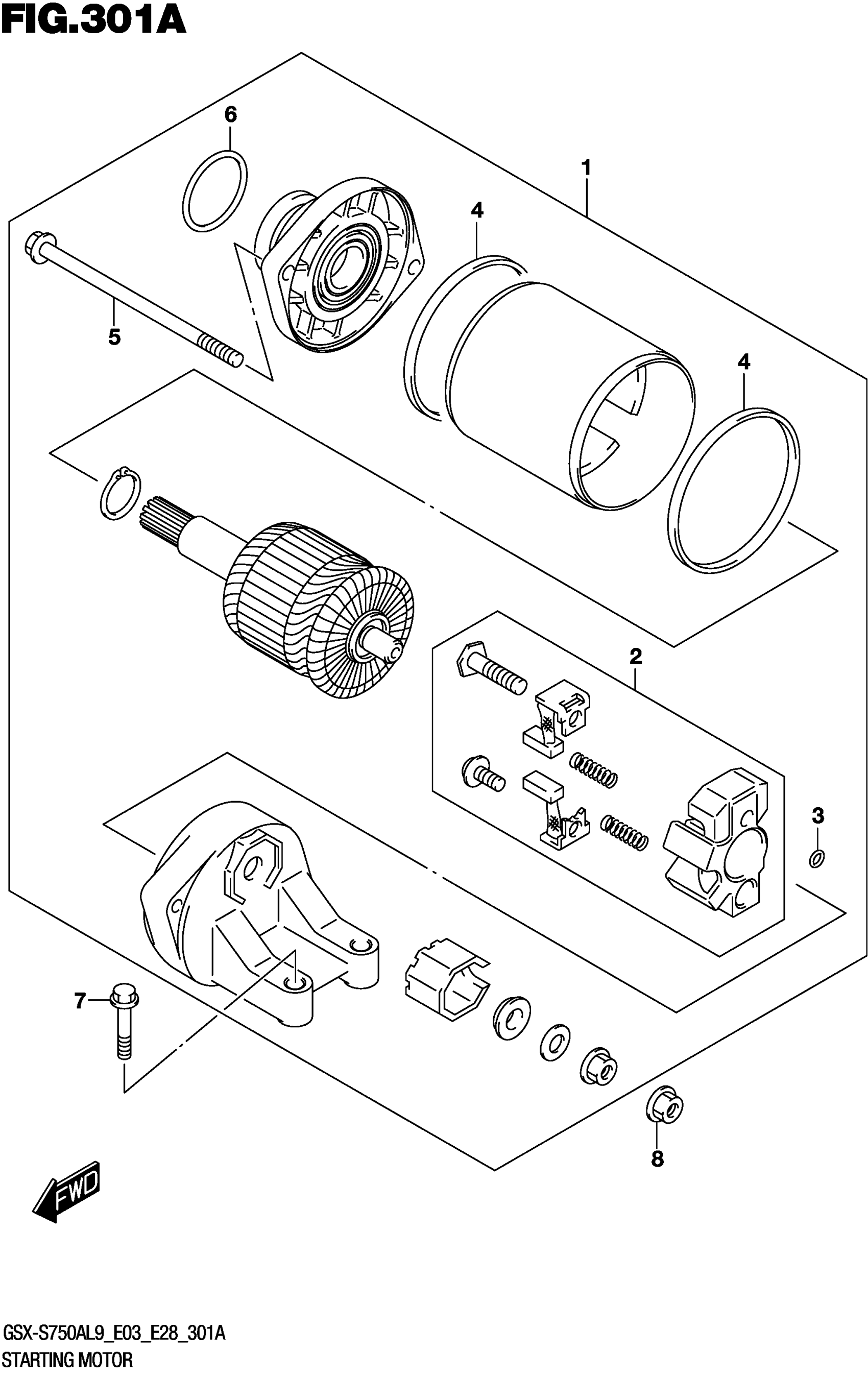

Suzuki GSX-S750AL9 (2019) STARTING MOTOR Diagram

#

Description

Price

1

MOTOR ASSY,STARTING

31100-08J00

$631.43

2

.BRUSH HOLDER SET

31132-38F10

$51.95

3

.O-RING

31143-49040

$3.50

4

.SQUARE RING

31264-38F10

$9.50

5

.BOLT

31280-38F10

Unavailable

6

.O-RING (D:3.1,ID:24.4)

31156-98E00

$3.66

7

BOLT

01547-0625A

$2.01

8

NUT

08361-3506A

$1.81
