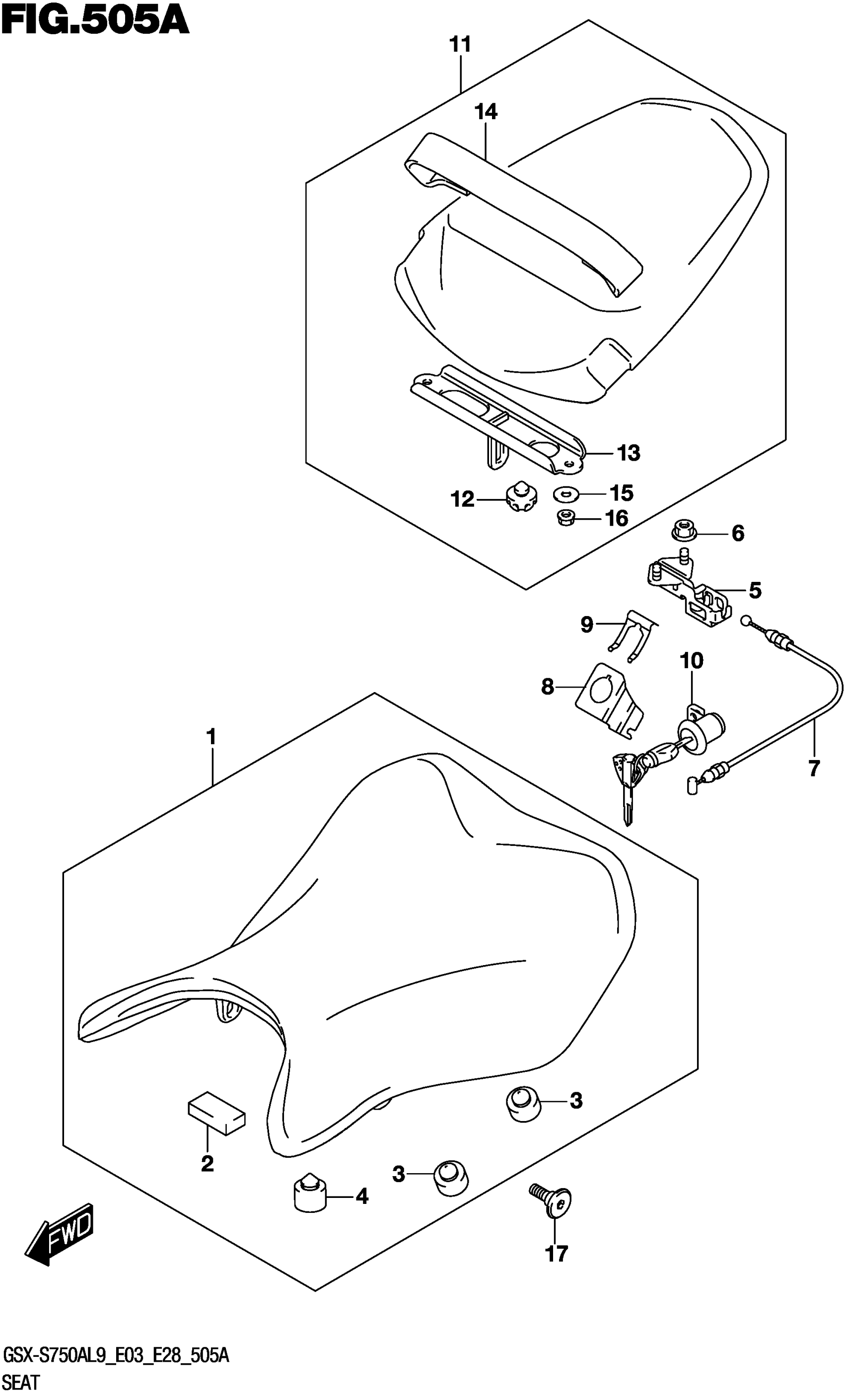

Suzuki GSX-S750AL9 (2019) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLACK) This part replaces 45100-13K01-DW2.

45100-13K02-DW2

$238.95

2

.CUSHION

45149-37H00

$7.77

3

.CUSHION

09321-10033

$6.75

4

.CUSHION

09321-10039

$4.89

5

BRACKET,STRIKER SUPPORT

45220-04K20

$35.98

6

NUT (6X12)

08316-1006A

$2.19

7

CABLE, SEAT LOCK

45280-13K00

$12.60

8

GUIDE,SEAT LOCK CABLE

45288-14F00

$4.91

9

PLATE,SEAT LOCK ASSY

45289-11F00

$5.67

10

LOCK SET,SEAT

95700-14810

$98.21

11

SEAT ASSY,PILLION (BLACK) This part replaces 45300-13K00-P3H.

45300-13K01-P3H

$271.32

12

.CUSHION

45148-20G90

$6.28

13

.STRIKER,SEAT LOCK

45290-17K00

$43.82

14

.BAND, PILLION SEAT GRIP(BLAC

45380-13K00-P3H

Unavailable

15

.WASHER (6.5X16X1)

09160-06129

$2.50

16

NUT

08316-1006B

$2.50

17

BOLT,SEAT (6X20)

45241-17K00

$3.07
