2019 Suzuki GSX-S750AL9 Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 2019 Suzuki GSX-S750AL9, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

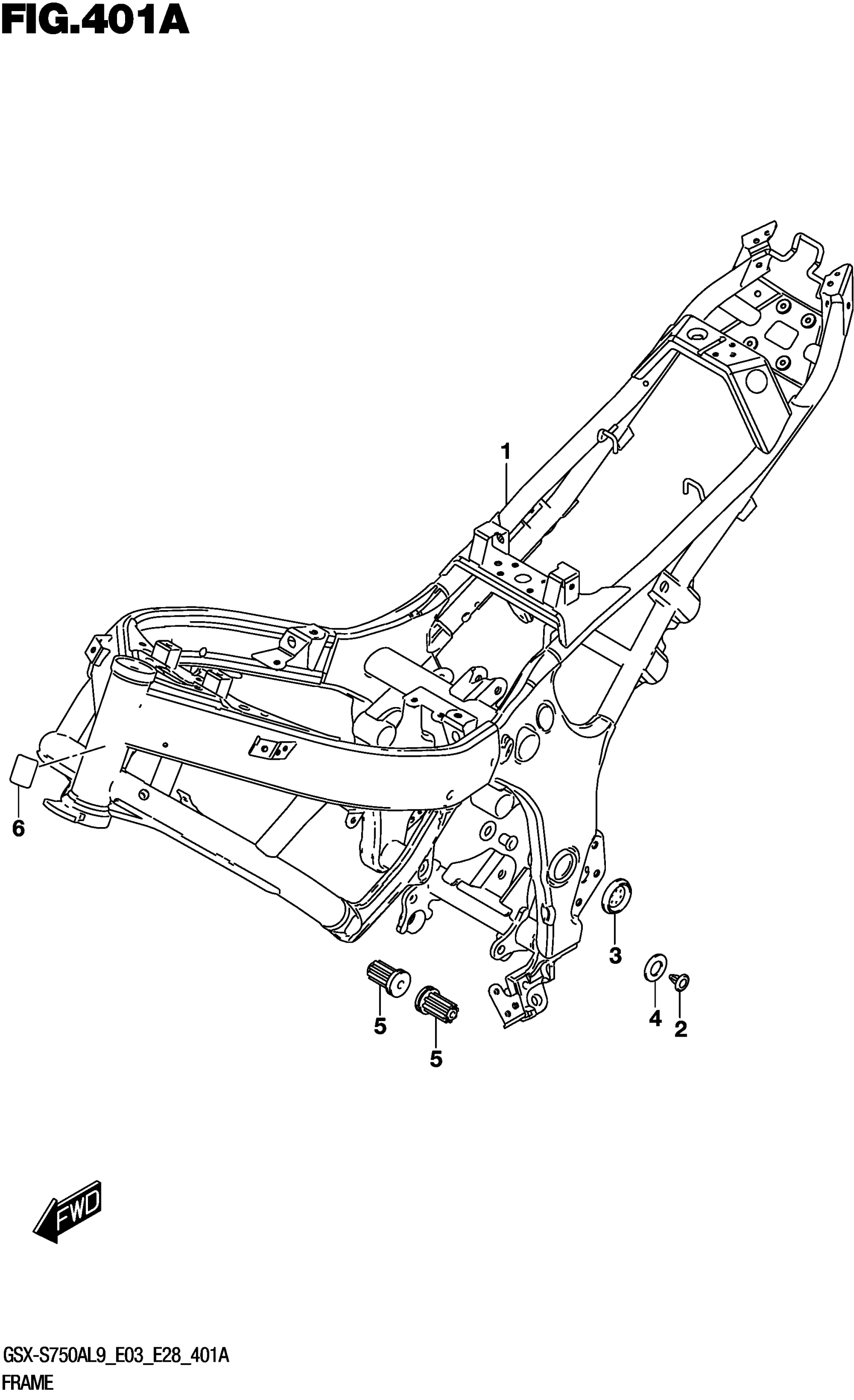

2019 Suzuki GSX-S750AL9 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME (BLACK)

41100-13K00-YAP

1
Out of stock

2

PLUG, TANK RAIL

43585-01H01

2

$4.76

In stock

3

CAP,FRAME PIVOT

43585-46H10

2

$9.60

In stock

4

WASHER (12.6X24X2.2)

09161-12010

2
Out of stock

5

BUSH,ENGINE MOUNTING

41184-08J01

2
Out of stock

6

TAPE,FUEL TANK (30X40X0.2)

45517-16G20

1
Out of stock
