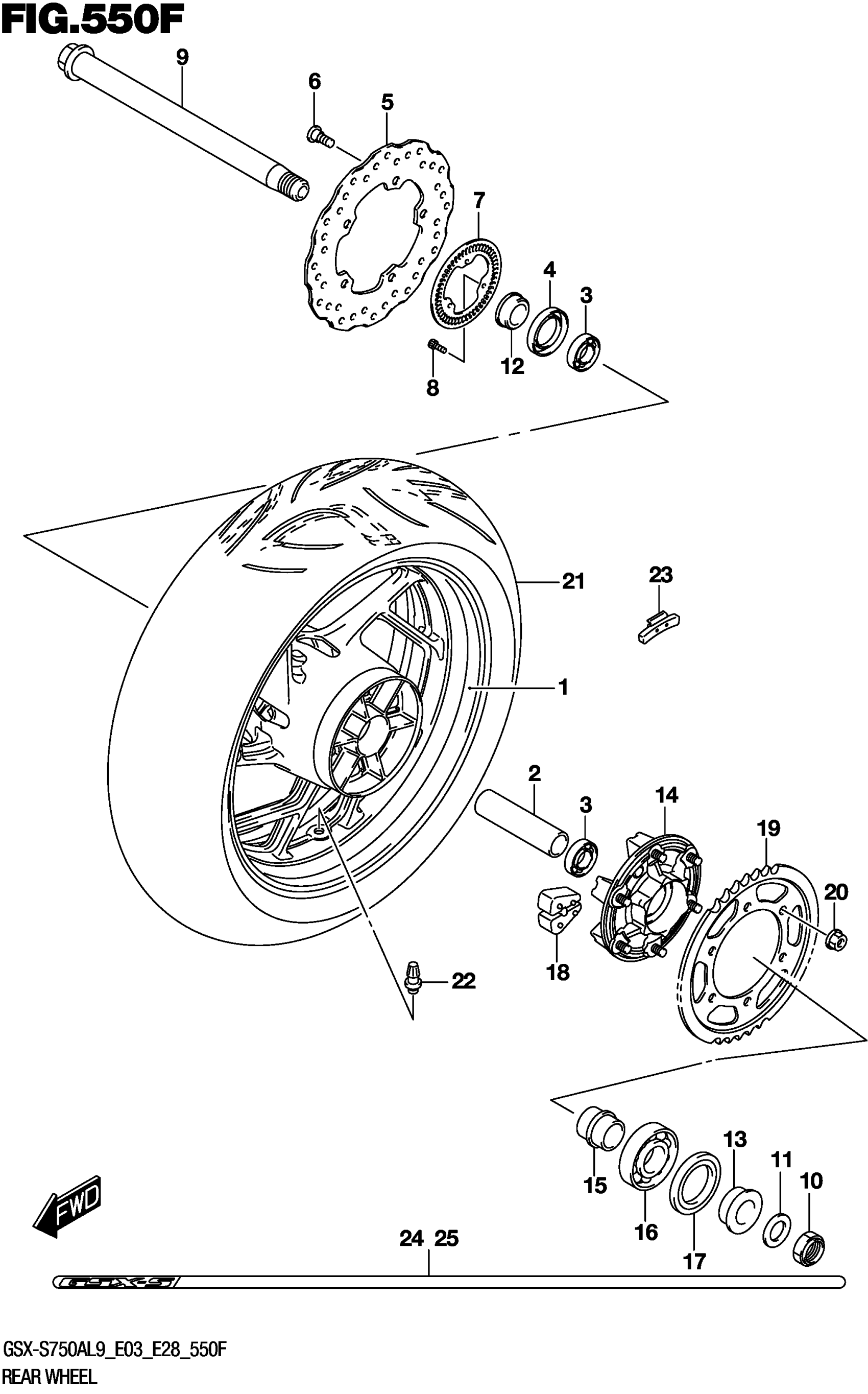

Suzuki GSX-S750AL9 (2019) REAR WHEEL (GSX-S750ZAL9 E28) Diagram

#

Description
Price

1

WHEEL, REAR (17M/CXMT5.50,BLA

64111-13K00-019

$1,128.85

1

WHEEL, REAR (17M/CXMT5.50,BLA

64111-13K00-019

$1,128.85

2

SPACER,RR WHEEL BEARING

64731-44G00

$57.93

3

BEARING (25X52X15)

09262-25061

$29.88

4

SEAL,OIL (37X52X8) This part replaces 09284-37001.

09284-37002

$7.19

5

DISC, REAR BRAKE

69211-13K00

$121.25

6

BOLT (8X21)

09106-08160

$3.22

7

RING,SPEED SENSOR FR (50T)

54162-27G00

$158.17

8

BOLT

07130-0512A

$2.19

9

AXLE, REAR

64711-13K00

$78.63

10

NUT

64721-13K00

$11.54

11

WASHER (22X46X3)

09160-22086

$6.02

12

SPACER,RR AXLE,R

64741-44G00

$33.72

13

SPACER,REAR AXLE LH

64751-08J00

$37.58

14

DRUM,RR SPROCKET

64610-47H00

$349.18

15

RETAINER,RR SPROCKET DRUM

64733-44G00

$27.45

16

BEARING (32X65X17) This part replaces 09262-32022.

09262-32024

$35.55

17

SEAL,OIL (39X65X7)

09285-39001

$9.58

18

ABSORBER,RR HUB SHOCK

64651-47H10

$28.80

19

SPROCKET,REAR (43T-525)

64511-14J00

$154.63

20

NUT

08319-3110A

$2.73

21

TIRE, REAR (180/55ZR17M/C 73W | BRIDGESTONE

65110-13K00

$508.62

21

TIRE, REAR (180/55ZR17M/C 73W | BATTLAX HYPERSPORT S21R G

65110-13K00

$508.62

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.10

23-1

BALANCER,WHEEL (10G) | 10G

55411-22H00

$9.70

23-2

BALANCER,WHEEL (20G) | 20G

55412-22H00

$11.37

23-3

BALANCER,WHEEL (30G) | 30G

55413-22H00

$12.93

24

TAPE, WHEEL RH

68251-04K00-BUM

$68.72

25

TAPE, WHEEL LH

68252-04K00-BUM

$68.72
