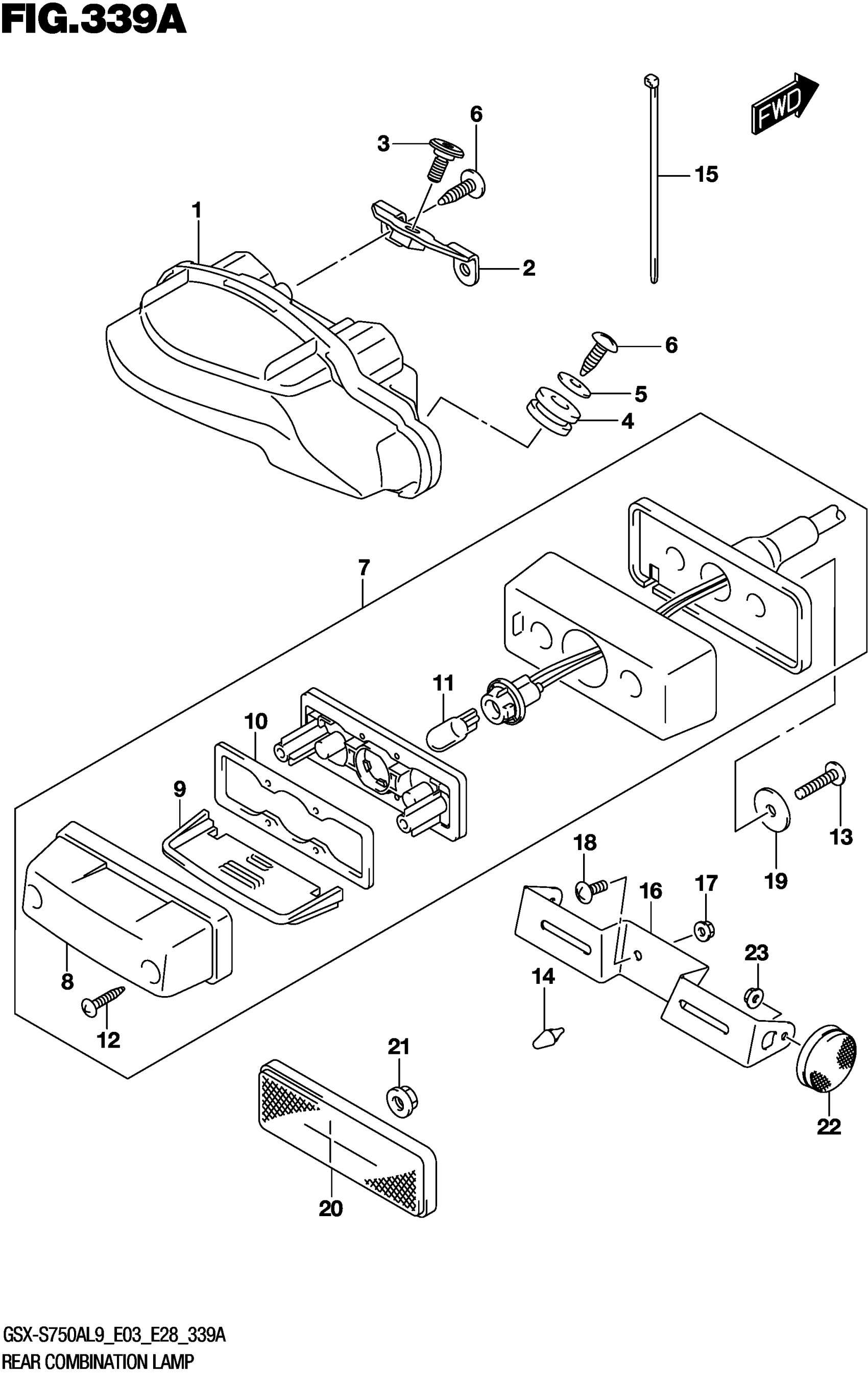

Suzuki GSX-S750AL9 (2019) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMBINATION

35710-04K01

$224.50

2

BRACKET, REAR COMBINATION LAM

35726-13K00

$5.90

3

SCREW (5X13)

09139-05092

$2.25

4

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

5

WASHER (5.5X16X1.2)

09160-05037

$1.49

6

SCREW

03541-0516A

$1.49

7

LAMP ASSY,LICENSE

35910-16G90

$79.98

8

.COVER

35917-16G00

$12.40

9

.LENS

35912-16G01

$12.27

10

.GASKET

35913-16G00

Unavailable

11

.BULB (12V5W)

09471-12216

$5.36

12

.SCREW

03211-0416A

$1.49

13

SCREW

03541-0540A

$1.49

14

CUSHION This part replaces 09321-06028.

09321-06038

$1.88

15

CLAMP (L:145)

09407-14407

$3.57

16

BRACKET,LICENSE PLATE

35927-44H30

$18.42

17

NUT (M6)

09159-06096

$3.15

18

SCREW

02142-0616A

$1.49

19

WASHER (5.5X20X1.2)

09160-05501

$1.84

20

REFLECTOR ASSY,RR

35970-07F01

$20.88

21

NUT

08316-1005A

$2.19

22

REFLECTOR ASSY,REAR SIDE

35970-13K00

$16.28

23

NUT

08316-1005A

$2.19
