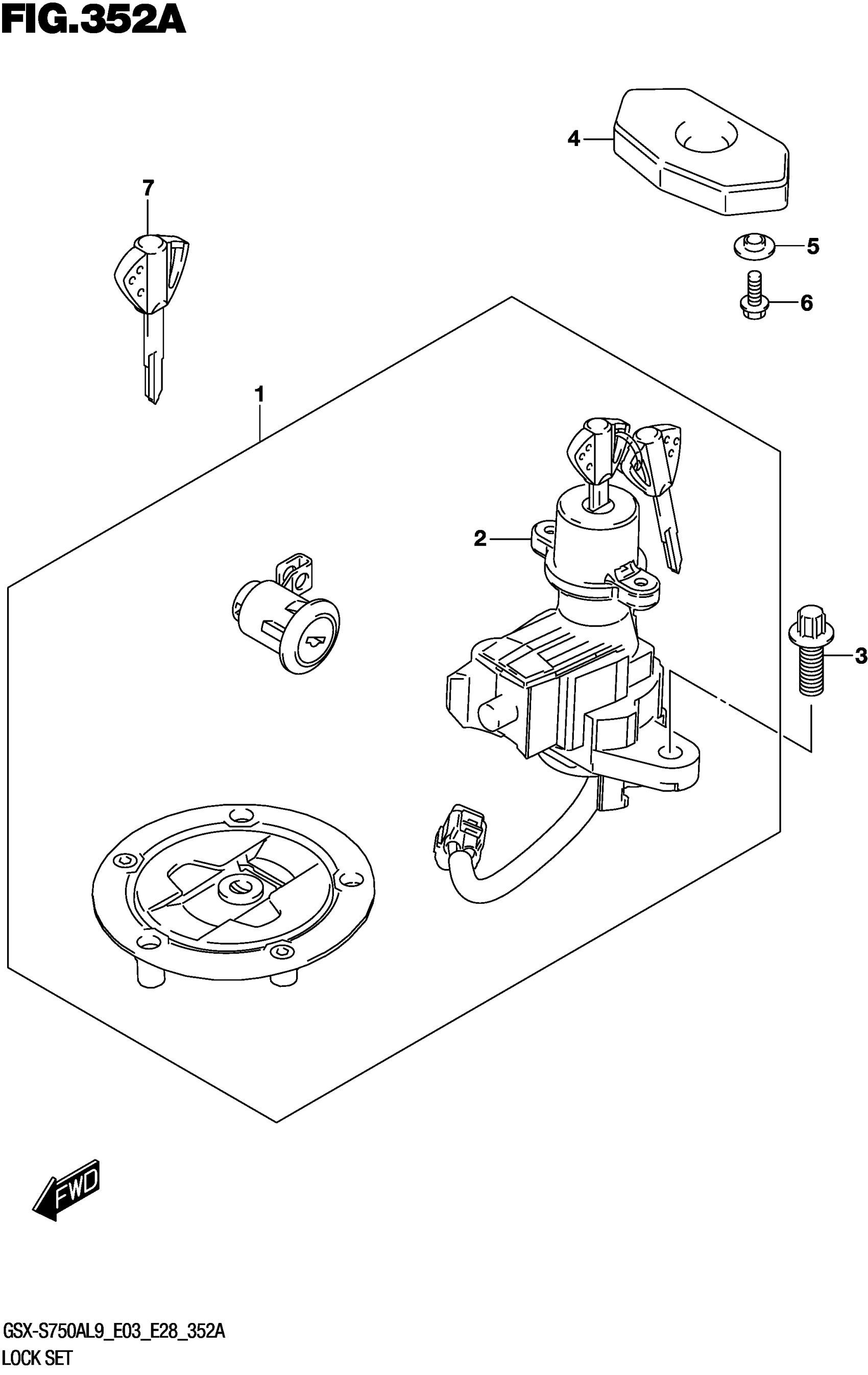

Suzuki GSX-S750AL9 (2019) LOCK SET Diagram

#

Description

Price

1

LOCK SET This part replaces 37000-13850.

37000-13851

$259.25

2

LOCK ASSY,STEER This part replaces 37100-13K10.

37100-13K11

$212.18

3

BOLT, STEERING LOCK (8X20)

37152-17K00

$3.68

4

COVER,STEERING LOCK This part replaces 37180-15H01.

37180-15HA0

$23.74

5

WASHER

09169-05024

$2.06

6

BOLT

01547-0512A

$1.49

7

KEY,BLANK | OPT

37146-13K00

$51.62
