Description

Price

1

COVER, HEADLAMP FRONT

51831-13K00

$37.03

2-1

COVER, HEADLAMP (BLUE)

51820-13K00-YSF

Unavailable

2-2

COVER, HEADLAMP (WHITE)

51820-13K00-YWW

$285.20

3-1

.TAPE SET, HEAD LAMP COVER | FOR YSF

68210-13K00-A3F

$29.77

3-2

.TAPE SET, HEAD LAMP COVER | FOR YWW

68210-13K00-BVC

$29.77

4

COVER, METER

51811-13K00

$34.31

5

CUSHION, METER BRACE This part replaces 51831-30H00.

51831-30H10

$2.94

6

COVER, HEADLAMP REAR

51841-13K00

$39.72

7

BRACE, METER

51800-13K00

$77.67

8

TAPE (6X25X0.13)

94443-06G00

$3.25

9

CUSHION (10X30X6)

33652-47F00

$3.70

10

BOLT (6X12)

09111-06107

$2.60

11

SCREW (5X13)

09139-05503

$2.69

12

NUT

09148-06020

$4.38

13

WASHER (6.3X17X1.6)

09169-06062

$2.50

14

CUSHION (9X18X10)

09320-09501

$2.03

15

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

16

CLIP (10.5X14.3)

09409-08326

$2.48

17

BOLT (6X20)

01550-0620A

$1.97

18

SCREW

03541-0516A

$1.49

19

SHIELD, HEADLAMP COVER HEAT

51822-13K00

$8.93

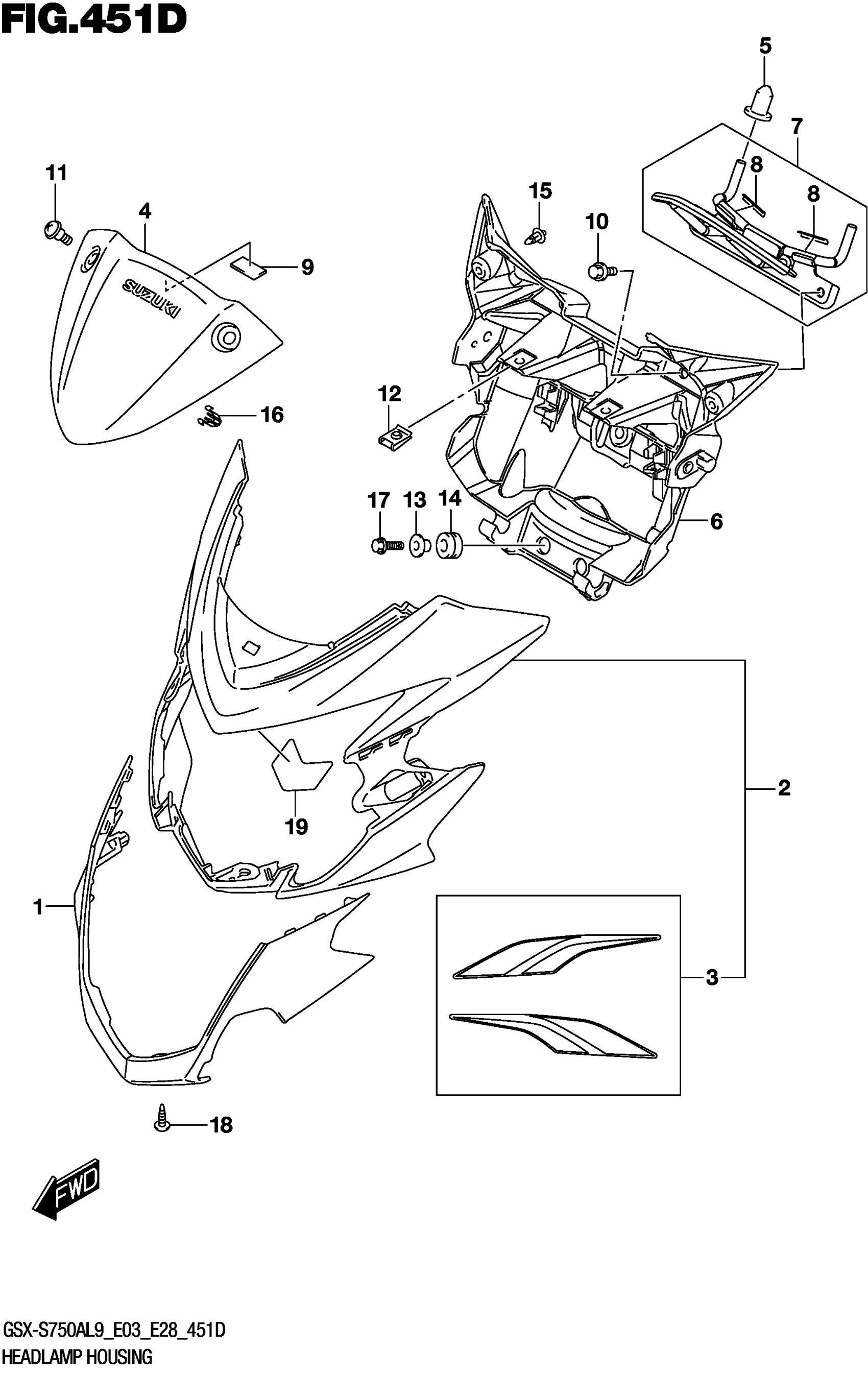

Suzuki GSX-S750AL9 (2019) HEADLAMP HOUSING (GSX-S750YAL9 E28) Diagram
