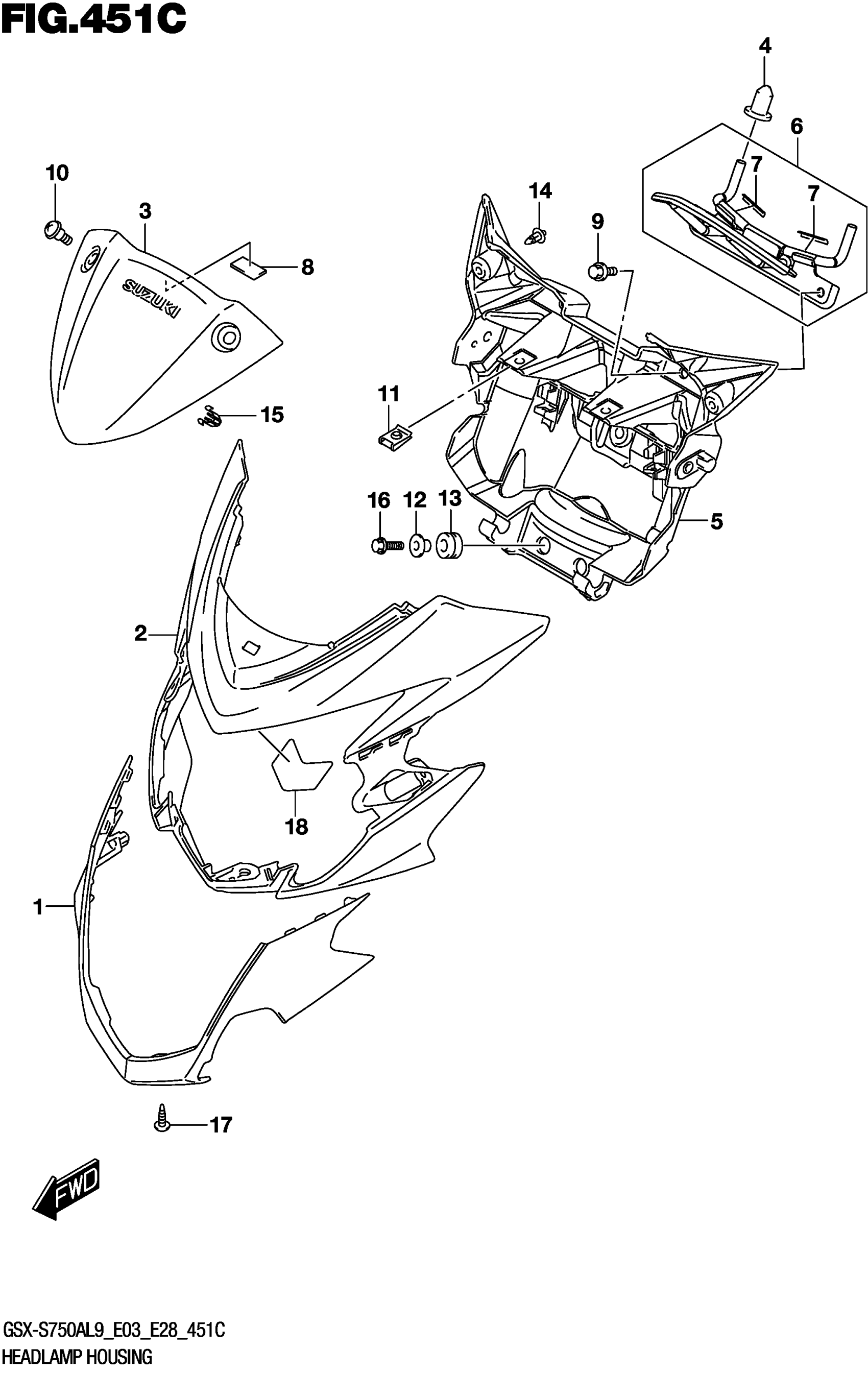

Suzuki GSX-S750AL9 (2019) HEADLAMP HOUSING (GSX-S750AL9 E28) Diagram

Description

Price

COVER, HEADLAMP FRONT

51831-13K00

$37.03

COVER, HEADLAMP (BLUE)

51821-13K00-YSF

$228.97

COVER, METER

51811-13K00

$34.31

CUSHION, METER BRACE This part replaces 51831-30H00.

51831-30H10

$2.94

COVER, HEADLAMP REAR

51841-13K00

$39.72

BRACE, METER

51800-13K00

$77.67

TAPE (6X25X0.13)

94443-06G00

$3.25

CUSHION (10X30X6)

33652-47F00

$3.70

BOLT (6X12)

09111-06107

$2.60

SCREW (5X13)

09139-05503

$2.69

NUT

09148-06020

$4.38

WASHER (6.3X17X1.6)

09169-06062

$2.50

CUSHION (9X18X10)

09320-09501

$2.03

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

CLIP (10.5X14.3)

09409-08326

$2.48

BOLT (6X20)

01550-0620A

$1.97

SCREW

03541-0516A

$1.49

SHIELD, HEADLAMP COVER HEAT

51822-13K00

$8.93
