Description

Price

1

HEADLAMP ASSY This part replaces 35100-13K00.

35100-13K10

$381.52

2

.COVER, SOCKET

35152-13K00

$22.48

3

.CORD ASSY

35171-13K00

$41.92

4

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$25.15

5

.BULB (12V5W)

09471-12216

$5.36

6

CUSHION,FUEL TANK COVER This part replaces 44294-43H00.

44294-43H11

$2.30

7

CUSHION,HEADLAMP BRACE

51831-21D00

$4.58

8

SCREW

03541-0516A

$1.49

9

SCREW (6X20)

09139-06126

$4.04

10

CUSHION (9X18X10)

09320-09501

$2.03

11

REFLEX REFLECTOR ASSY,FR SIDE

35950-13K01

$12.46

12

BOLT

09119-06109

$13.28

13

WASHER (8.5X18X1.0)

09160-08043

$1.83

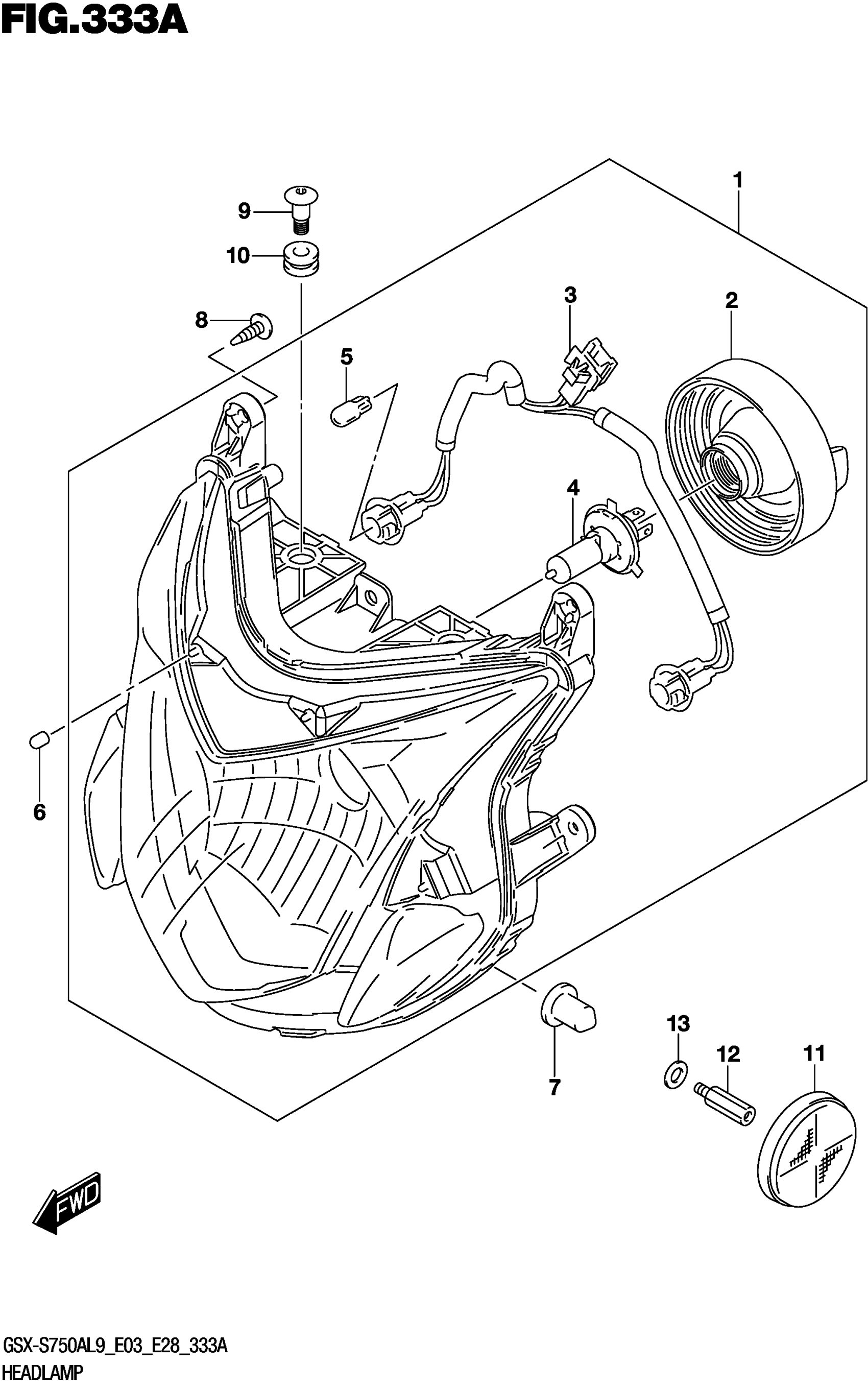

Suzuki GSX-S750AL9 (2019) HEADLAMP Diagram
