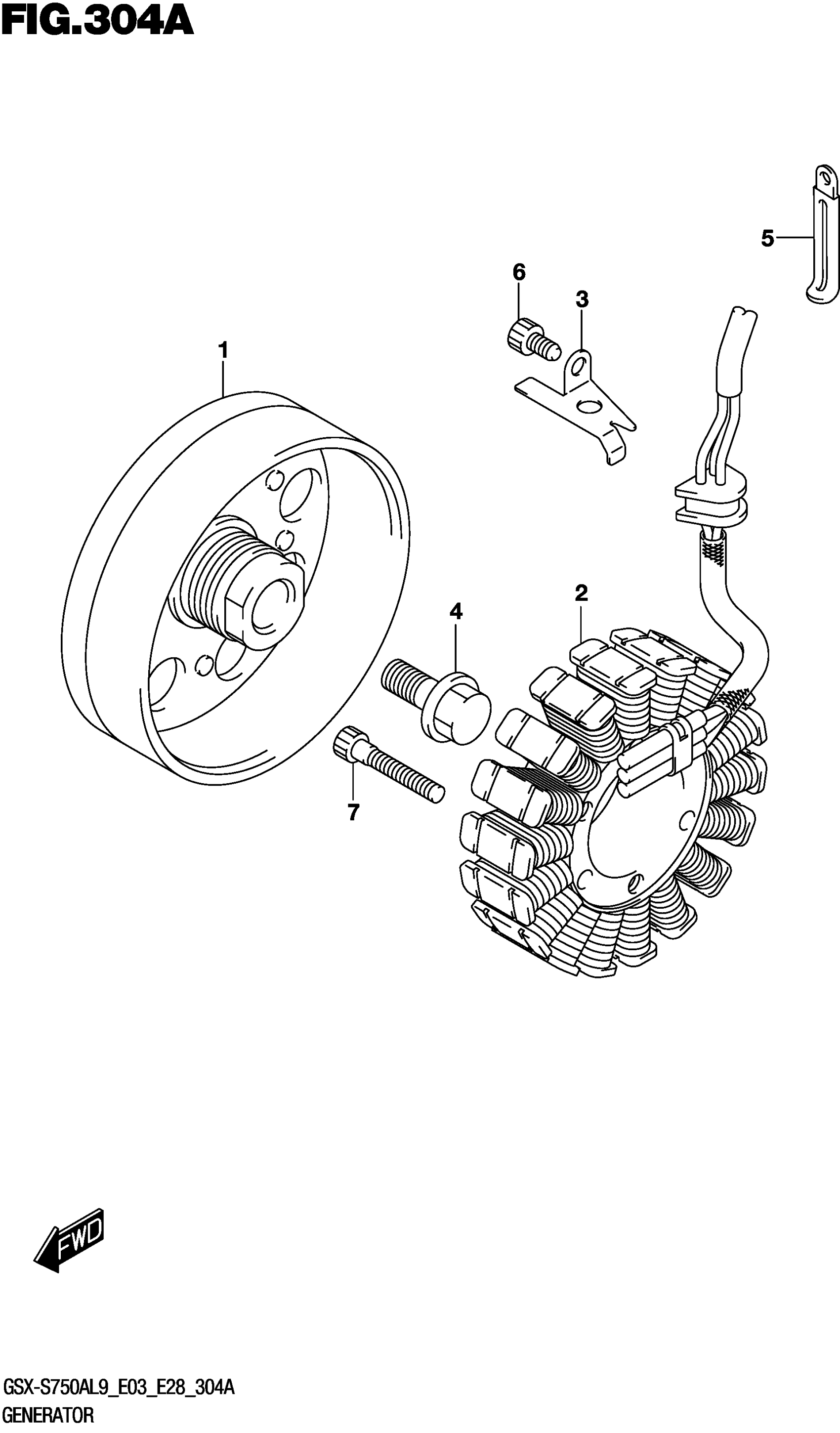

Suzuki GSX-S750AL9 (2019) GENERATOR Diagram

#

Description

Price

1

ROTOR ASSY

31402-08J00

$601.45

2

STATOR ASSY

31401-29G20

$356.03

3

CLAMP, MAGNETO LEAD

32371-33E00

$5.52

4

BOLT (12X23)

09103-12005

$7.05

5

CLAMP (L:45)

09404-06429

$1.83

6

BOLT

07130-0612A

$2.50

7

BOLT

07130-0635A

$3.16
