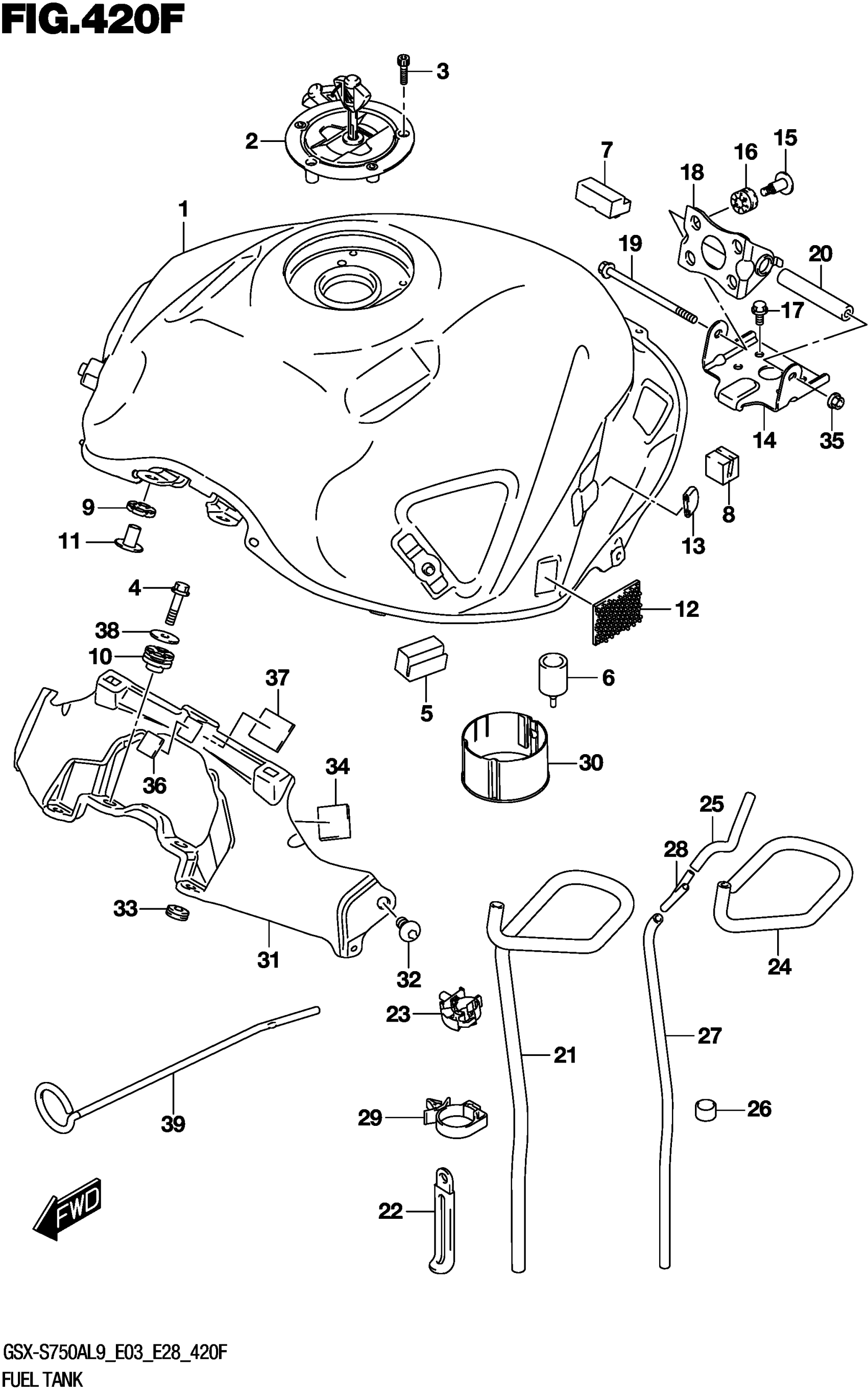

Suzuki GSX-S750AL9 (2019) FUEL TANK (GSX-S750ZAL9 E28) Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK)

44100-13K00-YKV

$1,244.48

2

CAP SET,FUEL TANK FILLER

44200-17820

$242.68

3

BOLT,FUEL TANK FILLER CAP

44244-11J00

$3.76

4

BOLT

07120-0630A

$4.00

5

CUSHION, FUEL TANK SIDE This part replaces 44541-08J00.

44541-08J01

$6.15

6

CUSHION,FUEL TANK RR

44542-41G00

$7.04

7

CUSHION, FUEL TANK REAR

44543-13K00

$11.38

8

CUSHION, FUEL TANK REAR

44544-13K00

$11.38

9

CUSHION, FUEL TANK FR LWR

44511-13K00

$6.75

10

CUSHION, FUEL TANK FR UPR

44512-13K00

$16.70

11

SPACER,FUEL TANK FRONT

44512-17K00

$6.75

12

FASTENER (33X25X2.6)

44572-13G00

$10.13

13

CUSHION,FUEL TANK COVER SIDE This part replaces 44542-08J00.

44542-08J01

$4.12

14

BRACKET, FUEL TANK RR NO.2

44551-13K00

Unavailable

15

SCREW (6X24)

09139-06203

Unavailable

16

CUSHION (8X18X16)

09320-08089

Unavailable

17

BOLT

01550-0612A

$1.97

18

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

19

BOLT (6X100)

09106-06135

$6.02

20

SPACER,FUEL TANK RR

44561-18G00

$15.52

21

HOSE, FUEL TANK DRAIN

44423-13K00

$30.60

22

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

23

CLAMP

09403-18307

$3.38

24

HOSE,FUEL TANK BRTHR NO.1

44424-13K00

Unavailable

25

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$15.48

26

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

27

HOSE (5X8.2X360)

09352-50005-360

$8.38

28

3 WAY

09367-06007

$3.17

29

CLAMP

09403-18409

$2.40

30

VESSEL,FUEL TANK INNER

44121-17K01

$18.47

31

BRACKET, FUEL TANK FRONT

44521-13K00

$49.77

32

BOLT (6X16)

09113-06013

$2.43

33

CUSHION (6X18X6)

09320-06504

$4.47

34

CUSHION (20X30X2)

44556-33H00

$7.01

35

NUT

08319-3106A

$2.01

36

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

$1.73

37

FASTENER (33X25X2.6)

44572-13G00

$10.13

38

WASHER (6.5X24X1.6)

09160-06134

$1.89

39

STAY,FUEL TANK | OPT

44574-16G00

$30.17
