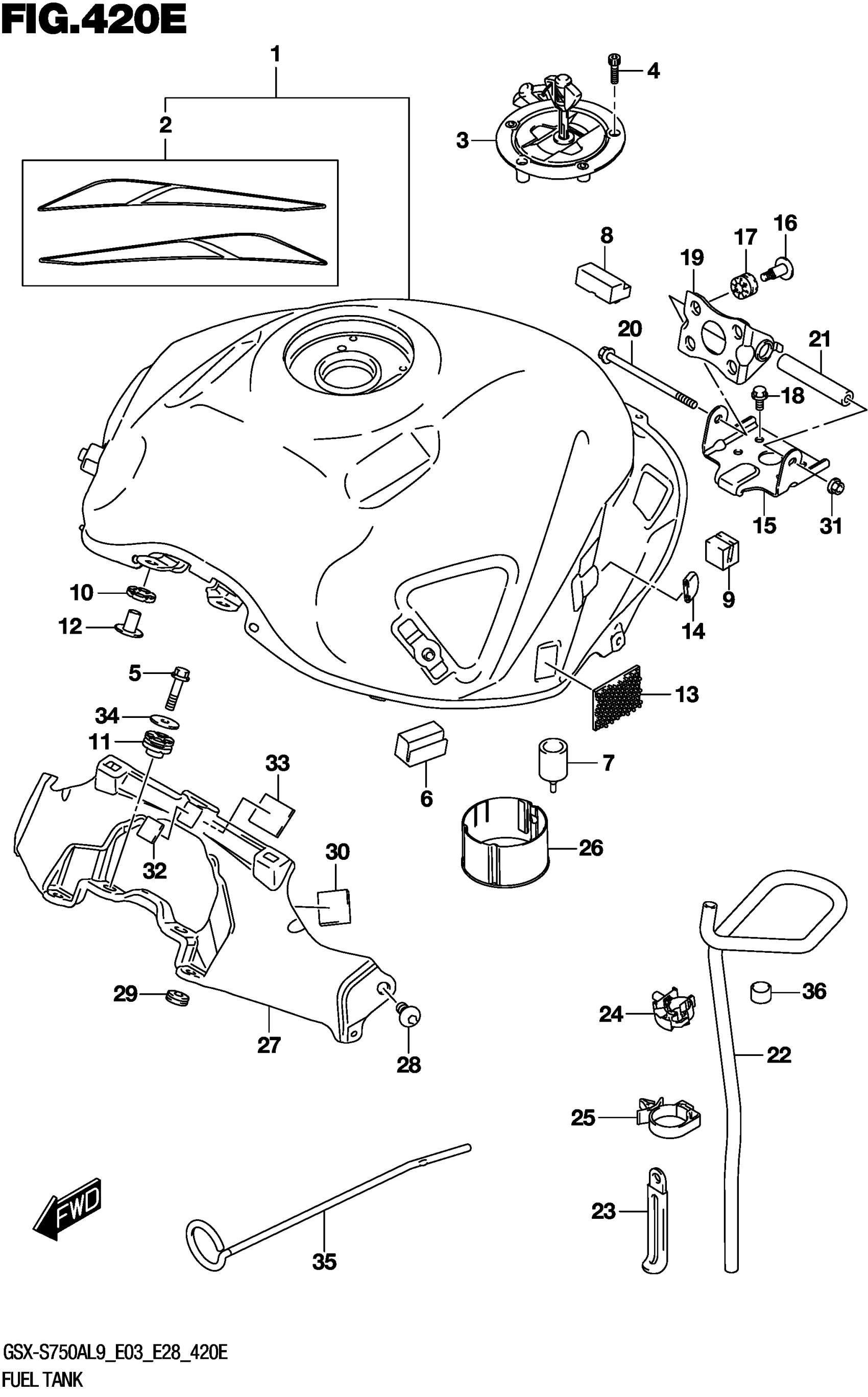

Suzuki GSX-S750AL9 (2019) FUEL TANK (GSX-S750YAL9 E33) Diagram

#

Description
Price

1-1

TANK ASSY, FUEL (BLUE)

44100-13K30-YSF

Unavailable

1-2

TANK ASSY, FUEL (WHITE)

44100-13K30-YWW

$1,138.13

2-1

.TAPE SET, FUEL TANK | FOR YSF

68110-13K00-A3F

$51.13

2-2

.TAPE SET, FUEL TANK | FOR YWW

68110-13K00-BVC

$51.13

3

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

4

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

5

BOLT

07120-0630A

$3.58

6

CUSHION, FUEL TANK SIDE This part replaces 44541-08J00.

44541-08J01

$5.45

7

CUSHION,FUEL TANK RR

44542-41G00

$7.69

8

CUSHION, FUEL TANK REAR

44543-13K00

$10.08

9

CUSHION, FUEL TANK REAR

44544-13K00

$10.08

10

CUSHION, FUEL TANK FR LWR

44511-13K00

$5.98

11

CUSHION, FUEL TANK FR UPR

44512-13K00

$14.80

12

SPACER,FUEL TANK FRONT

44512-17K00

$5.98

13

FASTENER (33X25X2.6)

44572-13G00

$11.07

14

CUSHION,FUEL TANK COVER SIDE This part replaces 44542-08J00.

44542-08J01

$3.65

15

BRACKET, FUEL TANK RR NO.2

44551-13K00

Unavailable

16

SCREW (6X24)

09139-06203

Unavailable

17

CUSHION (8X18X16)

09320-08089

Unavailable

18

BOLT

01550-0612A

$1.97

19

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

20

BOLT (6X100)

09106-06135

$5.53

21

SPACER,FUEL TANK RR

44561-18G00

$16.96

22

HOSE, FUEL TANK DRAIN

44423-13K00

$27.12

23

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

24

CLAMP

09403-18307

$3.03

25

CLAMP

09403-18409

$2.22

26

VESSEL,FUEL TANK INNER

44121-17K01

$16.35

27

BRACKET, FUEL TANK FRONT

44521-13K00

$44.08

28

BOLT (6X16)

09113-06013

$2.23

29

CUSHION (6X18X6)

09320-06504

$4.96

30

CUSHION (20X30X2)

44556-33H00

$7.66

31

NUT

08319-3106A

$2.03

32

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

$2.48

33

FASTENER (33X25X2.6)

44572-13G00

$11.07

34

WASHER (6.5X24X1.6)

09160-06134

$1.91

35

STAY,FUEL TANK | OPT

44574-16G00

$26.72

36

HOSE | L:600->10 This part replaces 09352-11153-600.

09352-11154-600

$13.05
