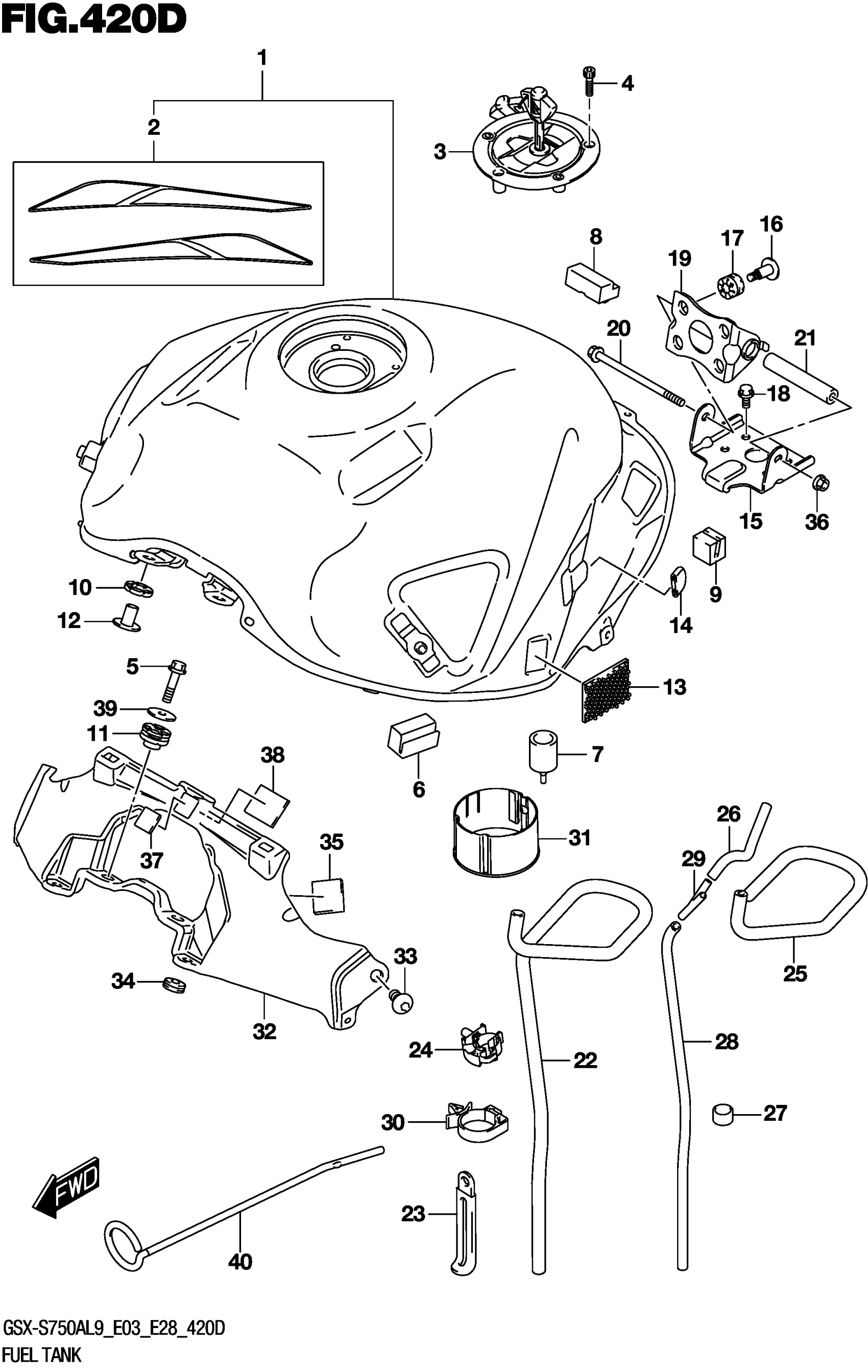

Suzuki GSX-S750AL9 (2019) FUEL TANK (GSX-S750YAL9 E28) Diagram

TANK ASSY, FUEL (BLUE)

44100-13K30-YSF

Unavailable

TANK ASSY, FUEL (WHITE)

44100-13K30-YWW

$1,138.13

.TAPE SET, FUEL TANK | FOR YSF

68110-13K00-A3F

$51.13

.TAPE SET, FUEL TANK | FOR YWW

68110-13K00-BVC

$51.13

CAP SET,FUEL TANK FILLER

44200-17820

$218.08

BOLT,FUEL TANK FILLER CAP

44244-11J00

$4.00

BOLT

07120-0630A

$3.58

CUSHION, FUEL TANK SIDE This part replaces 44541-08J00.

44541-08J01

$5.45

CUSHION,FUEL TANK RR

44542-41G00

$7.69

CUSHION, FUEL TANK REAR

44543-13K00

$10.08

CUSHION, FUEL TANK REAR

44544-13K00

$10.08

CUSHION, FUEL TANK FR LWR

44511-13K00

$5.98

CUSHION, FUEL TANK FR UPR

44512-13K00

$14.80

SPACER,FUEL TANK FRONT

44512-17K00

$5.98

FASTENER (33X25X2.6)

44572-13G00

$11.07

CUSHION,FUEL TANK COVER SIDE This part replaces 44542-08J00.

44542-08J01

$3.65

BRACKET, FUEL TANK RR NO.2

44551-13K00

Unavailable

SCREW (6X24)

09139-06203

Unavailable

CUSHION (8X18X16)

09320-08089

Unavailable

BOLT

01550-0612A

$1.97

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

BOLT (6X100)

09106-06135

$5.53

SPACER,FUEL TANK RR

44561-18G00

$16.96

HOSE, FUEL TANK DRAIN

44423-13K00

$27.12

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74

CLAMP

09403-18307

$3.03

HOSE,FUEL TANK BRTHR NO.1

44424-13K00

Unavailable

HOSE,FUEL TANK BRTHR NO.3

44424-15H11

$13.72

HOSE (13.5X16.5X10)

09352-13162-010

Unavailable

HOSE (5X8.2X360)

09352-50005-360

$6.38

3 WAY

09367-06007

$3.46

CLAMP

09403-18409

$2.22

VESSEL,FUEL TANK INNER

44121-17K01

$16.35

BRACKET, FUEL TANK FRONT

44521-13K00

$44.08

BOLT (6X16)

09113-06013

$2.23

CUSHION (6X18X6)

09320-06504

$4.96

CUSHION (20X30X2)

44556-33H00

$7.66

NUT

08319-3106A

$2.03

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

$2.48

FASTENER (33X25X2.6)

44572-13G00

$11.07

WASHER (6.5X24X1.6)

09160-06134

$1.91

STAY,FUEL TANK | OPT

44574-16G00

$26.72
