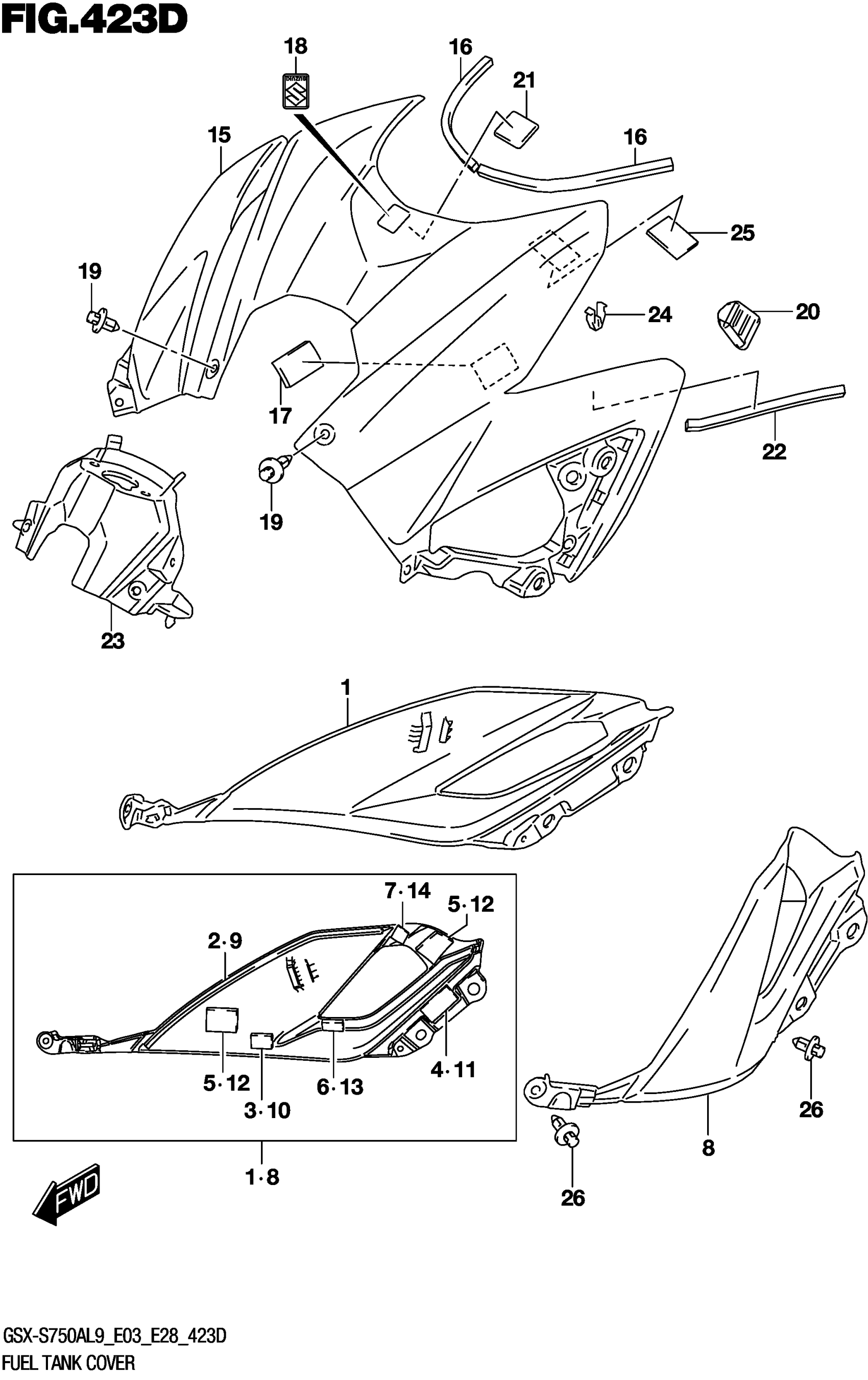

Suzuki GSX-S750AL9 (2019) FUEL TANK COVER (GSX-S750YAL9 E28) Diagram

#

Description
Price

1

COVER,FUEL TANK SIDE RH

44250-13K00

$49.02

2

.CUSHION, TANK COVER SIDE NO.

44252-13K00

$4.05

3

CUSHION,TANK COVER SIDE NO.4

44253-13K00

$6.60

4

.CUSHION, TANK COVER SIDE NO.

44254-13K00

$9.07

5

FASTENER (33X25X2.6)

44572-13G00

$11.07

6

CUSHION (15X23X4)

47163-10FA0

$4.55

7

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

$2.48

8

COVER,FUEL TANK SIDE LH

44260-13K00

$48.12

9

.CUSHION, TANK COVER SIDE NO.

44252-13K00

$4.05

10

CUSHION,TANK COVER SIDE NO.4

44253-13K00

$6.60

11

.CUSHION, TANK COVER SIDE NO.

44254-13K00

$9.07

12

FASTENER (33X25X2.6)

44572-13G00

$11.07

13

CUSHION (15X23X4)

47163-10FA0

$4.55

14

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

$2.48

15-1

COVER,FUEL TANK FRONT (BLUE) | FOR YSF This part replaces 44291-13K00-YSF.

44291-13K01-YSF

$157.30

15-2

COVER,FUEL TANK FRONT (BLACK) | FOR YWW This part replaces 44291-13K00-YKV.

44291-13K01-YKV

$162.02

16

CUSHION,TANK COVER FR NO.1

44292-13K00

$3.82

17

CUSHION (15X23X4)

47163-10FA0

$4.55

18

EMBLEM,S

68281-47HA0

$7.77

19

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

20

CUSHION,TANK COVER FR NO.2

44293-13K00

$6.30

21

CUSHION,TANK COVER UPR NO.3 This part replaces 44294-04K00.

44294-04K01

$3.95

22

CUSHION,TANK COVER FR NO.4

44294-13K00

$3.78

23

COVER, IGNITION SWITCH

44271-13K00

$29.47

24

CLIP (10.5X14.3)

09409-08326

$2.48

25

FASTENER,FRAME COVER (15X25)

47912-37H00

$10.18

26

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78
