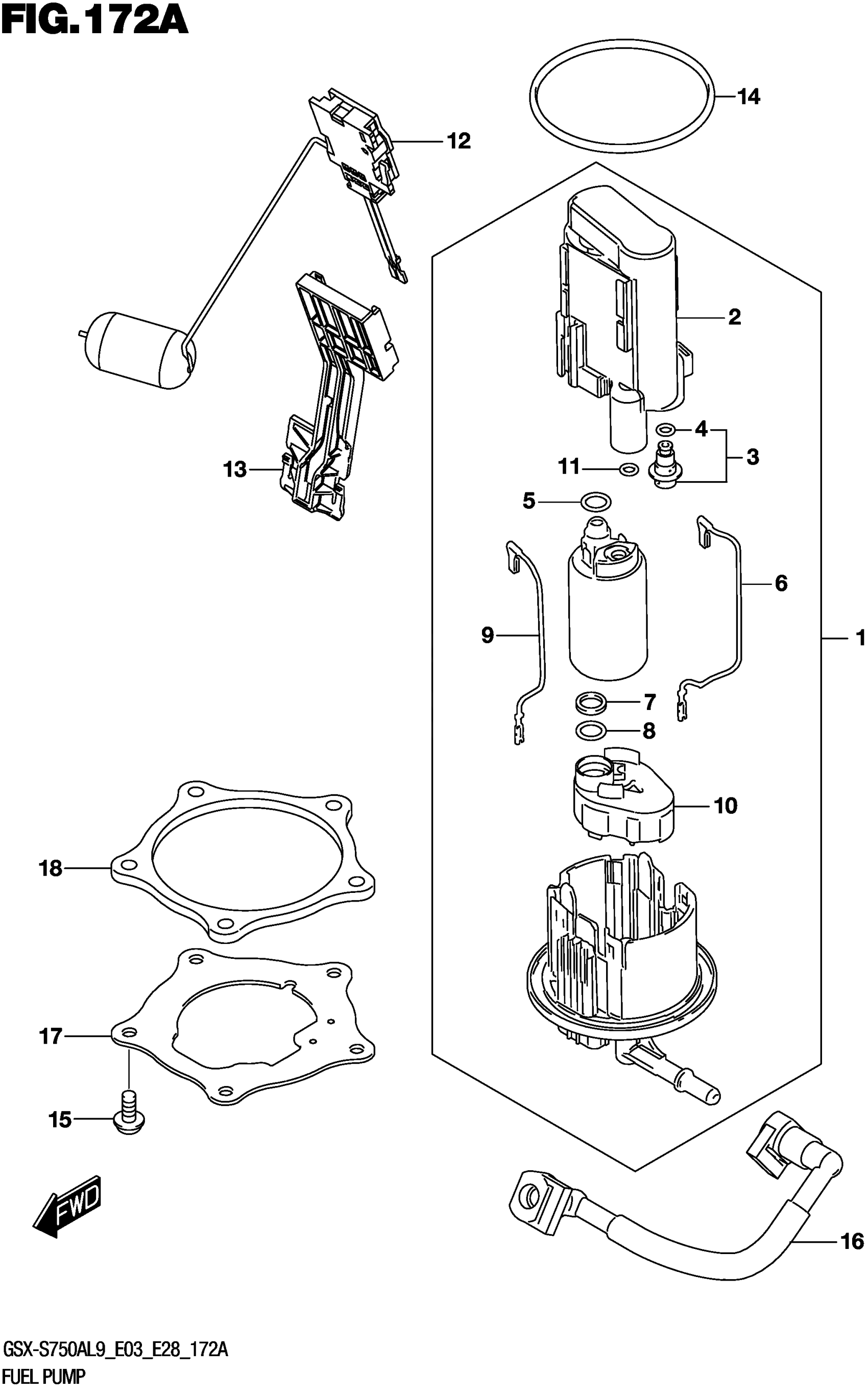

Suzuki GSX-S750AL9 (2019) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-17K00

$613.35

2

.FILTER

15310-17K00

$78.67

3

.REGULATOR

15610-17K00

Unavailable

4

..O-RING

15113-48H00

$16.97

5

.O-RING

15113-05H00

$19.98

6

.WIRE,EARTH

15114-17K00

$40.03

7

.COLLAR

15116-17K00

$18.27

8

.O-RING

15113-17K00

$31.85

9

.WIRE,LEAD

15115-17K00

$40.03

10

.STRAINER

15420-17K00

$99.42

11

.O-RING

15113-35F00

$8.91

12

GAUGE ASSY, FUEL SENDER

34810-13K00

$104.12

13

ATTACHMENT, FUEL LEVEL

34815-13K00

Unavailable

14

O-RING,FUEL PUMP

15201-07L00

$21.00

15

BOLT

07120-0616A

$2.53

16

HOSE, FUEL

15810-13K00

Unavailable

17

PLATE, FUEL PUMP OUTER

15121-17K00

Unavailable

18

PLATE,FUEL PUMP INNER

15122-17K00

$43.73
