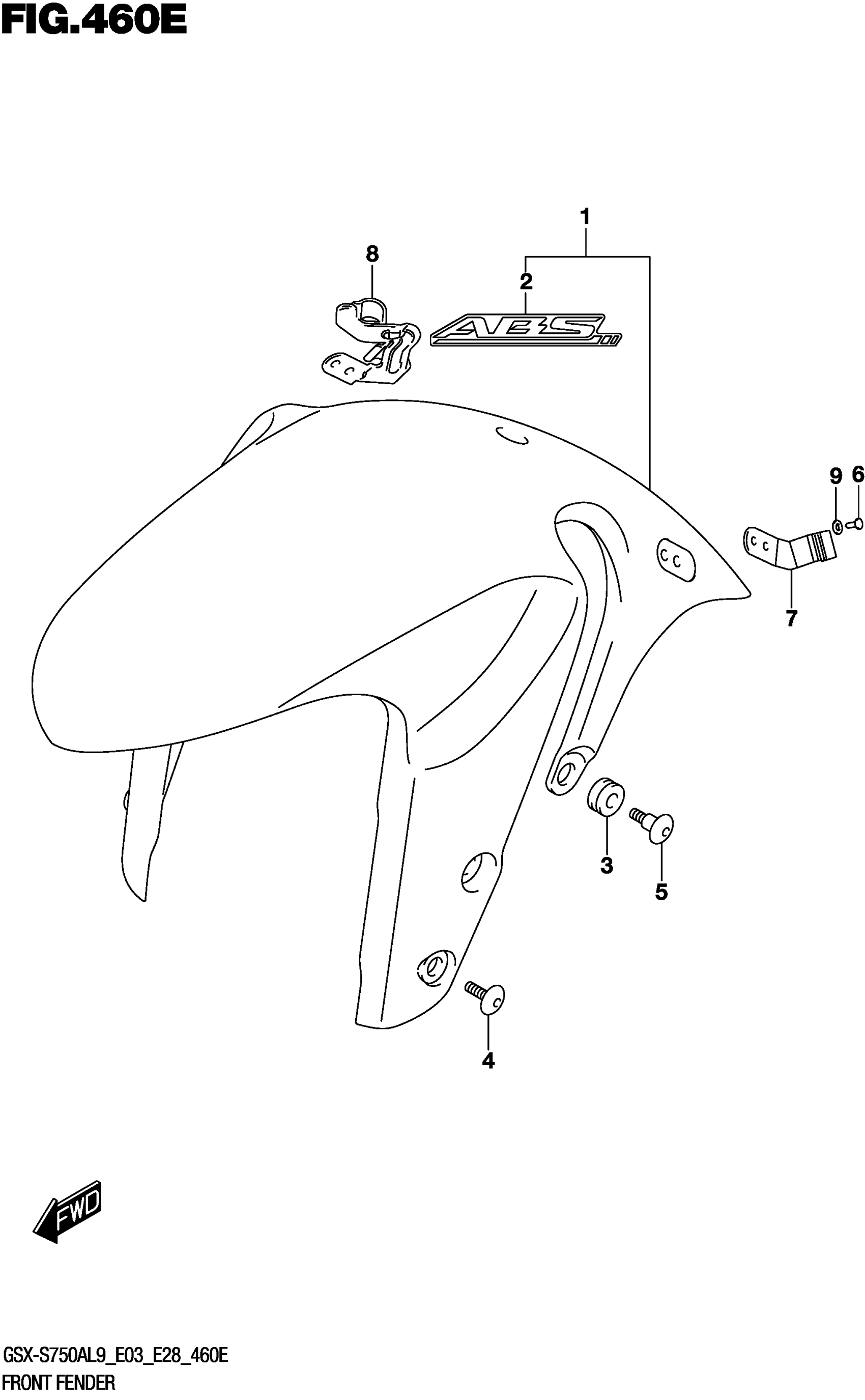

Suzuki GSX-S750AL9 (2019) FRONT FENDER (GSX-S750YAL9 E33) Diagram

#

Description
Price

1-1

FENDER,FRONT(BL This part replaces 53100-04K40-YSF.

53100-04K41-YSF

$186.57

1-2

FENDER,FRONT This part replaces 53100-04K40-YWW.

53100-04K41-YWW

$205.37

2

.EMBLEM,ABS (GRAY) This part replaces 68151-44G00-1ZY.

68151-44G01-1ZY

$9.03

3

CUSHION (9X18X9.5)

09320-09016

$1.97

4

SCREW (6X16)

09139-06169

$2.80

5

SCREW (6X20)

09139-06190

$3.77

6

RIVET

09229-04038

$0.51

7

CLAMP,BRAKE HOSE LH

53118-13K00

$16.70

8

CLAMP,BRAKE HOSE RH

53120-13K00

$34.27

9

WASHER

08322-0104B

$0.24
