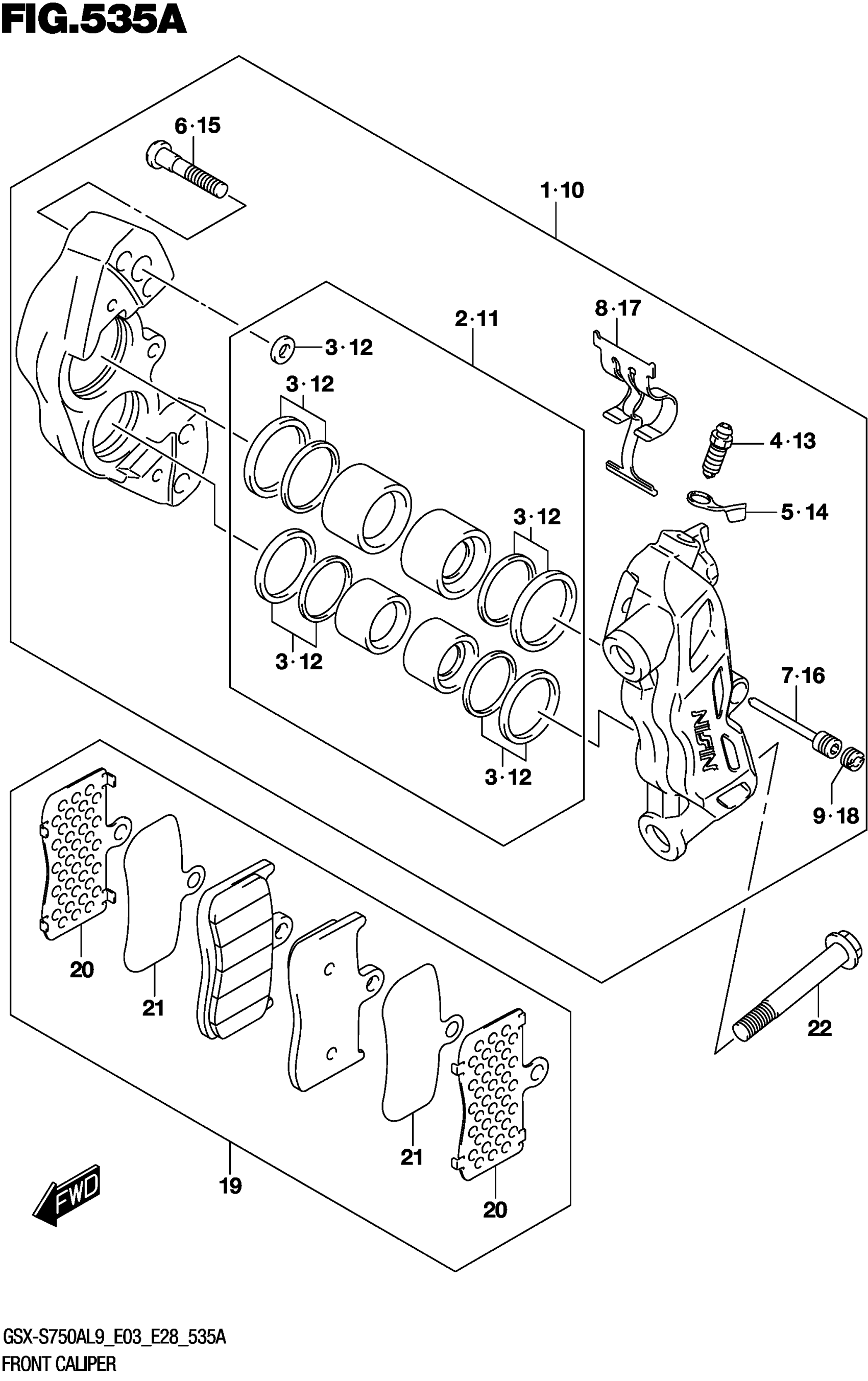

Suzuki GSX-S750AL9 (2019) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY,FRONT,R

59100-23H40-999

$378.02

2

.PISTON SET

59100-23820

Unavailable

3

..SEAL SET,PISTON

59100-23810

$79.70

4

.BLEEDER

59121-01A00

$8.73

5

.CAP,BLEEDER

59122-01A00

$4.34

6

.BOLT

59145-23H00

Unavailable

7

.PLUG,PIN

59146-21E10

$6.15

8

.SPRING,PAD

59151-23H00

Unavailable

9

.PIN

59345-00B20

$14.20

10

CALIPER ASSY,FRONT,L

59300-23H40-999

$378.02

11

.PISTON SET

59100-23820

Unavailable

12

..SEAL SET,PISTON

59100-23810

$79.70

13

.BLEEDER

59121-01A00

$8.73

14

.CAP,BLEEDER

59122-01A00

$4.34

15

.BOLT

59145-23H00

Unavailable

16

.PLUG,PIN

59146-21E10

$6.15

17

.SPRING,PAD

59151-23H00

Unavailable

18

.PIN

59345-00B20

$14.20

19

PAD & SHIM SET

59100-23851

$95.45

20

.SHIM

59133-23H00

Unavailable

21

.INSULATOR

69132-23H00

Unavailable

22

BOLT (10X70)

09103-10450

$4.90
