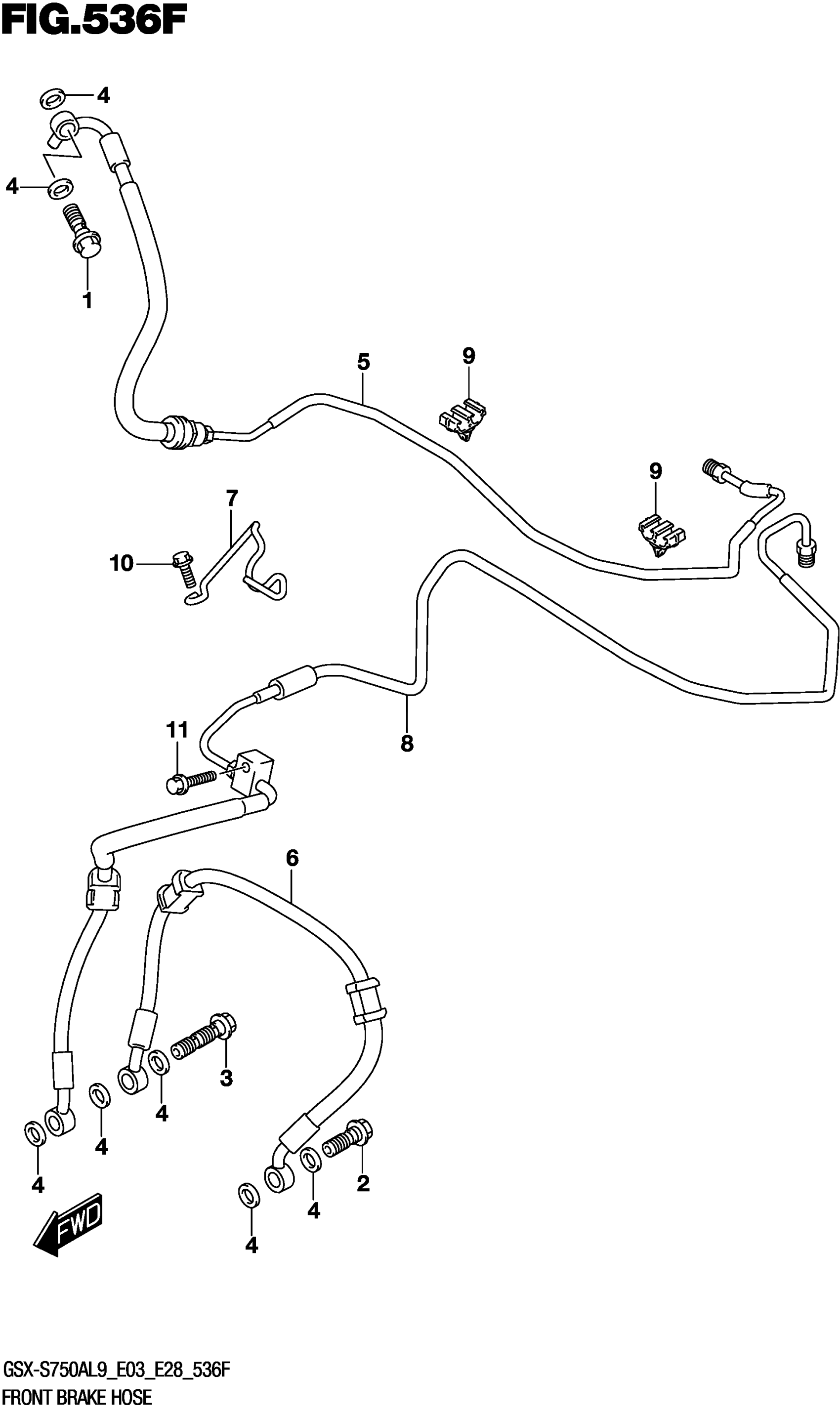

Suzuki GSX-S750AL9 (2019) FRONT BRAKE HOSE (GSX-S750ZAL9 E28) Diagram

#

Description
Price

1

UNION This part replaces 09360-10042.

09360-10062

$5.81

2

UNION This part replaces 09360-10042.

09360-10062

$5.81

3

UNION

09360-10069

$6.75

4

WASHER (10X15X1.5)

09161-10009

$1.83

5

HOSE ASSY, FRONT BRAKE NO.1

59200-13K00

$149.20

6

HOSE, FRONT BRAKE NO.2

59240-13K00

$101.32

7

CLAMP,FR BRAKE HOSE

59251-08J00

$15.73

8

HOSE ASSY, FR BRAKE NO.2 This part replaces 59400-13K00.

59400-13K01

$173.03

9

CLAMP

09403-07344

$2.72

10

BOLT

01547-0616B

$2.43

11

..BOLT

01547-0620B

$2.43
