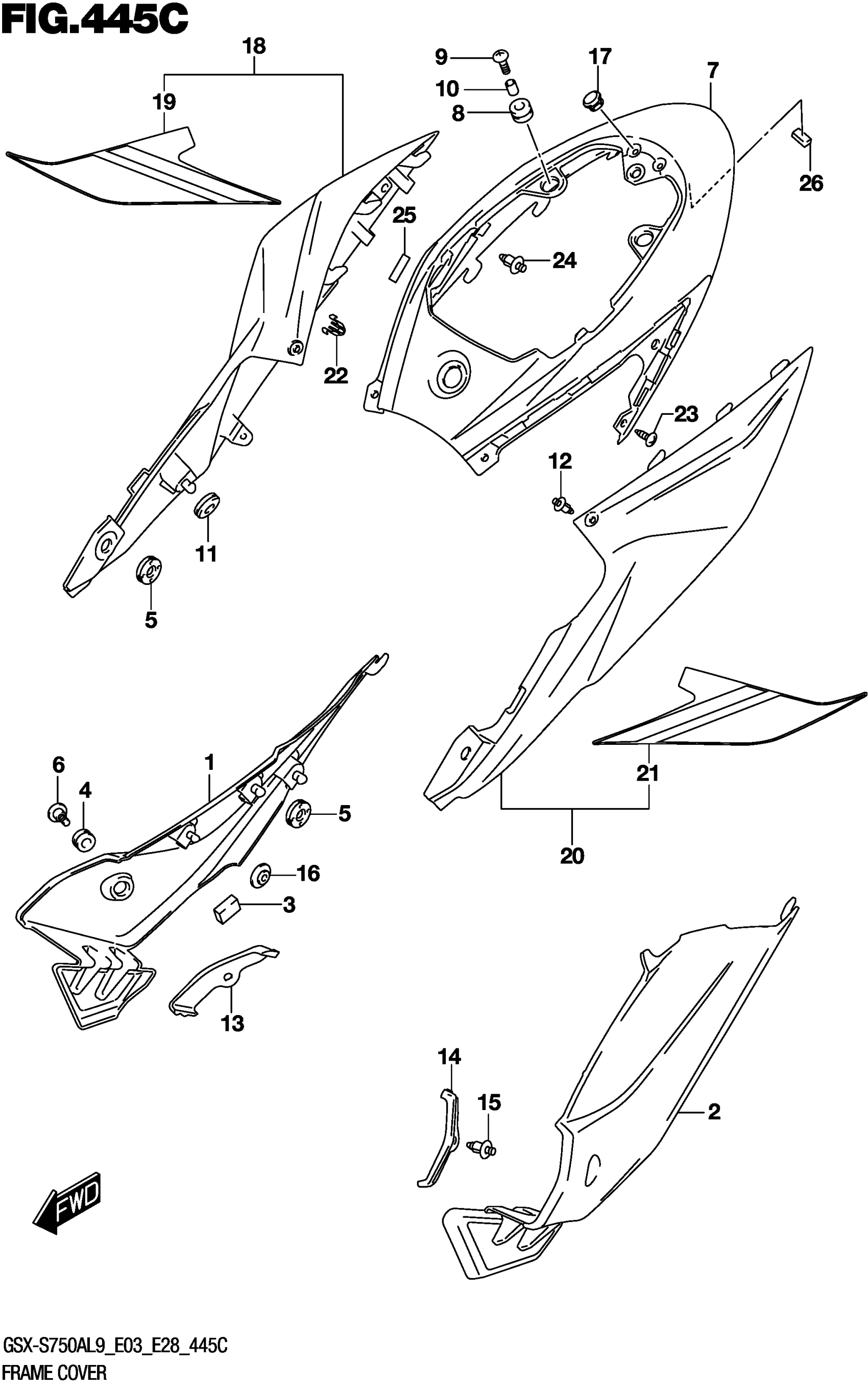

Suzuki GSX-S750AL9 (2019) FRAME COVER (GSX-S750AL9 E28) Diagram

#

Description
Price

1

COVER, FRAME FRONT RH

47511-13K00

$163.55

2

COVER, FRAME FRONT LH

47611-13K00

$98.78

3

CUSHION (20X30X8)

94422-06G00

$6.57

4

CUSHION (9X18X9.5)

09320-09016

$1.97

5

CUSHION (8X26X7)

09320-08028

$2.80

6

SCREW (6X20)

47118-08J00

$4.92

7

COVER, FRAME CENTER (BLACK)

47311-13K00-YKV

$246.50

8

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

9

SCREW (6X20)

09136-06105

$1.99

10

SPACER (6.5X10X7)

09180-06283

$1.89

11

CUSHION (8x26x7)

09320-08018

$2.80

12

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

13

COVER,FRAME TOP RH

47711-08J00

$8.30

14

COVER,FRAME TOP LH

47811-08J00

$8.30

15

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

16

CUSHION

09320-06026

$4.45

17

CUSHION,SEAT MOUNT

45148-27J00

$19.43

18

COVER, FRAME RH (BLACK)

47110-13K20-6UX

Unavailable

19

.TAPE, FRAME COVER RH

68135-13K20-KEL

Unavailable

19

.TAPE, FRAME COVER RH

68135-13K20-KEL

Unavailable

20

COVER, FRAME LH (BLACK)

47210-13K20-6UX

Unavailable

21

.TAPE, FRAME COVER LH

68145-13K20-KEL

Unavailable

21

.TAPE, FRAME COVER LH

68145-13K20-KEL

Unavailable

22

CLIP (10.5X14.3)

09409-08326

$2.45

23

SCREW

03541-0512B

$1.77

24

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

25

CUSHION (10X30X2)

44894-24A00

$1.78

26

CUSHION (10X30X8)

63211-26G00

$11.00
