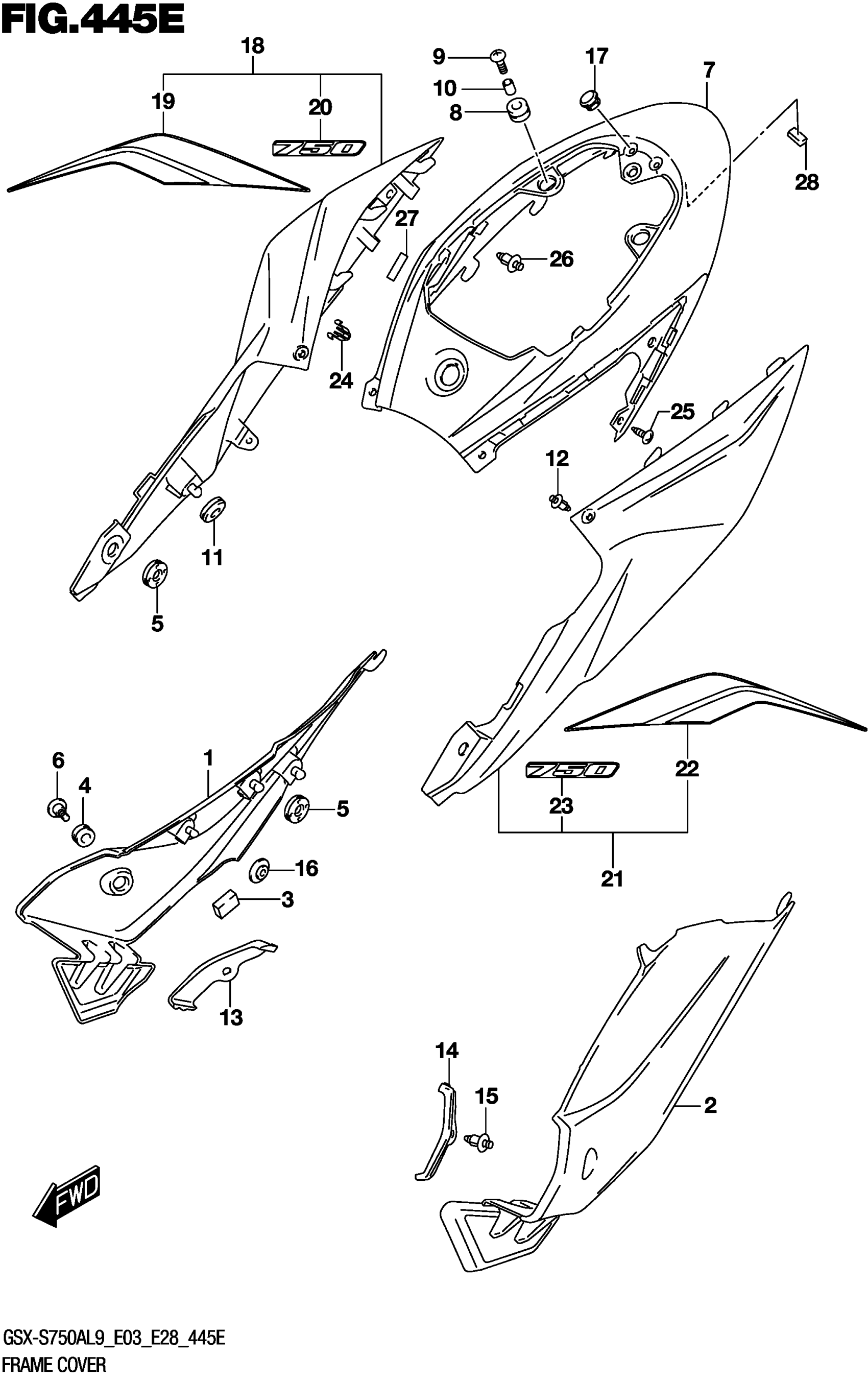

Suzuki GSX-S750AL9 (2019) FRAME COVER (GSX-S750YAL9 E33) Diagram

#

Description
Price

1

COVER, FRAME FRONT RH

47511-13K00

$163.55

2

COVER, FRAME FRONT LH

47611-13K00

$98.78

3

CUSHION (20X30X8)

94422-06G00

$6.57

4

CUSHION (9X18X9.5)

09320-09016

$1.97

5

CUSHION (8X26X7)

09320-08028

$2.80

6

SCREW (6X20)

47118-08J00

$4.92

7

COVER, FRAME CENTER (BLACK)

47311-13K00-YKV

$246.50

8

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

9

SCREW (6X20)

09136-06105

$1.99

10

SPACER (6.5X10X7)

09180-06283

$1.89

11

CUSHION (8x26x7)

09320-08018

$2.80

12

CLIP This part replaces 09409-06314.

09409-06314-5PK

$2.80

13

COVER,FRAME TOP RH

47711-08J00

$8.30

14

COVER,FRAME TOP LH

47811-08J00

$8.30

15

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

16

CUSHION

09320-06026

$4.45

17

CUSHION,SEAT MOUNT

45148-27J00

$19.43

18-1

COVER, FRAME RH (BLUE)

47110-13K40-YSF

Unavailable

18-2

COVER, FRAME RH (WHITE)

47110-13K40-YWW

$151.78

19-1

.TAPE, FRAME COVER RH | FOR YSF

68135-13K50-A3F

$35.60

19-2

.TAPE, FRAME COVER RH | FOR YWW

68135-13K50-BVC

$35.60

20-1

(BLUE/WHITE) | FOR YSF

68161-13K00-AGQ

Unavailable

20-1

(BLUE/WHITE)

68161-13K00-AGQ

Unavailable

20-2

.EMBLEM, "750" RH | FOR YWW

68161-13K00-AR9

$14.78

20-2

.EMBLEM, "750" RH

68161-13K00-AR9

$14.78

21-1

COVER, FRAME LH (BLUE)

47210-13K40-YSF

Unavailable

21-2

COVER, FRAME LH (WHITE)

47210-13K40-YWW

Unavailable

22-1

.TAPE, FRAME COVER LH | FOR YSF

68145-13K50-A3F

$35.60

22-2

.TAPE, FRAME COVER LH | FOR YWW

68145-13K50-BVC

$35.60

23-1

.EMBLEM, "750" LH | FOR YSF

68171-13K00-AGQ

Unavailable

23-1

.EMBLEM, "750" LH

68171-13K00-AGQ

Unavailable

23-2

(WHITE/BLACK) | FOR YWW

68171-13K00-AR9

$14.78

23-2

(WHITE/BLACK)

68171-13K00-AR9

$14.78

24

CLIP (10.5X14.3)

09409-08326

$2.45

25

SCREW

03541-0512B

$1.77

26

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

27

CUSHION (10X30X2)

44894-24A00

$1.78

28

CUSHION (10X30X8)

63211-26G00

$11.00
