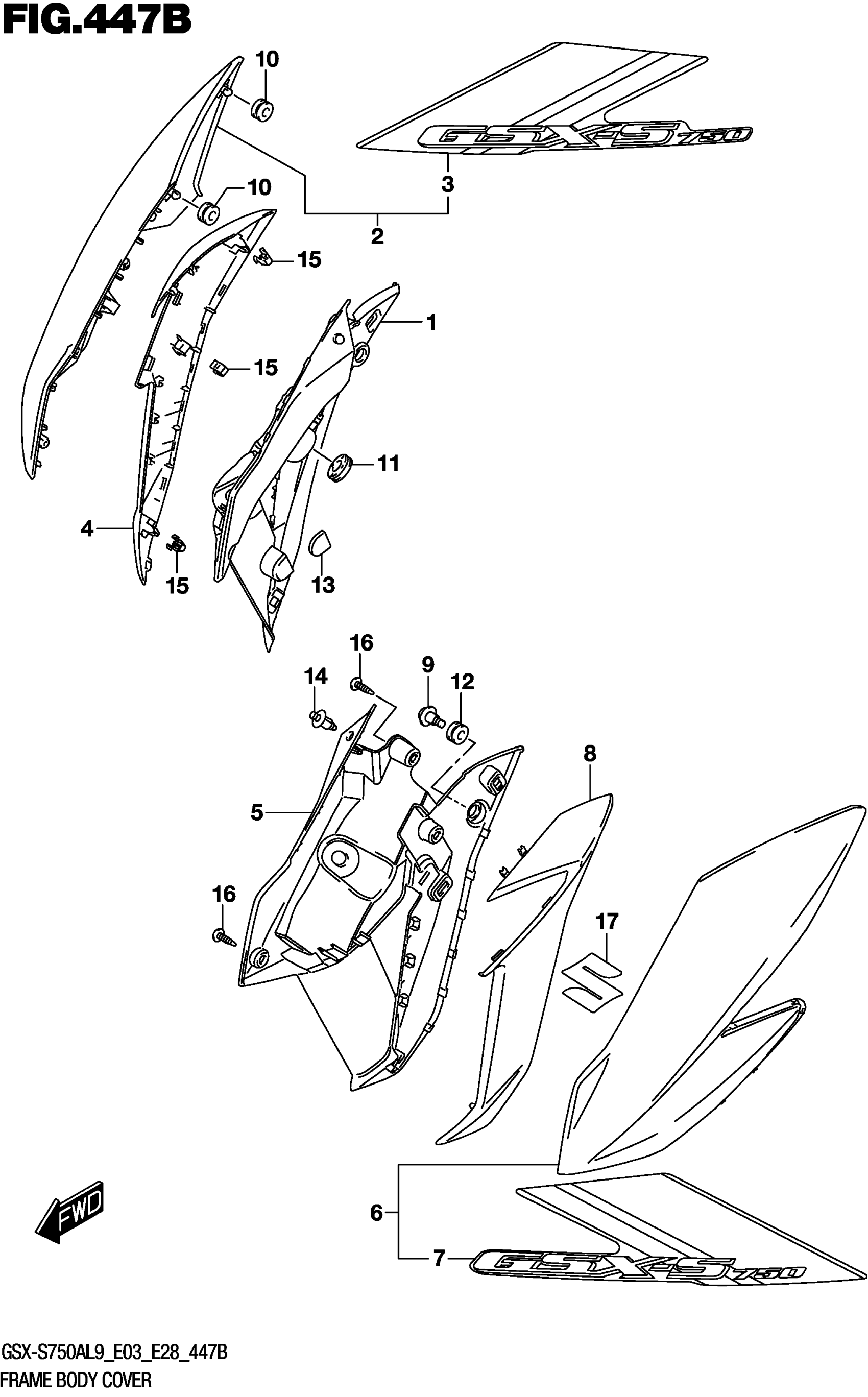

Suzuki GSX-S750AL9 (2019) FRAME BODY COVER (GSX-S750ZL9 E33) Diagram

#

Description
Price

1

COVER,FRAME BODY INNER RH

47531-13K00

$56.47

2

(BLACK)

47530-13K10-4TX

$106.33

2

(BLACK)

47530-13K10-4TX

$106.33

3

.TAPE, FRAME BODY COVER RH

68135-13K10-BUP

$36.22

4

COVER,FRAME BODY LWR,R (BLACK

47533-13K00-YKV

$50.90

4

COVER,FRAME BODY LWR,R (BLACK

47533-13K00-YKV

$50.90

5

COVER,FRAME BODY INNER LH

47541-13K00

$56.47

6

COVER, FRAME BODY UPPER LH

47540-13K10-4TX

$106.33

6

COVER, FRAME BODY UPPER LH

47540-13K10-4TX

$106.33

7

.TAPE, FRAME BODY COVER LH

68145-13K10-BUP

Unavailable

8

COVER,FRAME BODY LWR,L (BLACK

47543-13K00-YKV

$44.43

8

COVER,FRAME BODY LWR,L (BLACK

47543-13K00-YKV

$44.43

9

SCREW (6X20)

09139-06190

$4.17

10

CUSHION (6X18X6)

09320-06504

$4.96

11

CUSHION (8X26X7)

09320-08028

$3.04

12

CUSHION (9X18X9.5)

09320-09016

$1.97

13

CUSHION

09329-18001

$1.91

14

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

15

CLIP (10.5X14.3)

09409-08326

$2.48

16

SCREW

03541-0512A

$1.49

17

EMBLEM, S

68111-47HA0

$40.44
