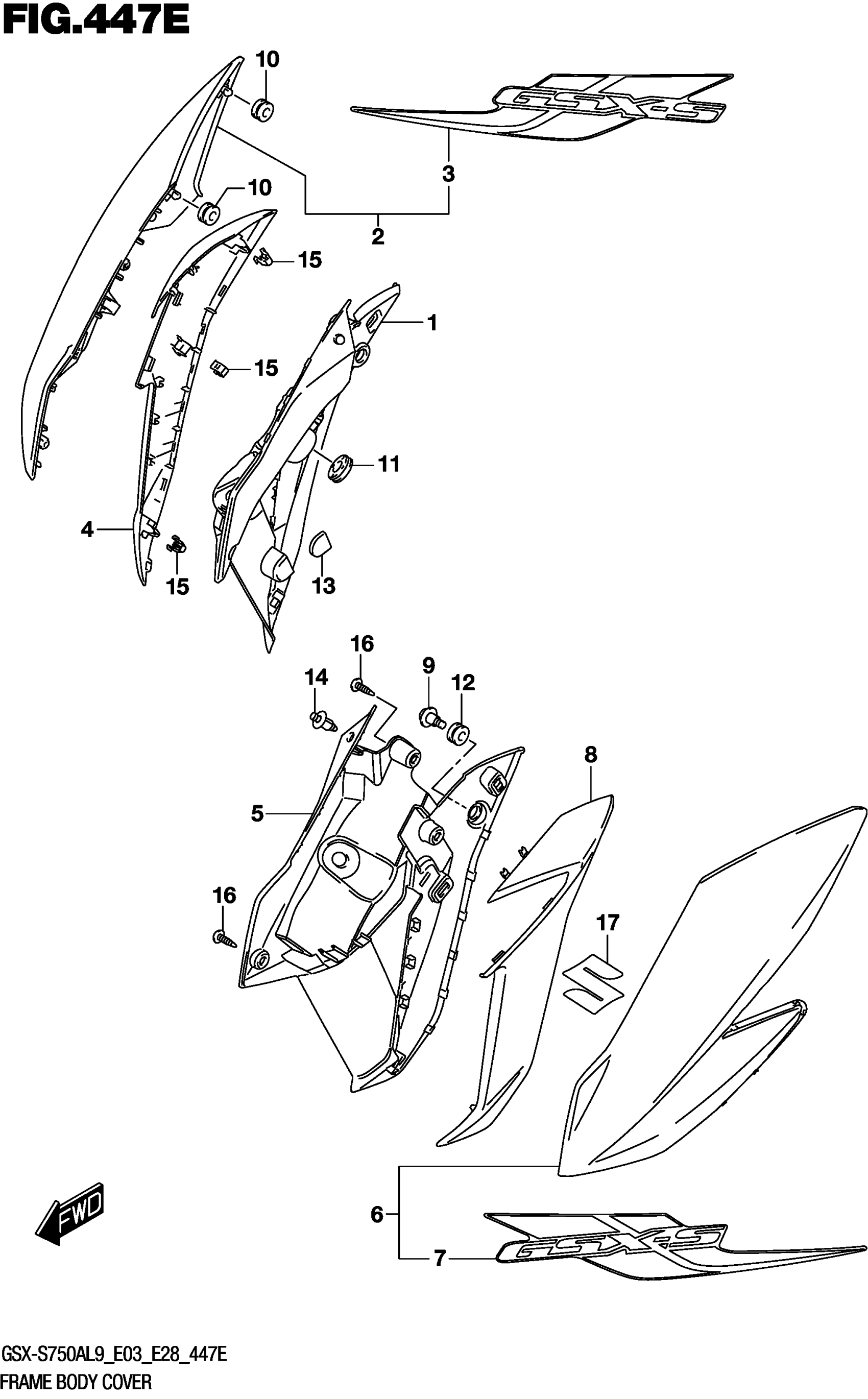

Suzuki GSX-S750AL9 (2019) FRAME BODY COVER (GSX-S750YAL9 E33) Diagram

#

Description
Price

1

COVER,FRAME BODY INNER RH

47531-13K00

$56.47

2-1

(BLUE)

47530-13K20-YSF

Unavailable

2-1

(BLUE)

47530-13K20-YSF

Unavailable

2-2

(WHITE)

47530-13K20-YWW

$108.33

2-2

(WHITE)

47530-13K20-YWW

$108.33

3-1

.TAPE, FRAME BODY COVER RH | FOR YSF

68135-13K40-BUK

$31.55

3-2

.TAPE, FRAME BODY COVER RH | FOR YWW

68135-13K40-BUL

$31.55

4-1

COVER,FRAME BODY LWR,R (BLUE)

47533-13K00-YSF

$52.53

4-1

COVER,FRAME BODY LWR,R (BLUE)

47533-13K00-YSF

$52.53

4-2

COVER, FRAME BODY LOWER RH

47533-13K00-YWW

$55.08

4-2

COVER, FRAME BODY LOWER RH

47533-13K00-YWW

$55.08

5

COVER,FRAME BODY INNER LH

47541-13K00

$56.47

6-1

(BLUE)

47540-13K20-YSF

Unavailable

6-1

(BLUE)

47540-13K20-YSF

Unavailable

6-2

(WHITE)

47540-13K20-YWW

$108.33

6-2

(WHITE)

47540-13K20-YWW

$108.33

7-1

.TAPE, FRAME BODY COVER LH | FOR YSF

68145-13K40-BUK

$31.55

7-2

.TAPE, FRAME BODY COVER LH | FOR YWW

68145-13K40-BUL

$31.55

8-1

COVER,FRAME BODY LWR,L (BLUE)

47543-13K00-YSF

$52.53

8-1

COVER,FRAME BODY LWR,L (BLUE)

47543-13K00-YSF

$52.53

8-2

COVER, FRAME BODY LOWER LH

47543-13K00-YWW

$55.08

8-2

COVER, FRAME BODY LOWER LH

47543-13K00-YWW

$55.08

9

SCREW (6X20)

09139-06190

$4.17

10

CUSHION (6X18X6)

09320-06504

$4.96

11

CUSHION (8X26X7)

09320-08028

$3.04

12

CUSHION (9X18X9.5)

09320-09016

$1.97

13

CUSHION

09329-18001

$1.91

14

CLIP (5.9X20.5,BLACK)

09409-06314-5PK

$2.78

15

CLIP (10.5X14.3)

09409-08326

$2.48

16

SCREW

03541-0512A

$1.49

17

EMBLEM, S

68111-47HA0

$40.44
