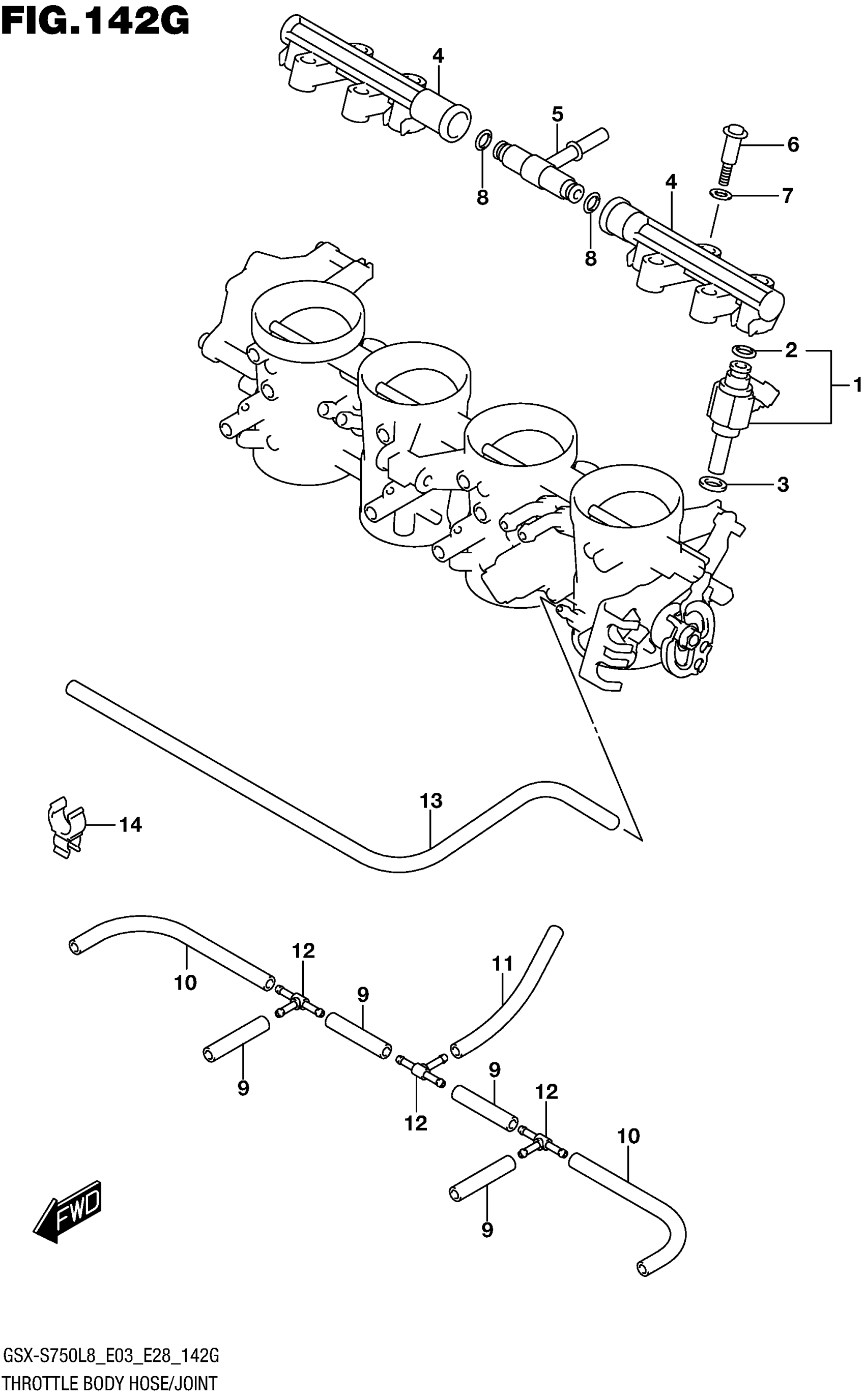

Suzuki GSX-S750AL8 (2018) THROTTLE BODY HOSE/JOINT (GSX-S750AZL8 E28) Diagram

INJECTOR ASSY

15710-04K00

$271.53

.O-RING

15717-58B00

$9.95

SEAL

15722-14J00

$11.36

PIPE,DELIVERY

13473-08J00

Unavailable

NIPPLE ASSY

13473-04K00

Unavailable

SCREW

13601-29G00

$3.43

PACKING This part replaces 13602-29G00.

13602-29G01

$2.43

O-RING

15721-08J00

$10.52

HOSE (7.4X3.2X35)

13681-39F00-035

Unavailable

HOSE (7.4X3.2X100)

13681-39F00-100

Unavailable

.HOSE (3X7X600) | L:600->135 This part replaces 09355-30705-600.

09355-30001-600

$8.56

3WAY,VACUUM HOSE

13685-02FA0

$7.05

HOSE This part replaces 13683-13K20.

13683-13K21

$10.83

CLAMP

09408-00309

Unavailable
