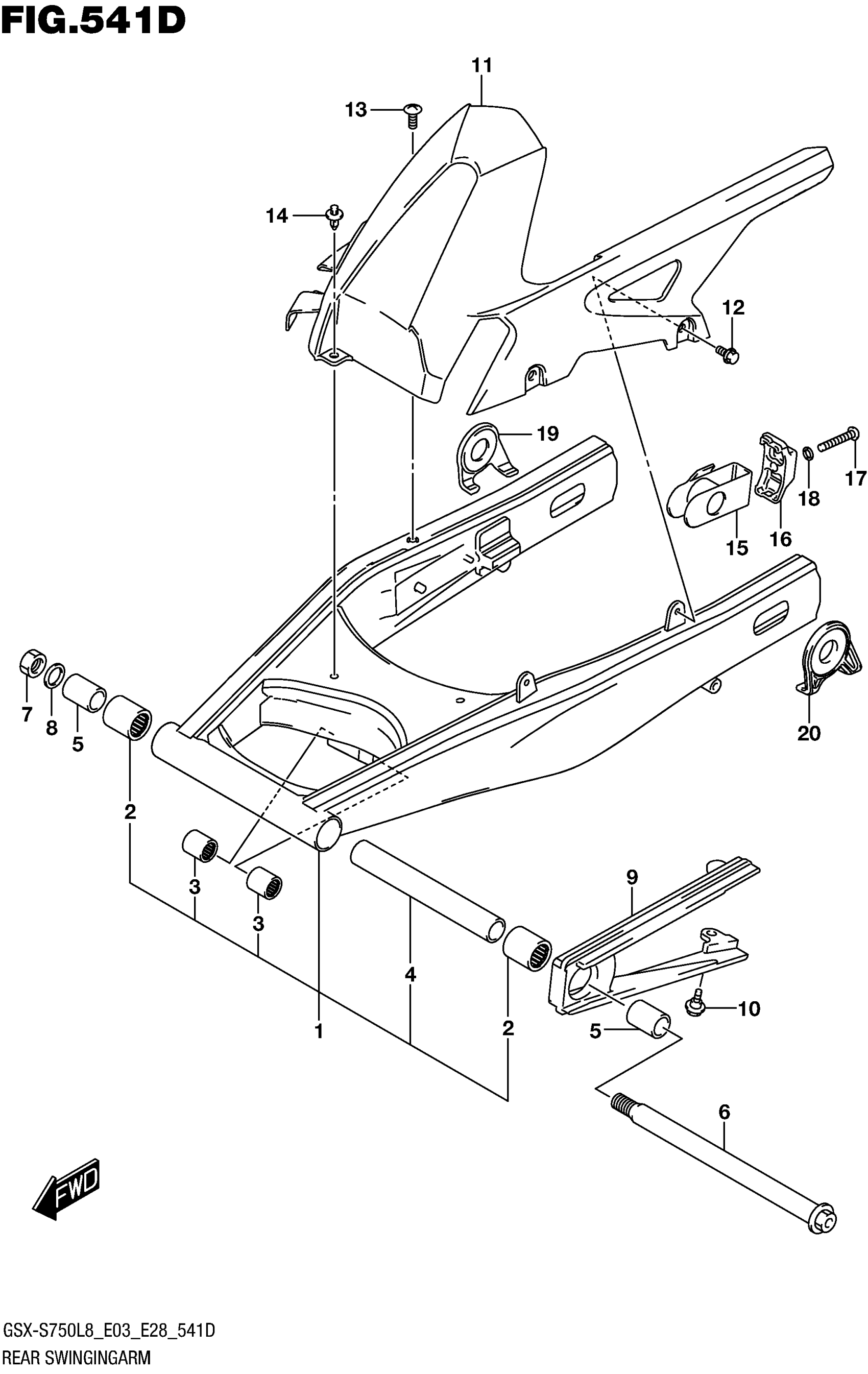

Suzuki GSX-S750AL8 (2018) REAR SWINGINGARM (GSX-S750ZL8 E33) Diagram

#

Description
Price

1

SWINGINGARM ASSY,REAR (BLACK) This part replaces 61000-13K00-YAP.

61000-13K01-YAP

$800.45

1

SWINGINGARM ASSY,REAR (BLACK) This part replaces 61000-13K00-YAP.

61000-13K01-YAP

$800.45

2

BEARING (25X33X35) This part replaces 09263-25059.

09263-25073

$30.93

3

.BEARING (17X24X25) This part replaces 09263-17037.

09263-17053

$21.66

4

.SPACER,RR SWGARM PIVOT CTR

61282-17C00

$28.42

5

SPACER, PIVOT

61251-21E00

$30.05

6

SHAFT, PIVOT

61211-31E00

$128.72

7

NUT

09159-18007

$19.68

8

WASHER (18.5X28X2.6)

09160-18030

$2.56

9

BUFFER, CHAIN TOUCH DEFENSE

61273-13K00

$28.62

10

BOLT (6X17.8)

09111-06072

$2.03

11

CASE, CHAIN

61310-13K00

$71.98

12

BOLT (6X12)

09111-06107

$2.60

13

SCREW (6X16)

09139-06113

$4.00

14

CLIP (BLACK)

09409-08308-5ES

$1.97

15

ADJUSTER, CHAIN

61410-13K00

$20.62

16

PLATE, CHAIN ADJUSTER GUIDE

61421-13K10

$25.48

17

BOLT (8X50)

09106-08119

$4.04

18

WASHER

09164-08015

$3.21

19

WASHER, CHAIN ADJUSTER RH

61445-13K10

$23.57

20

WASHER, CHAIN ADJUSTER LH

61446-13K10

$24.90
