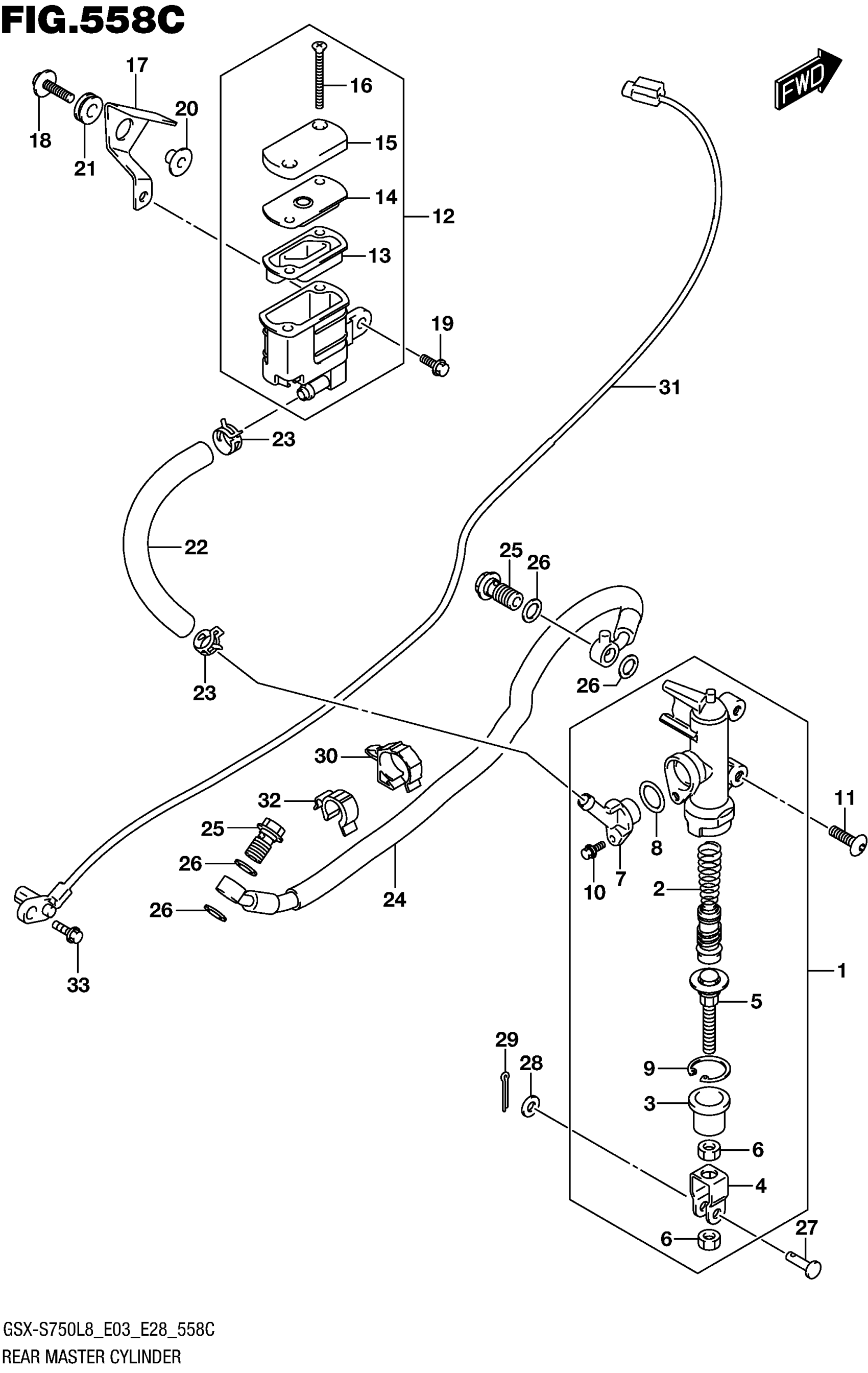

Suzuki GSX-S750AL8 (2018) REAR MASTER CYLINDER (GSX-S750ZL8 E03) Diagram

#

Description
Price

1

CYLINDER ASSY,REAR MASTER

69600-08J10

$168.05

2

.PISTON/CAP SET

69600-34810

$63.75

3

.BOOT

69691-04A00

$5.83

4

.YOKE

69692-47H00

$15.75

5

.PUSH ROD

69670-27A50

$45.18

6

.NUT

69693-47H00

$2.80

7

.CONNECTOR

69672-08J10

$6.56

8

.O RING

69686-34200

$2.80

9

.CIRCLIP

69665-47H00

$5.65

10

.SCREW

02112-7412A

$2.67

11

SCREW (6X20)

09139-06028

$3.33

12

TANK ASSY,RESERVOIR

69740-18K00

$25.72

13

.DIAPHRAGM

69667-01H00

$7.12

14

.PLATE, DIAPHRAGM

69668-01H00

$6.75

15

.CAP

69669-18K00

$16.23

16

.SCREW

69689-01H00

$5.02

17

BRACKET, REAR RESERVOIR TANK

69750-13K00

$10.12

18

BOLT (6X25)

09116-06202

$3.19

19

BOLT

01547-0612A

$2.01

20

SPACER (6.2X8.4X6.9)

09180-06325

$3.47

21

CUSHION (8.4X18X6)

09320-08066

$7.44

22

HOSE,RR RESERVOIR TANK

69731-08J00

$21.23

23

CLIP

09401-12404

$2.37

24

HOSE, ASSY REAR BRAKE NO.1

69480-13K00

$58.33

25

UNION

09360-10062

$5.81

26

WASHER (10X15X1.5)

09161-10009

$1.83

27

PIN (6X18.2)

09200-06068

$3.71

28

WASHER

08322-0106A

$1.83

29

COTTER PIN

04111-2015A

$1.22

30

CLAMP

09403-17306

$2.64

31

SENSOR, REAR WHEEL ABS This part replaces 65710-13K10.

65710-13K20

$79.67

32

CLAMP

09408-00307

$3.22

33

BOLT

01547-0616B

$2.43
