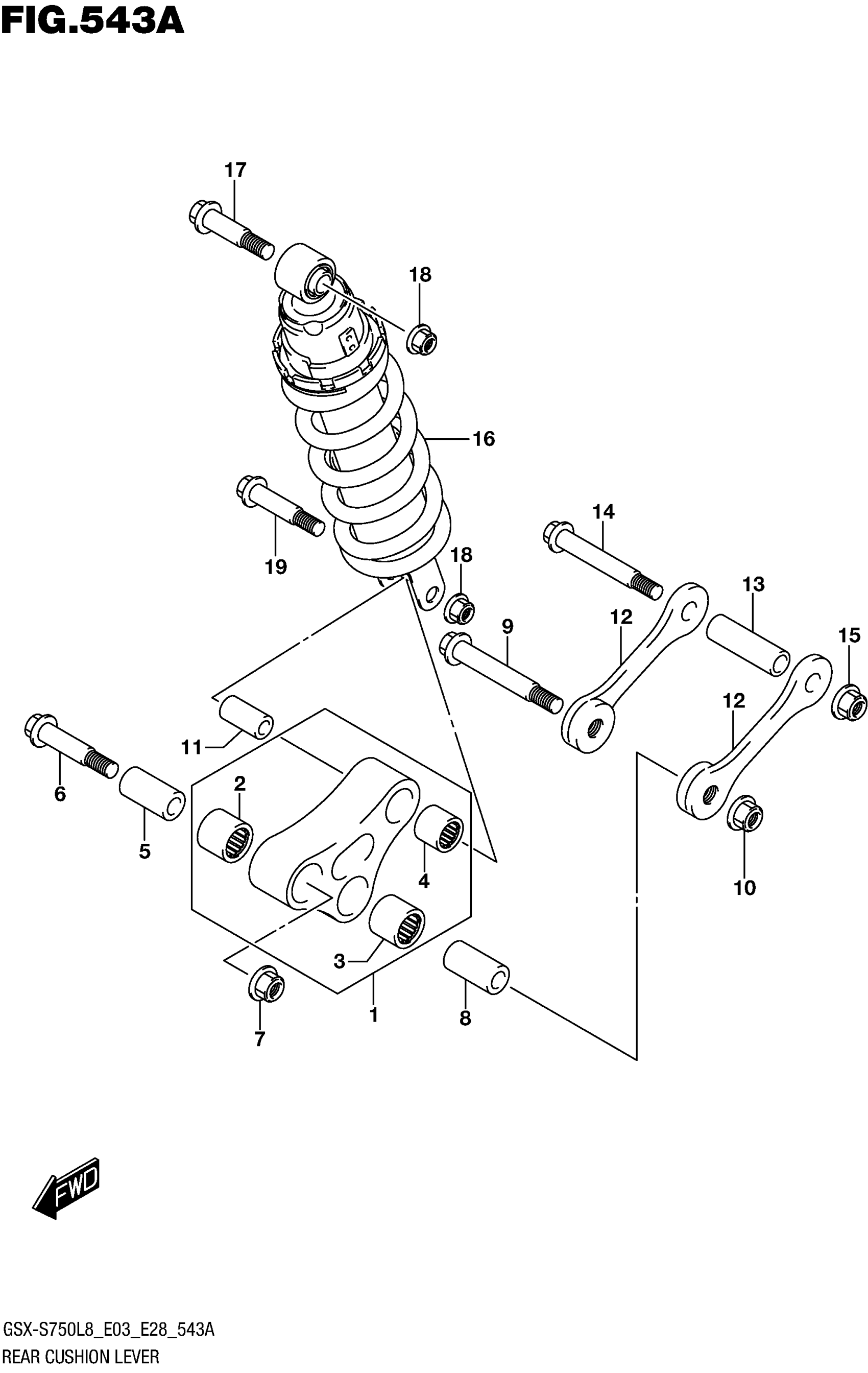

Suzuki GSX-S750AL8 (2018) REAR CUSHION LEVER Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-08840

Unavailable

2

.BEARING | FRONT This part replaces 09263-20074.

09263-20116

$31.15

3

.BEARING | CENTER This part replaces 09263-20074.

09263-20116

$31.15

4

.BEARING (17X24X32) | REAR

09263-17046

$41.45

5

SPACER, FRONT

62317-44B00

$21.03

6

BOLT, FRONT

62668-42A02

$10.67

7

NUT

09159-12056

$7.37

8

SPACER, CENTER

62317-44B00

$21.03

9

BOLT, CENTER

62658-37F10

$10.37

10

NUT

09159-12056

$7.37

11

SPACER, REAR

62317-47H00

$20.45

12

ROD,RR CUSHION

62640-08J00

Unavailable

13

SPACER,RR CUSHION ROD

62646-08J00

$21.10

14

BOLT, ROD

62658-37F10

$10.37

15

NUT

09159-12056

$7.37

16

ABSORBER ASSY, REAR SHOCK

62100-08JD0-17U

Unavailable

16

(GRAY)

62100-08JD0-17U

Unavailable

17

BOLT (10X52) | UPPER

09103-10213

$5.77

18

NUT

09159-10115

$3.55

19

BOLT (10X58) | LOWER

09103-10428

$5.07
