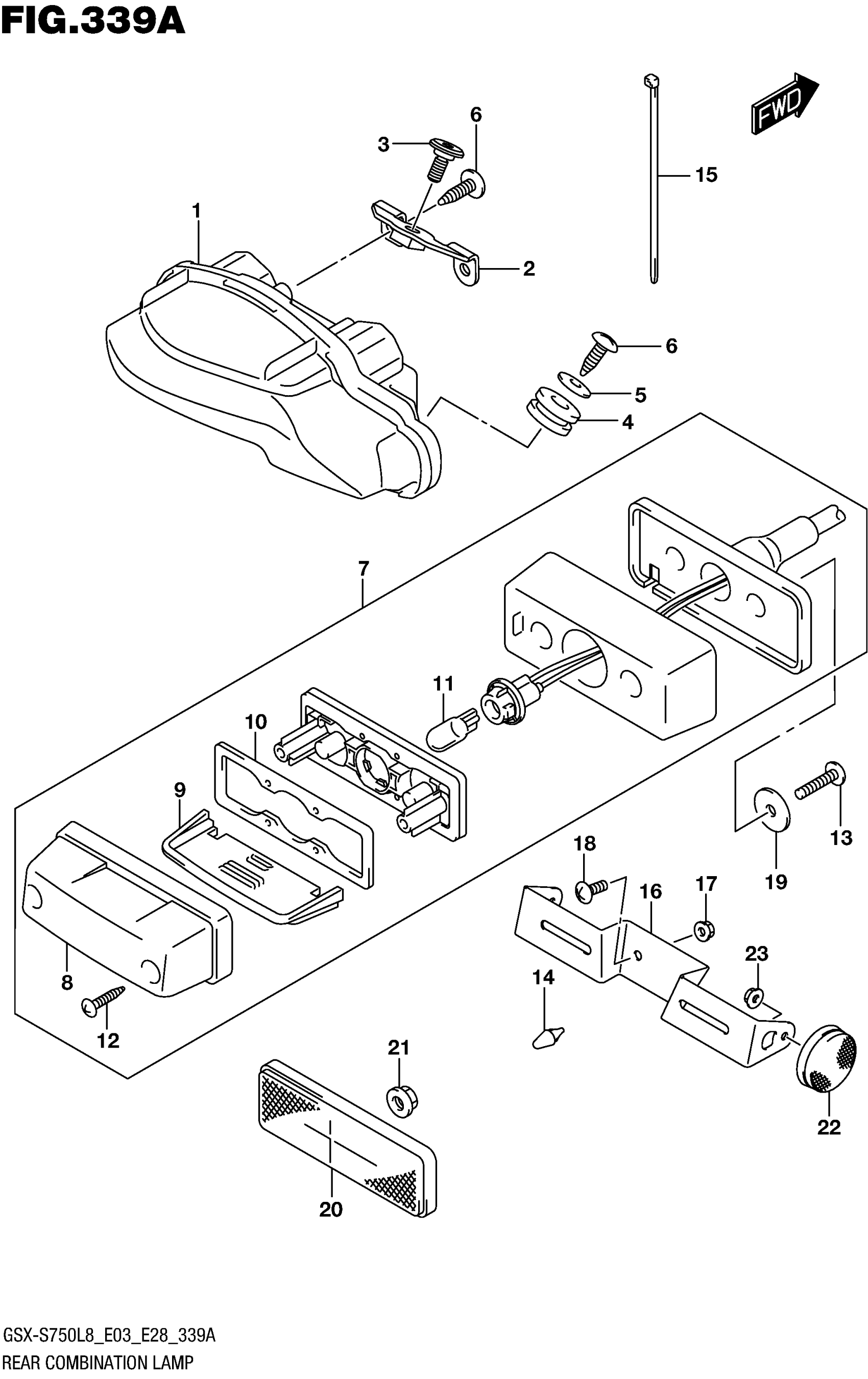

Suzuki GSX-S750AL8 (2018) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMBINATION

35710-04K01

$252.17

2

BRACKET, REAR COMBINATION LAM

35726-13K00

$6.65

3

SCREW (5X13)

09139-05092

$2.22

4

CUSHION This part replaces 09320-10054.

09320-10073

$2.12

5

WASHER

09160-05037

$1.49

6

SCREW

03541-0516A

$1.37

7

LAMP ASSY,LICENSE

35910-16G90

$90.27

8

.COVER

35917-16G00

$14.00

9

.LENS

35912-16G01

$13.85

10

.GASKET

35913-16G00

Unavailable

11

.BULB (12V5W)

09471-12216

$4.84

12

.SCREW

03211-0416A

$1.43

13

SCREW

03541-0540A

$1.58

14

CUSHION This part replaces 09321-06028.

09321-06038

$2.05

15

CLAMP

09407-14407

$2.80

16

BRACKET,LICENSE PLATE

35927-44H30

$20.78

17

NUT

09159-06096

$3.42

18

SCREW

02142-0616A

$1.37

19

WASHER (5.5X20X1.2)

09160-05501

$1.86

20

REFLECTOR ASSY, REAR

35970-07F01

$19.11

21

NUT

08316-1005A

$2.19

22

REFLECTOR ASSY, REAR SIDE

35970-13K00

$18.38

23

NUT

08316-1005A

$2.19
