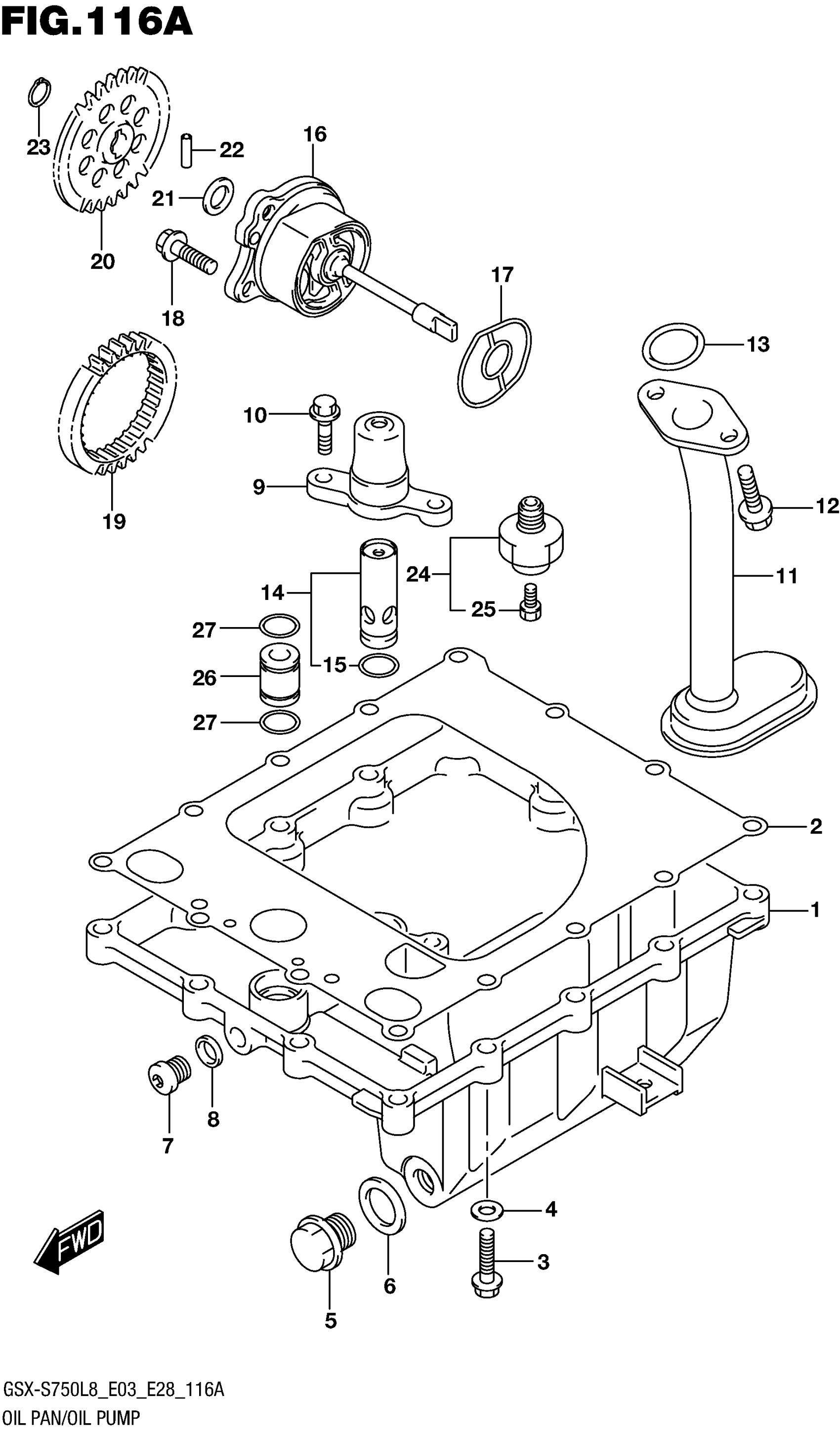

Suzuki GSX-S750AL8 (2018) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

PAN, OIL

11511-21H01

$167.39

2

GASKET, OIL PAN

11489-21H00

$19.66

3

BOLT

01547-0625A

$2.01

4

GASKET (5.8X13X1.2)

09168-06023

$2.35

5

PLUG (14X20) | OIL DRAIN

09247-14036

$6.17

6

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

7

PLUG (10X10)

09248-10010

$4.17

8

GASKET (10X14X3.6)

09168-10002

$2.13

9

CAP, OIL RELIEF VALVE

11512-44G00

$18.71

10

BOLT

01547-0620A

$2.03

11

STRAINER ASSY,ENG OIL

16520-44G00

$54.75

12

BOLT

01550-0616A

$1.97

13

O RING (D:2.62,ID:20.3)

09280-19008

$5.50

14

VALVE ASSY, OIL RELIEF

16440-24F00

$50.04

15

.O RING (D:1.9,ID:13)

09280-13004

$2.17

16

PUMP ASSY,ENG OIL

16400-35F00

$194.98

17

O RING

16491-35F00

$6.22

18

BOLT

01547-0620A

$2.03

19

GEAR, OIL PUMP DRIVE (NT:33)

16321-35F01

$69.38

20

GEAR, OIL PUMP DRIVEN (NT:35)

16331-35F00

$74.08

21

SHIM (10X18X0.5)

09181-10158

$1.97

22

PIN (4X15.8)

09261-04009

$1.56

23

CIRCLIP

08331-31109

$1.78

24

SWITCH ASSY,OIL PRESSURE This part replaces 37820-33D10.

37820-33D11

$25.13

25

.BOLT

37822-33D00

$4.35

26

PIPE, OIL GALLERY

11281-44G00

$13.85

27

O RING (D:1.9,ID:13)

09280-13004

$2.17
