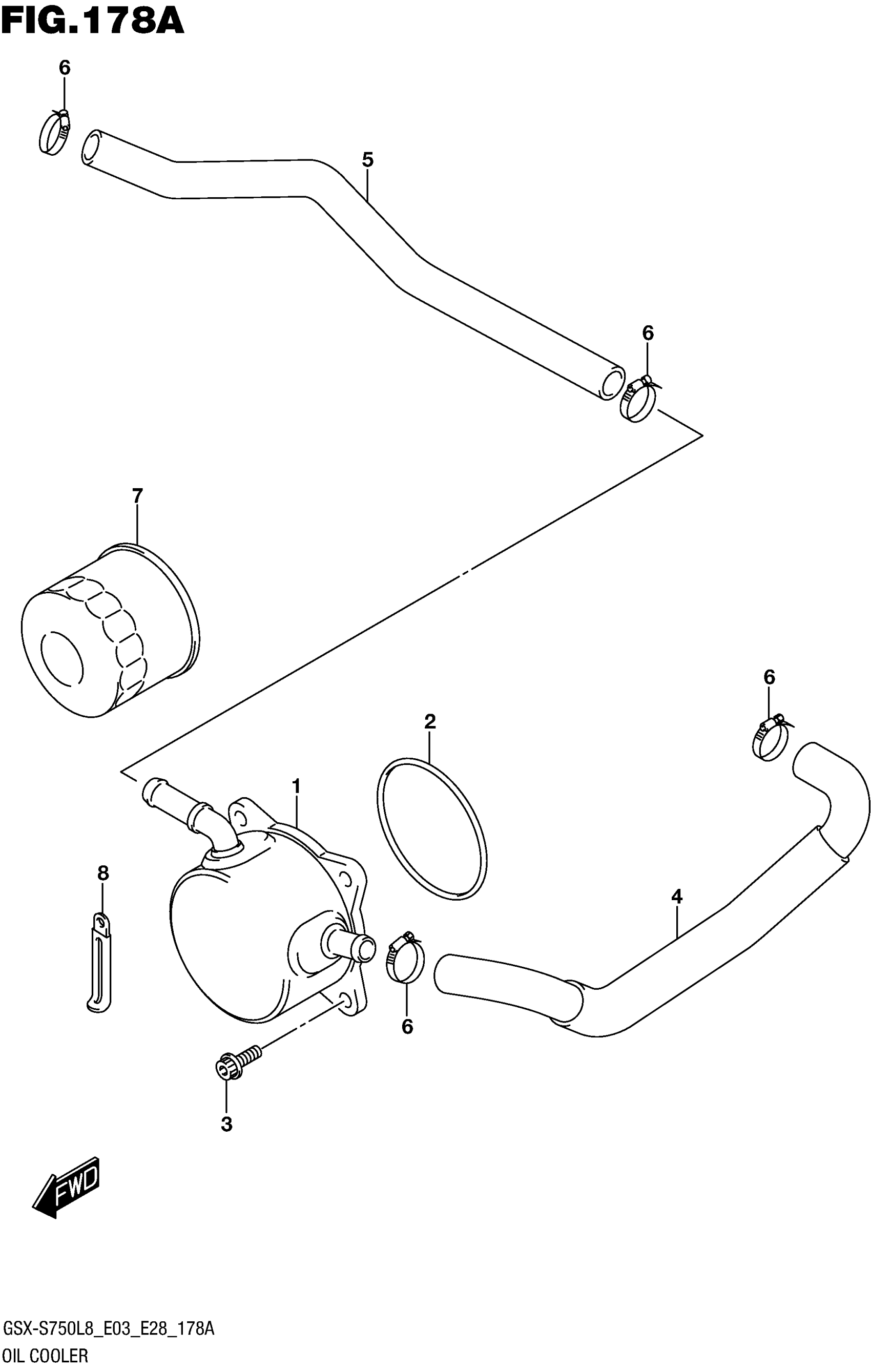

Suzuki GSX-S750AL8 (2018) OIL COOLER Diagram

#

Description

Price

1

COOLER ASSY,OIL

16600-29G00

$757.88

2

O RING (D:3.1,ID:63.9)

09280-64003

$5.09

3

BOLT (6X16)

09106-06099

$2.80

4

HOSE,OIL COOLER WATER INLET

16461-08J00

$36.13

5

HOSE, OIL COOLER WATER OUTLET

16471-08J00

Unavailable

6

CLAMP

09402-22512

$9.37

7

FILTER ASSY, ENGINE OIL

16510-07J00

$11.99

8

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76
