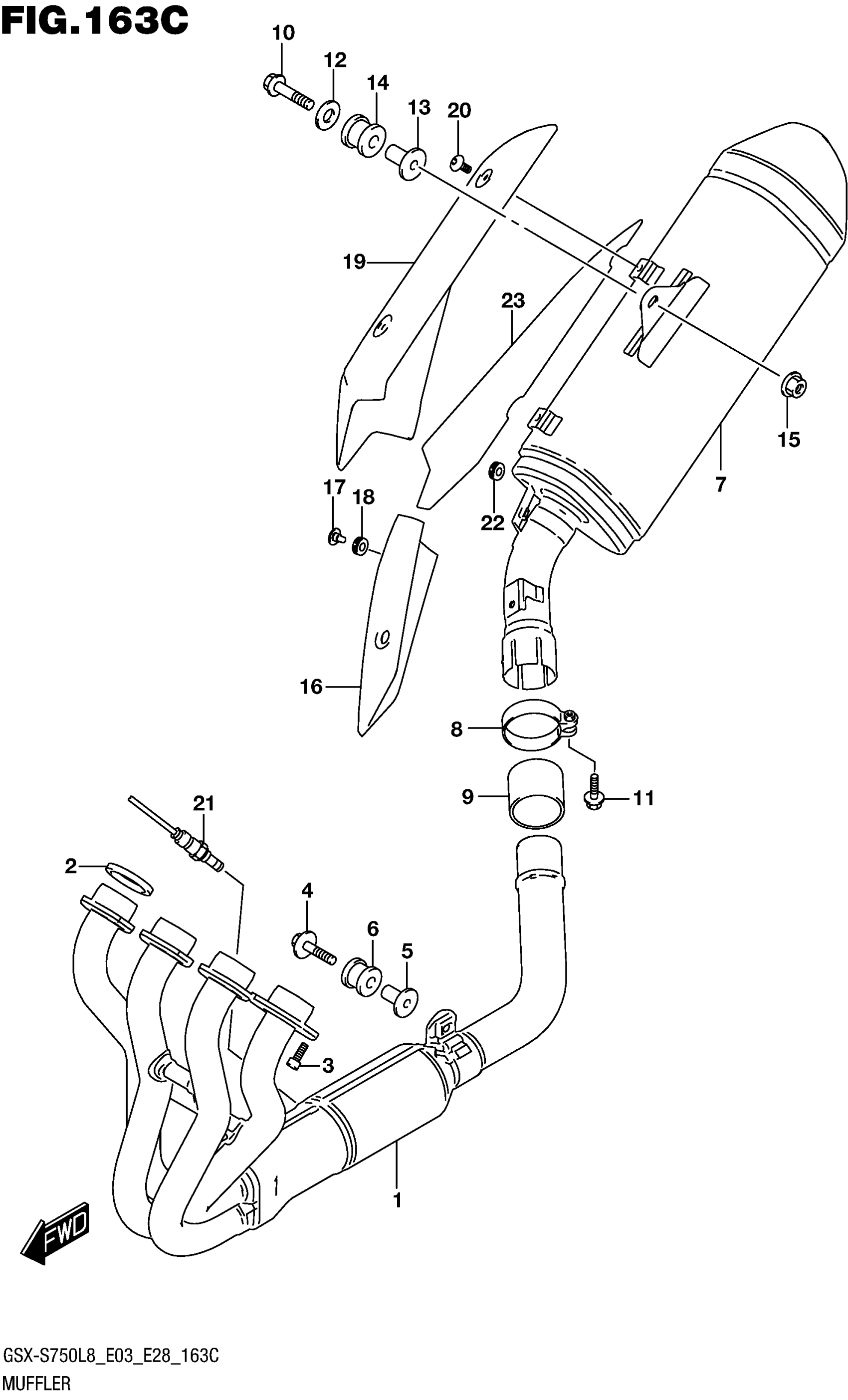

Suzuki GSX-S750AL8 (2018) MUFFLER (GSX-S750ZL8 E03) Diagram

#

Description
Price

1

EXHAUST COMP This part replaces 14100-13K00.

14100-13K01

$946.43

2

GASKET, EXHAUST PIPE

14181-46E10

$7.22

3

BOLT (8X25)

09106-08178

$3.24

4

BOLT (8X45)

09118-08152-A05

$5.24

5

SPACER (8.6X12X24.2)

09180-08152

$5.83

6

CUSHION

09320-12077

$11.78

7

BODY,MUFFLER This part replaces 14310-13K30-H01.

14310-13K31-H01

$521.08

8

CLAMP,MUF CONN

14459-08J00

$24.60

9

CONNECTOR, MUFFLER

14771-42F31

$27.33

10

BOLT (8X45)

09106-08164

$6.38

11

BOLT (8X40)

09106-08162

$4.77

12

WASHER (8.5X28X1.5)

09160-08142

$2.76

13

SPACER (8.6X12X24.2)

09180-08152

$5.83

14

CUSHION

09320-12048

$5.11

15

NUT

08361-2508A

$1.97

16

COVER, MUFFLER FRONT

14770-13K10

$76.02

17

SCREW (6X12)

09139-06124

$4.52

18

CUSHION (8.4X18X6)

09320-08066

$8.24

19

COVER, MUFFLER CENTER

14781-13K10

$144.08

20

SCREW (6X10)

09139-06078

$2.79

21

SENSOR,OXYGEN

18213-18K00

$315.67

22

CUSHION (4X12X8) This part replaces 09320-04009.

09320-04013

$1.85

23

SHIELD, MUF COVER HEAT This part replaces 14784-13K00.

14784-13K01

Unavailable
