Partiron

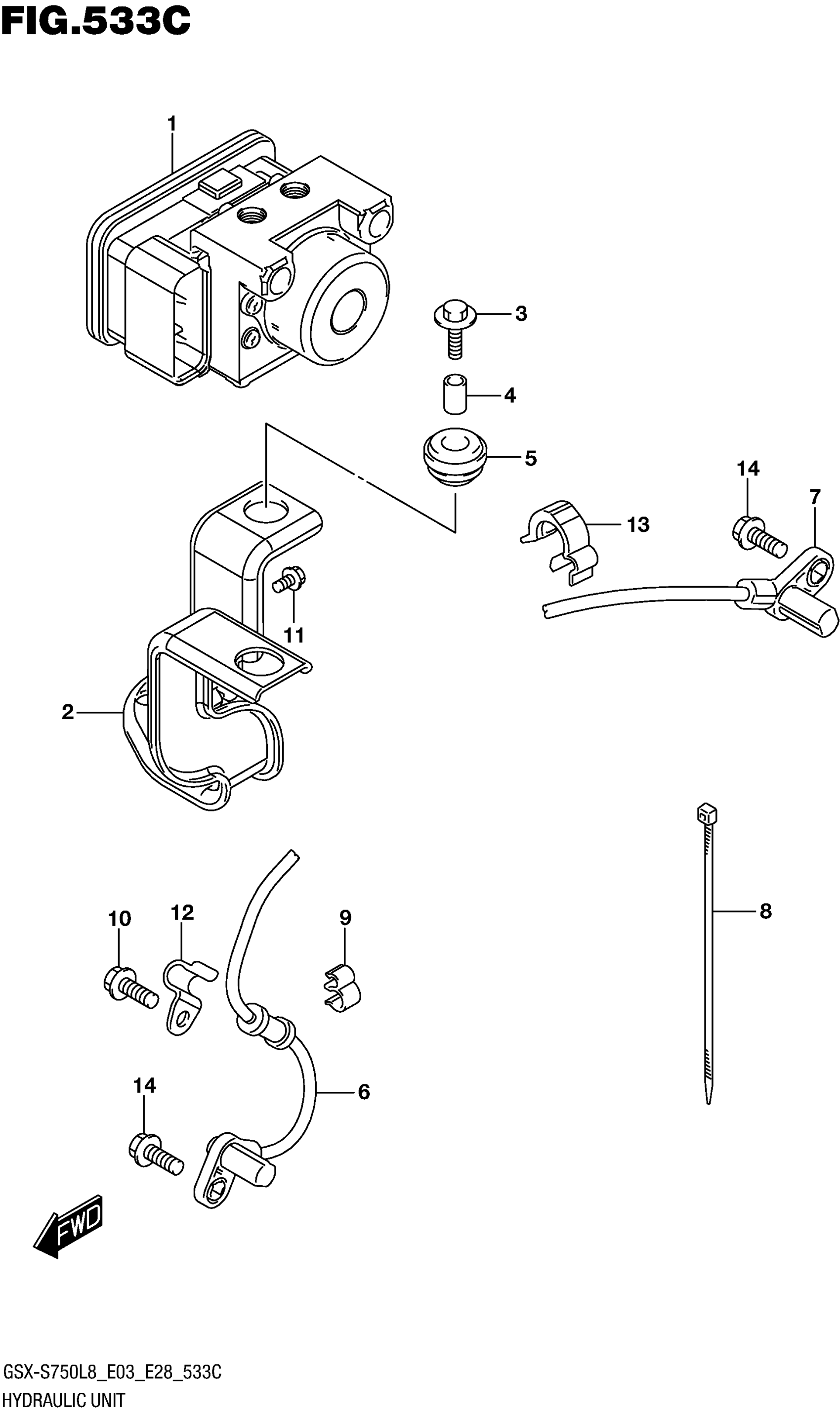

Suzuki GSX-S750AL8 (2018) HYDRAULIC UNIT (GSX-S750AZL8 E28) Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-13K00

$1,321.00

2

HOLDER, HYDRAULIC UNIT

55661-13K00

$31.22

3

BOLT (6X25)

09116-06150

$2.59

4

SPACER, HYDRAULIC UNIT

55662-10G00

Unavailable

5

RUBBER, HYDR UNIT MTG

55663-10G10

Unavailable

6

SENSOR, FRONT WHEEL ABS

55710-13K10

$222.23

7

SENSOR, REAR WHEEL ABS This part replaces 65710-13K10.

65710-13K20

$70.92

8

CLAMP (L:145)

09407-14407

$3.57

9

CLAMP

09408-00266

$2.51

10

BOLT

01547-0616B

$2.45

11

BOLT

01547-0610A

$2.45

12

CLAMP, SENSOR LEAD FRONT NO.1

55731-15H00

$4.83

13

CLAMP

09408-00307

$2.97

14

BOLT

01547-0616B

$2.45
