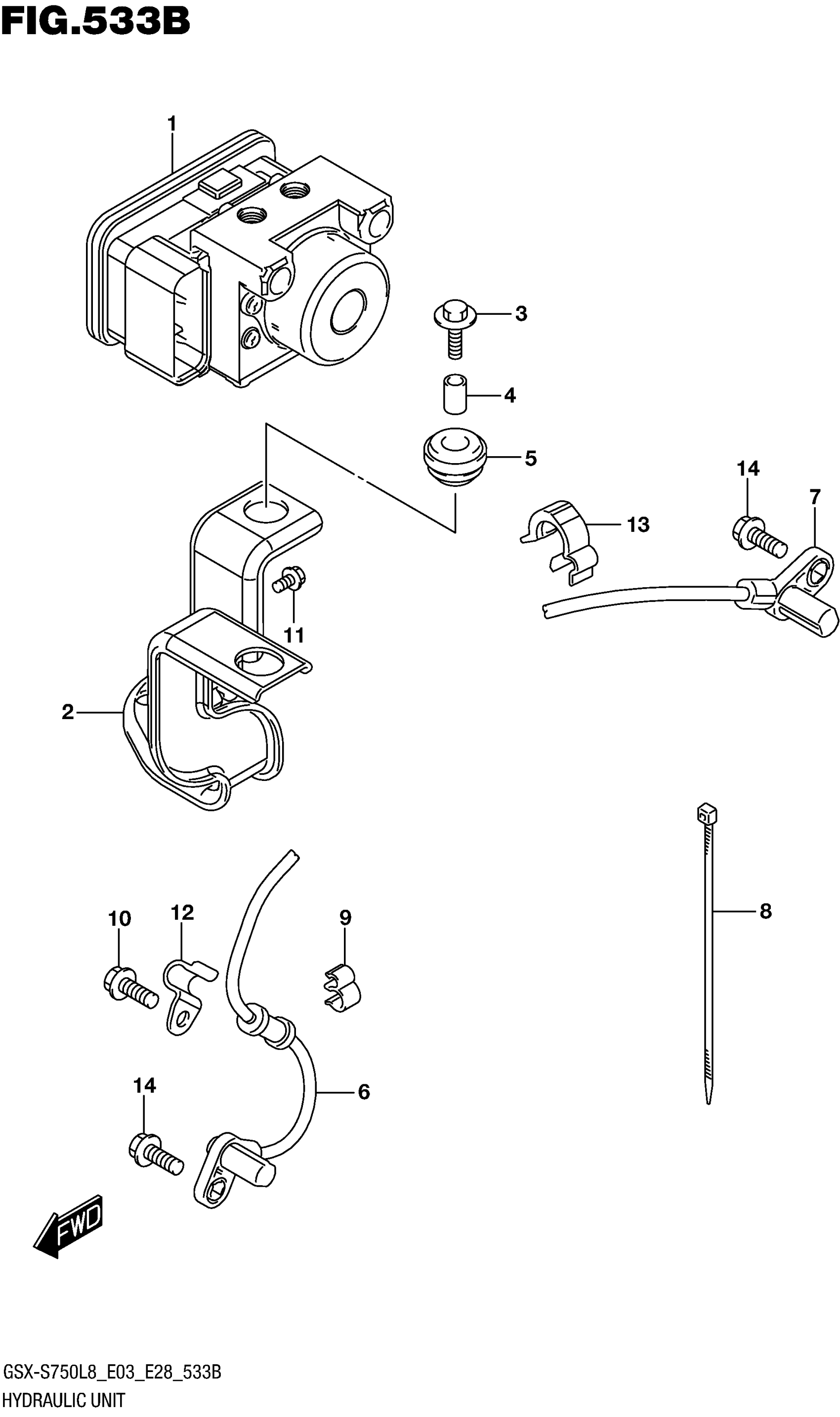

Suzuki GSX-S750AL8 (2018) HYDRAULIC UNIT (GSX-S750AL8 E33) Diagram

#

Description
Price

1

UNIT ASSY, HYDRAULIC ABS

55610-13K00

$1,442.27

2

HOLDER, HYDRAULIC UNIT

55661-13K00

$35.23

3

BOLT (6X25)

09116-06150

$2.61

4

SPACER, HYDRAULIC UNIT

55662-10G00

Unavailable

5

RUBBER, HYDR UNIT MTG

55663-10G10

Unavailable

6

SENSOR, FRONT WHEEL ABS

55710-13K10

$249.62

7

SENSOR, REAR WHEEL ABS This part replaces 65710-13K10.

65710-13K20

$79.67

8

CLAMP (L:145)

09407-14407

$2.80

9

CLAMP

09408-00266

$2.69

10

BOLT

01547-0616B

$2.43

11

BOLT

01547-0610A

$1.47

12

CLAMP, SENSOR LEAD FRONT NO.1

55731-15H00

$5.47

13

CLAMP

09408-00307

$3.22

14

BOLT

01547-0616B

$2.43
