Description

Price

1

HEADLAMP ASSY This part replaces 35100-13K00.

35100-13K10

$373.58

2

.COVER, SOCKET

35152-13K00

$25.38

3

.CORD ASSY

35171-13K00

$47.32

4

BULB (12V,60/55W) This part replaces 09471-12185.

09471-12060

$23.37

5

.BULB (12V5W)

09471-12216

$4.99

6

CUSHION,FUEL TANK COVER This part replaces 44294-43H00.

44294-43H11

$2.39

7

CUSHION, BRACE

51831-21D00

$4.50

8

SCREW

03541-0516A

$1.41

9

SCREW (6X20)

09139-06126

$3.75

10

CUSHION

09320-09501

$2.13

11

REFLEX REFLECTOR ASSY,FR SIDE This part replaces 35950-13K00.

35950-13K01

$16.08

12

BOLT

09119-06109

$14.43

13

WASHER (8.5X18X1)

09160-08043

$1.81

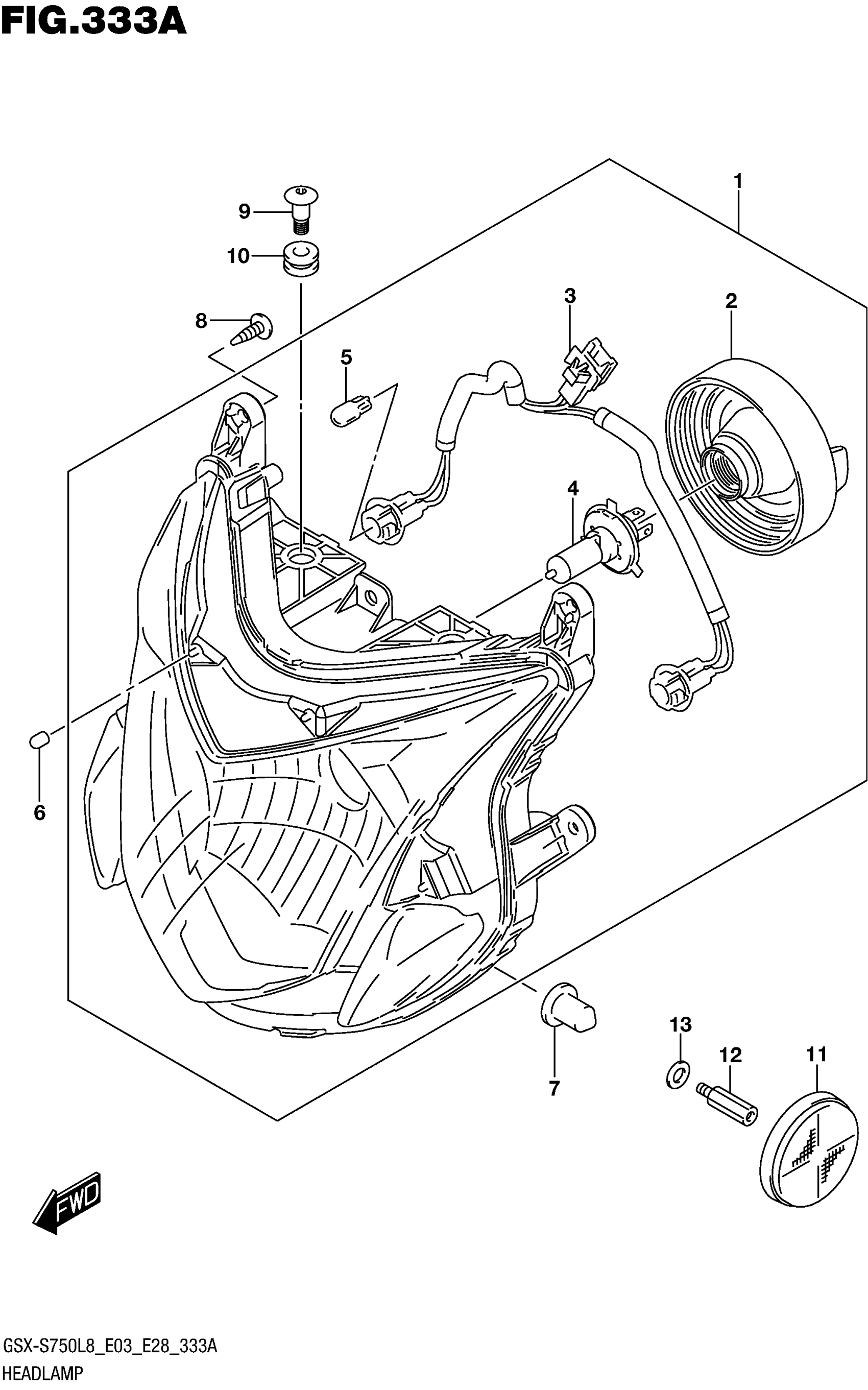

Suzuki GSX-S750AL8 (2018) HEADLAMP Diagram
