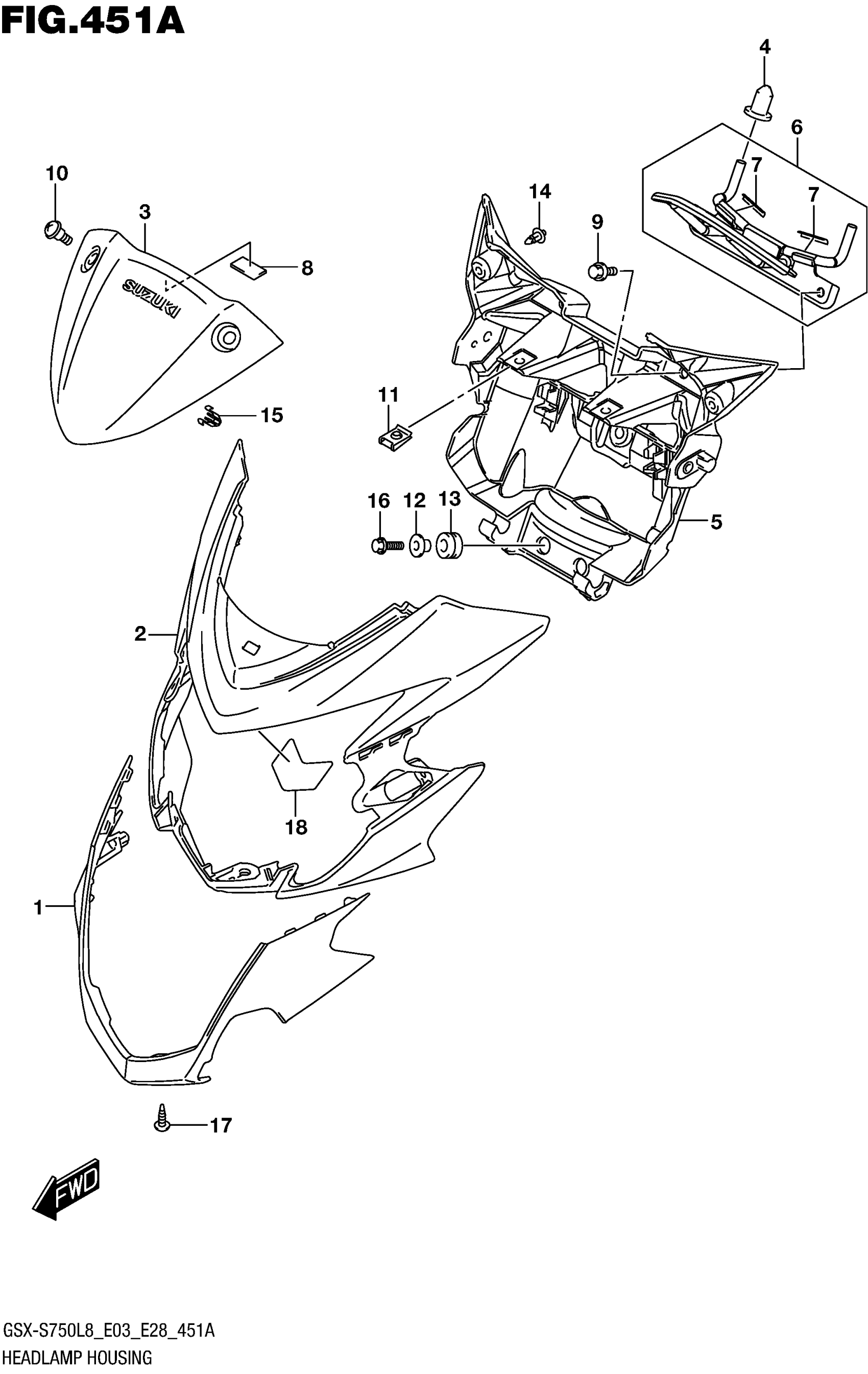

Suzuki GSX-S750AL8 (2018) HEADLAMP HOUSING Diagram

#

Description
Price

1

COVER, HEADLAMP FRONT

51831-13K00

$41.80

2-1

COVER, HEADLAMP (RED) | FOR YVZ

51821-13K00-YVZ

$247.63

2-2

COVER, HEADLAMP (BLUE) | FOR KEL

51821-13K00-YSF

$247.63

2-3

COVER, HEADLAMP (BLACK) | FOR YKV

51821-13K00-YKV

$255.53

3

COVER, METER

51811-13K00

$45.55

4

CUSHION, METER BRACE This part replaces 51831-30H00.

51831-30H10

$2.80

5

COVER, HEADLAMP REAR

51841-13K00

$52.73

6

BRACE, METER

51800-13K00

$87.67

7

.TAPE (6X25X0.13)

94443-06G00

$2.97

8

CUSHION (10X30X6)

33652-47F00

$3.38

9

BOLT

09111-06107

$2.66

10

SCREW

09139-05503

$2.71

11

NUT

09148-06020

$4.01

12

WASHER

09169-06062

$2.50

13

CUSHION

09320-09501

$2.06

14

CLIP (BLACK)

09409-06314-5PK

$2.80

15

CLIP

09409-08326

$2.45

16

BOLT

01550-0620A

$1.97

17

SCREW

03541-0516A

$1.37

18

SHIELD, HEADLAMP COVER HEAT

51822-13K00

$10.08

19

COLOR :

SPECIAL NOTE

Unavailable

19

KEL=YSF(BLUE),YVB(BLACK)

SPECIAL NOTE

Unavailable
