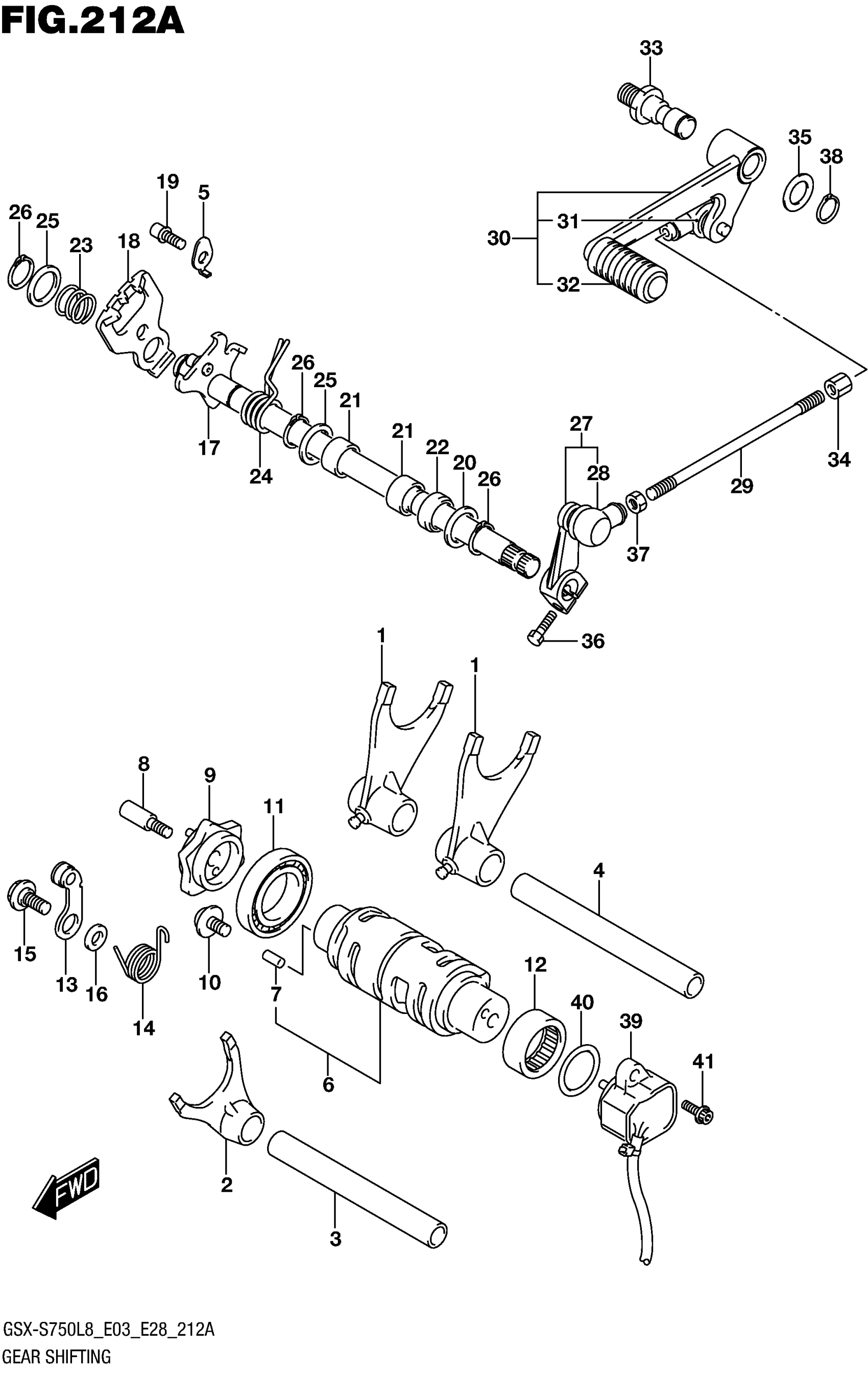

Suzuki GSX-S750AL8 (2018) GEAR SHIFTING Diagram

FORK, GEAR SHIFT, NO.1

25211-35F11

$86.59

FORK, GEAR SHIFT, NO.3

25231-35F11

$105.82

SHAFT,GEAR SHIFT FORK (L:110)

25411-26D01

$25.68

SHAFT, GEAR SHIFT FORK, NO.1

25411-35F00

$29.25

RETAINER, SHIFT FORK SHAFT

25451-35F00

$6.05

CAM,GEAR SHIFT

25310-35F00

$256.53

PIN (4X13.8)

04221-04089

$1.49

BOLT, GEAR SHIFT CAM PLATE

25312-42F01

$7.95

PLATE, GEAR SHIFT CAM

25381-13E30

$56.68

SCREW (6X12)

09136-06147

$3.20

BEARING (25X47X8)

09262-25006

$25.54

BEARING (25X32X12) | LH

09263-25018

$21.39

STOPPER, SHIFT CAM

25350-35F00

$34.15

SPRING, SHIFT CAM STOPPER ARM

25355-05G00

Unavailable

BOLT (6X14.3)

09111-06041

$2.61

WASHER

08211-06141

$1.59

SHAFT,GEAR SHIFT

25510-08J00

Unavailable

PLATE,GEAR SHIFT CAM DRIVE This part replaces 25512-06G10.

25512-06G20

$24.37

STOPPER, GEAR SHIFT ARM

25671-35F00

$4.58

WASHER (14X29X0.8) | LH

09160-14016

$1.93

BEARING (14X20X12)

09263-14027

$13.52

OIL SEAL (14X22X7.3)

09283-14006

$6.70

SPRING

09440-17009

$1.71

SPRING

09444-20001

$5.24

SHIM (14X22X1)

09181-14167

$2.53

CIRCLIP

08331-3114A

$1.91

ARM,GEAR SHIFT LINK This part replaces 25520-06G20.

25520-06G21

$55.22

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

ROD, GEAR SHIFT LINK

25525-12B10

$9.87

LEVER ASSY,GEAR SHIFT This part replaces 25600-08J10.

25600-08J11

$59.47

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

.RUBBER, GEAR SHIFT PEDAL

25652-20C00

$5.44

SHAFT, GEAR SHIFT LEVER

25617-03F10

$12.33

NUT

09140-06025

$2.05

WASHER (12.5X20X1)

09160-12011

$1.54

BOLT

01547-0620A

$2.03

NUT

08310-0006A

$1.84

CIRCLIP

08331-3112A

$1.78

SENSOR ASSY,GEAR POSITION This part replaces 37730-08J00.

37730-08J01

$87.30

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

BOLT (5X16)

09106-05023

$2.92
