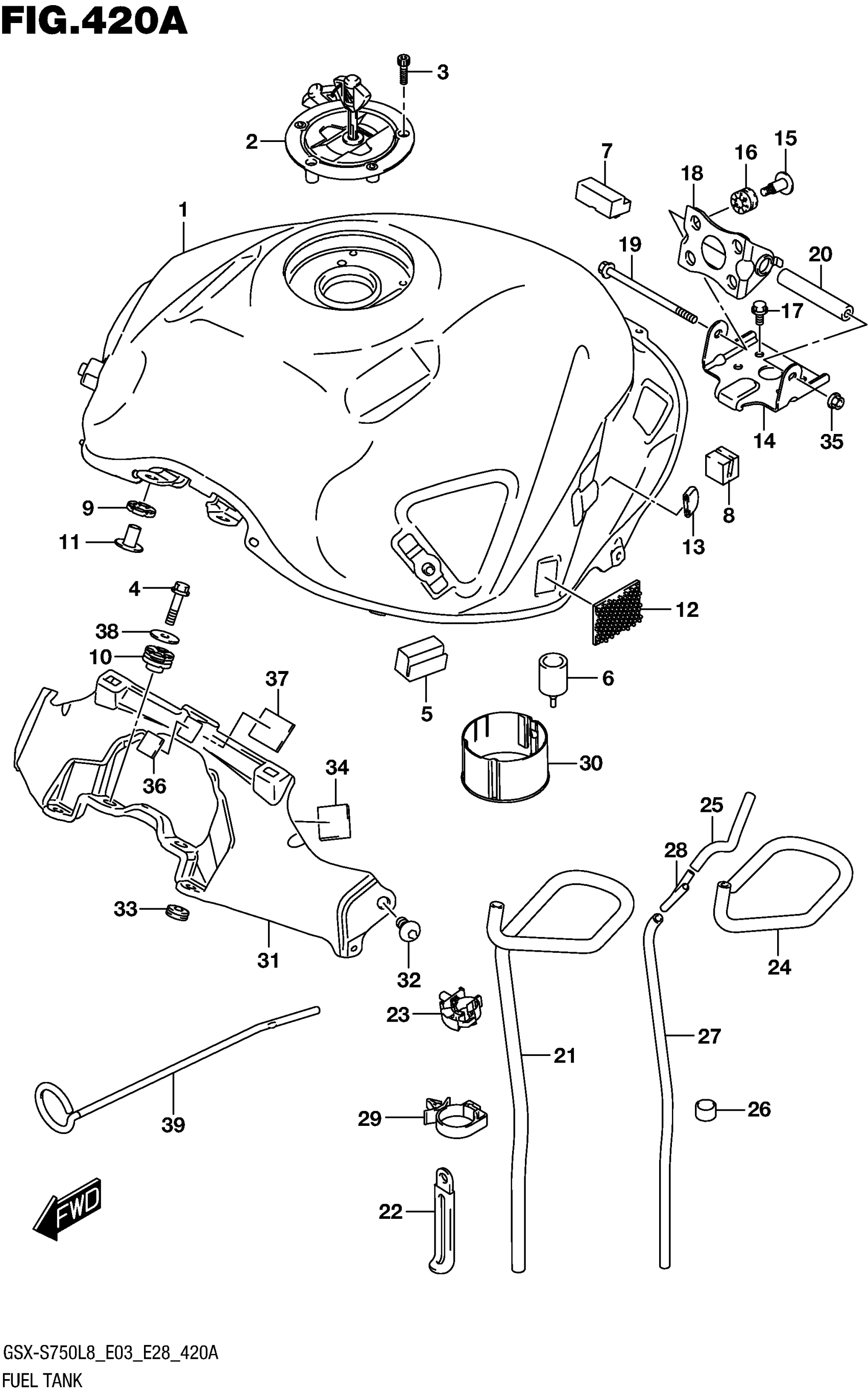

Suzuki GSX-S750AL8 (2018) FUEL TANK (GSX-S750L8 E03) Diagram

TANK ASSY, FUEL (RED) | FOR YVZ

44100-13K00-YVZ

$1,246.55

TANK ASSY, FUEL (BLACK) | FOR KEL

44100-13K00-YVB

Unavailable

CAP SET,FUEL TANK FILLER

44200-17820

$242.68

BOLT, FUEL TANK FILLER CAP

44244-11J00

$3.76

BOLT

07120-0630A

$4.00

CUSHION, FUEL TANK SIDE This part replaces 44541-08J00.

44541-08J01

$6.15

CUSHION,FUEL TANK RR

44542-41G00

$7.04

CUSHION, FUEL TANK REAR

44543-13K00

$11.38

CUSHION, FUEL TANK REAR

44544-13K00

$11.38

CUSHION, FUEL TANK FR LWR

44511-13K00

$6.75

CUSHION, FUEL TANK FR UPR

44512-13K00

$16.70

SPACER, FUEL TANK FRONT

44512-17K00

$6.75

FASTENER

44572-13G00

$10.13

CUSHION,FUEL TANK COVER SIDE This part replaces 44542-08J00.

44542-08J01

$4.12

BRACKET, FUEL TANK RR NO.2

44551-13K00

Unavailable

SCREW (6X24)

09139-06203

Unavailable

CUSHION (8X18X16)

09320-08089

Unavailable

BOLT

01550-0612A

$1.97

BRACKET, FUEL TANK REAR

44530-04K00

Unavailable

BOLT (6X100)

09106-06135

$6.02

SPACER, FUEL TANK REAR

44561-18G00

$15.52

HOSE, FUEL TANK DRAIN

44423-13K00

$30.60

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.76

CLAMP

09403-18307

$3.38

HOSE,FUEL TANK BRTHR NO.1

44424-13K00

Unavailable

HOSE,FUEL TANK BRTHR NO.3 This part replaces 44424-15H10.

44424-15H11

$15.48

HOSE, BREATHER CLAMP

09352-13162-010

Unavailable

HOSE (5X8.2X360) This part replaces 09352-50823-360.

09352-50005-360

$8.38

3 WAY

09367-06007

$3.17

CLAMP

09403-18409

$2.40

VESSEL,FUEL TANK INNER This part replaces 44121-17K00.

44121-17K01

$18.47

BRACKET, FUEL TANK FRONT

44521-13K00

$49.77

BOLT (6X16)

09113-06013

$2.43

CUSHION

09320-06504

$4.47

CUSHION, FUEL TANK BRACKET

44556-33H00

$7.01

NUT

08319-3106A

$2.01

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

$1.73

FASTENER

44572-13G00

$10.13

WASHER

09169-06016

$1.50

STAY,FUEL TANK | OPT

44574-16G00

$30.17

COLOR :

SPECIAL NOTE

Unavailable

KEL=YSF(BLUE),YVB(BLACK)

SPECIAL NOTE

Unavailable
