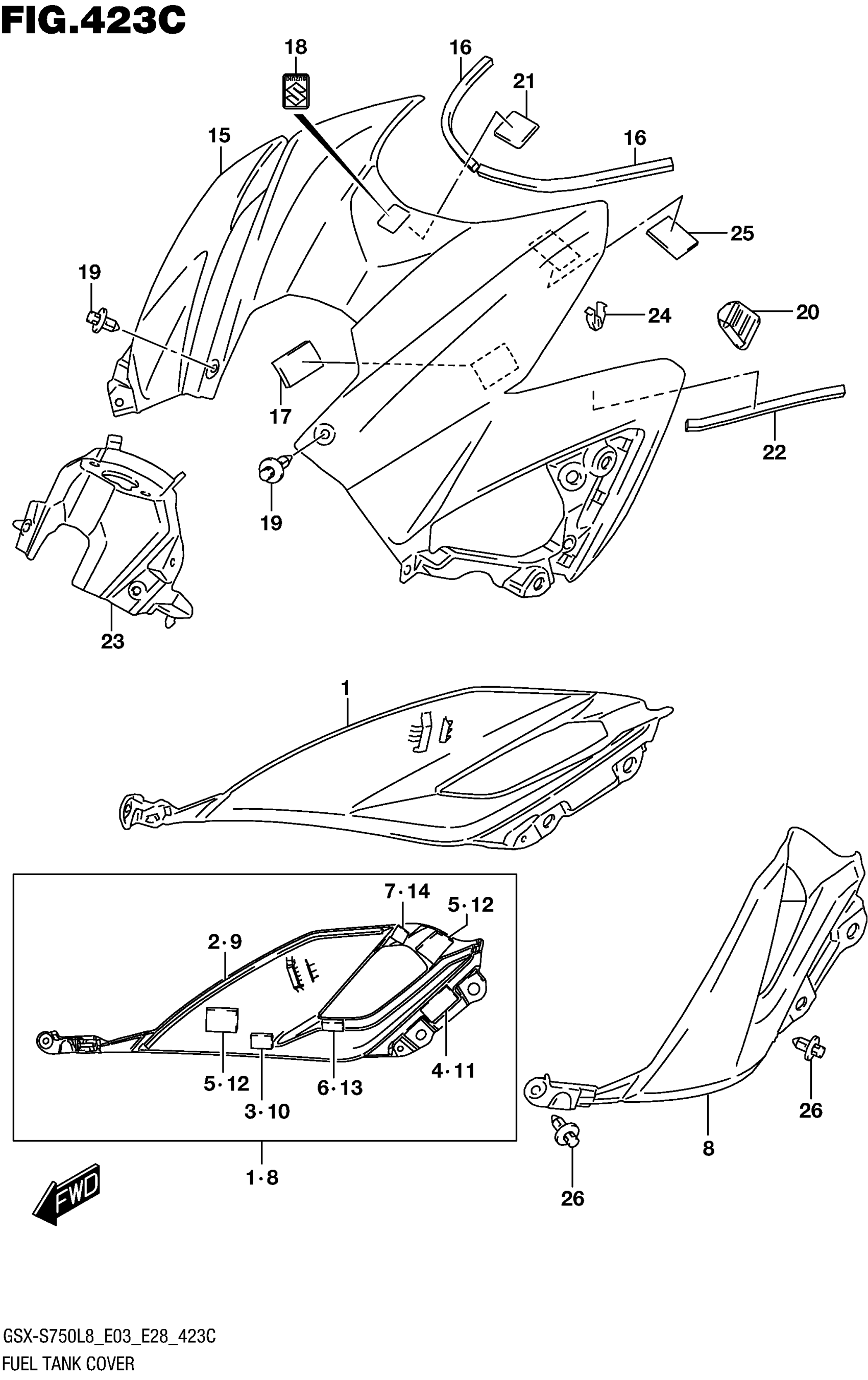

Suzuki GSX-S750AL8 (2018) FUEL TANK COVER (GSX-S750ZL8 E03) Diagram

#

Description
Price

1

COVER,FUEL TANK SIDE RH

44250-13K00

$55.32

2

.CUSHION, TANK COVER SIDE NO.

44252-13K00

$2.96

3

CUSHION,TANK COVER SIDE NO.4

44253-13K00

$6.21

4

.CUSHION, TANK COVER SIDE NO.

44254-13K00

$8.54

5

.FASTENER

44572-13G00

$10.13

6

.CUSHION, TANK COVER SIDE NO.

47163-10FA0

$5.13

7

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

$1.73

8

COVER,FUEL TANK SIDE LH

44260-13K00

$54.30

9

.CUSHION, TANK COVER SIDE NO.

44252-13K00

$2.96

10

CUSHION,TANK COVER SIDE NO.4

44253-13K00

$6.21

11

.CUSHION, TANK COVER SIDE NO.

44254-13K00

$8.54

12

.FASTENER

44572-13G00

$10.13

13

.CUSHION, TANK COVER SIDE NO.

47163-10FA0

$5.13

14

.CUSHION (15X15X1) This part replaces 94429-13E00.

94429-20K00

$1.73

15

COVER,FUEL TANK FRONT (BLACK) This part replaces 44291-13K00-YKV.

44291-13K01-YKV

$180.28

16

CUSHION,TANK COVER FR NO.1

44292-13K00

$4.30

17

CUSHION, TANK COVER FRONT NO.

47163-10FA0

$5.13

18

EMBLEM "S"

68281-47HA0

$7.11

19

CLIP (BLACK)

09409-06322-5PK

$2.84

20

CUSHION,TANK COVER FR NO.2

44293-13K00

$7.12

21

CUSHION,TANK COVER UPR NO.3 This part replaces 44294-04K00.

44294-04K01

$4.47

22

CUSHION,TANK COVER FR NO.4

44294-13K00

$4.28

23

COVER, IGNITION SWITCH

44271-13K00

$33.25

24

CLIP

09409-08326

$2.45

25

FASTENER,FRAME COVER (15X25)

47912-37H00

$9.32

26

CLIP (BLACK)

09409-06322-5PK

$2.84
