Description

Price

1

WHEEL, FRONT (17M/CXMT3.50)

54111-13K00-019

$742.35

1

(BLACK)

54111-13K00-019

$742.35

2

SPACER, FRONT WHEEL BEARING

54731-14J00

$21.58

3

BEARING This part replaces 09262-22035.

09262-22049

$43.81

4

SEAL,OIL This part replaces 09283-28016.

09283-28028

$9.13

5

AXLE,FR

54711-14J00

$143.18

6

SPACER,FR AXLE,L

54751-14J00

$18.33

7

RING, SPEED SENSOR FRONT

54162-44H00

$23.73

8

BOLT

07130-0512A

$2.19

9

DISC,FRONT BRAKE,R

59210-13K00

$320.08

10

DISC,FRONT BRAKE,L

59220-13K00

$320.08

11

BOLT (8X21)

09106-08160

$3.57

12

TIRE, FRONT | BRIDGESTONE

55110-13K00

$357.25

12

(120/70ZR17M/C 58W) | BATTLAX HYPERSPORT S

55110-13K00

$357.25

13

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

$8.85

14-1

BALANCER, WHEEL NO.1 | 10G

55411-22H00

$8.60

14-2

BALANCER, WHEEL NO.2 | 20G

55412-22H00

$10.07

14-3

BALANCER, WHEEL NO.3 | 30G

55413-22H00

$11.47

15

NUT, FRONT AXLE

62994-47H00

$42.02

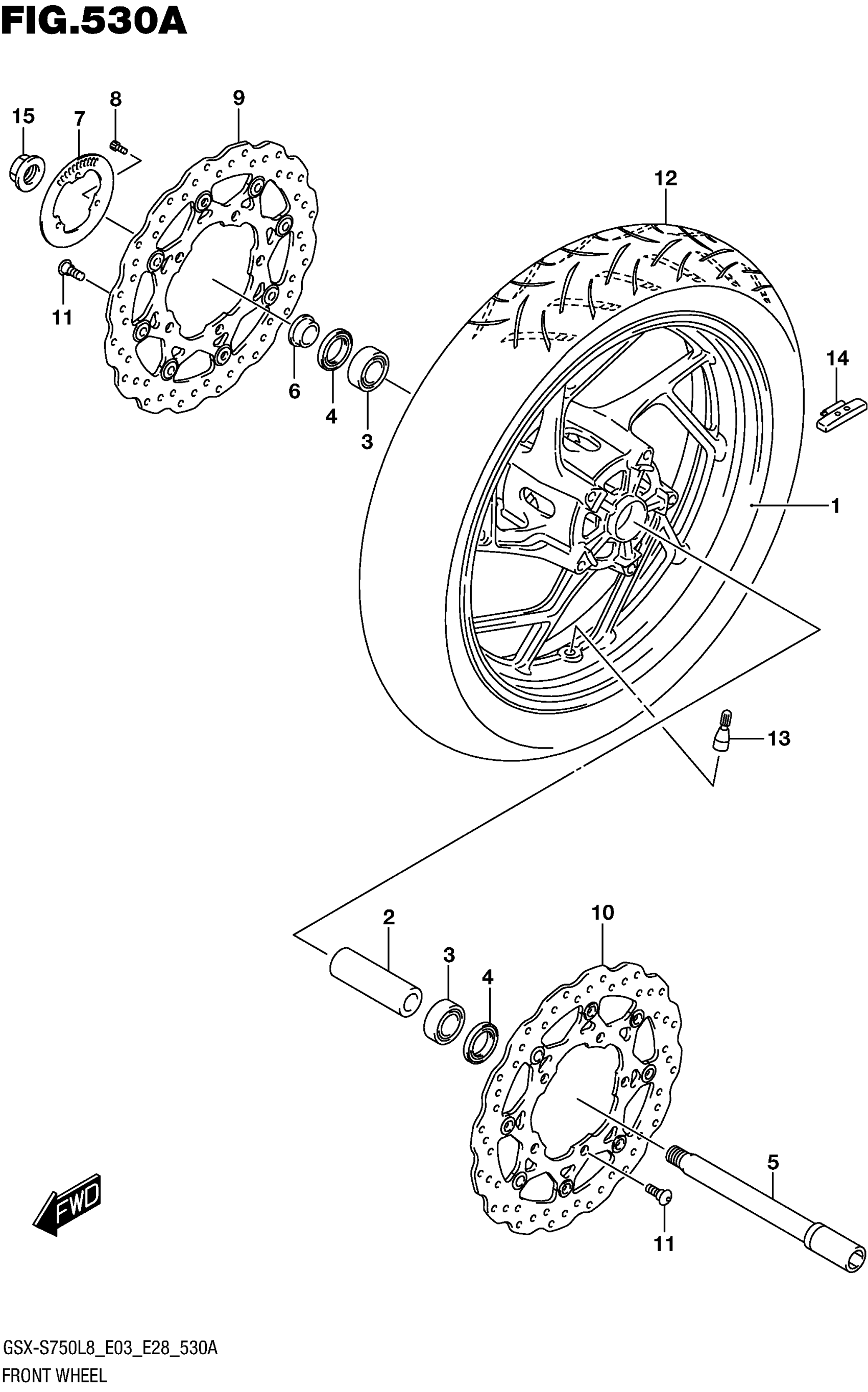

Suzuki GSX-S750AL8 (2018) FRONT WHEEL (GSX-S750L8 E03) Diagram
