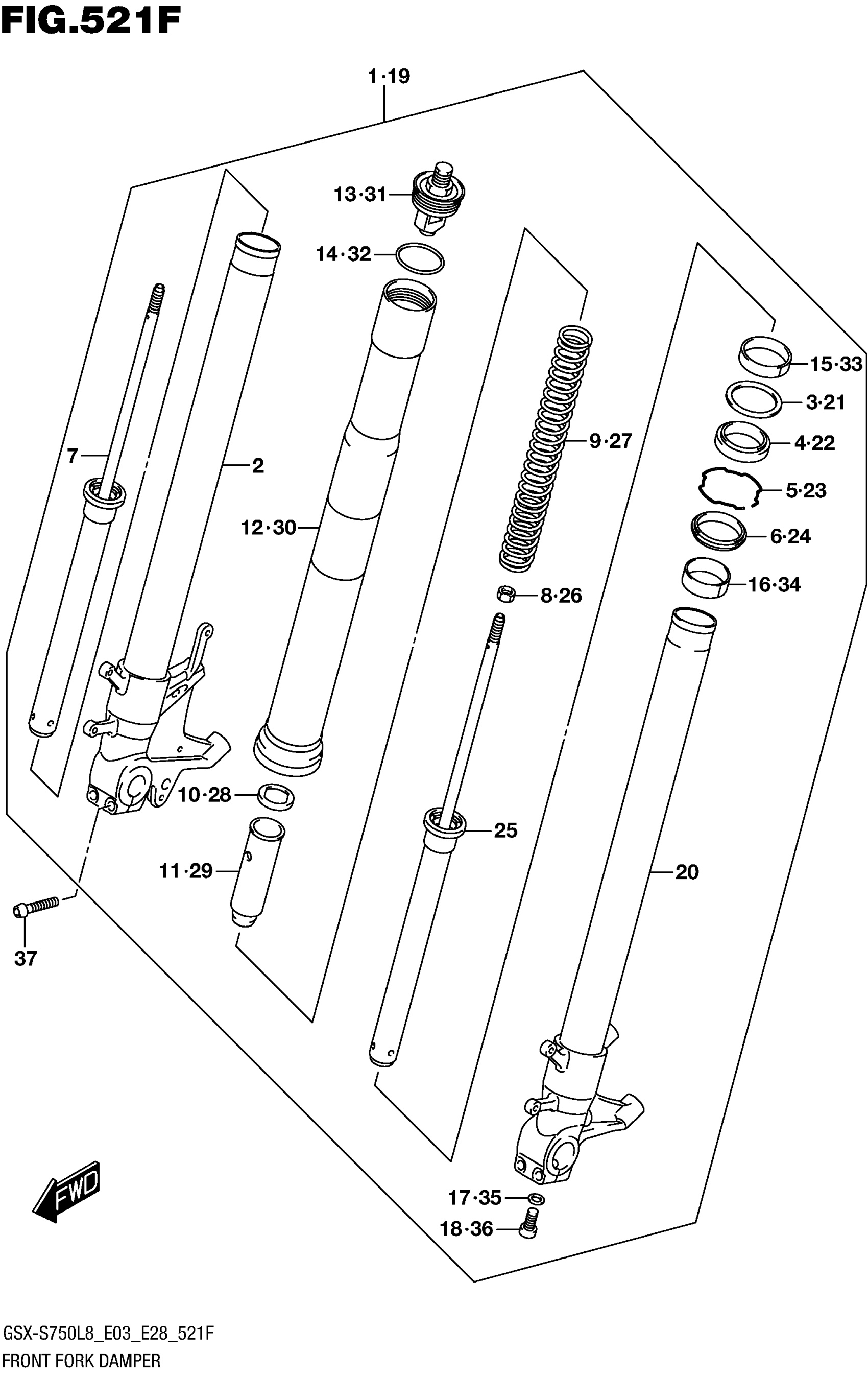

Suzuki GSX-S750AL8 (2018) FRONT FORK DAMPER (GSX-S750AL8 E33) Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH

51103-13K00

Unavailable

2

.TUBE, INNER RH

51110-13K00

$761.47

3

.WASHER

51158-05A00

$5.34

4

.OIL SEAL

51153-10G50

$18.94

5

.RING, OIL SEAL STOPPER

51156-49440

$4.75

6

.SEAL, DUST

51173-14F00

$21.12

7

.CYLINDER RH

51146-13K00

$273.72

8

.NUT, ROD

51352-13A60

$3.42

9

.SPRING

51171-13K00

Unavailable

10

.GUIDE, SPRING

51158-40F30

$11.75

11

.SPACER, SPRING

51176-40F30

$29.78

12

..TUBE, OUTER

51131-13K00

$577.90

13

..CAP

51351-13K00

Unavailable

14

.O RING

51117-39G20

$7.75

15

.BUSH, GUIDE

51152-13K00

$19.62

16

.PISTON

51121-26E10

$28.44

17

.GASKET

51148-41310

$2.14

18

.BOLT

51147-05H00

$6.10

19

DAMPER ASSY, FRONT FORK LH

51104-13K00

$1,470.42

20

.TUBE, INNER LH

51120-13K00

$761.47

21

.WASHER

51158-05A00

$5.34

22

.OIL SEAL

51153-10G50

$18.94

23

.RING, OIL SEAL STOPPER

51156-49440

$4.75

24

.SEAL, DUST

51173-14F00

$21.12

25

.CYLINDER LH

51156-13K00

$225.25

26

.NUT, ROD

51352-13A60

$3.42

27

.SPRING

51171-13K00

Unavailable

28

.GUIDE, SPRING

51158-40F30

$11.75

29

.SPACER, SPRING

51176-40F30

$29.78

30

..TUBE, OUTER

51131-13K00

$577.90

31

..CAP

51351-13K00

Unavailable

32

.O RING

51117-39G20

$7.75

33

.BUSH, GUIDE

51152-13K00

$19.62

34

.PISTON

51121-26E10

$28.44

35

.GASKET

51148-41310

$2.14

36

.BOLT

51147-05H00

$6.10

37

BOLT

51166-24F60

$5.10
