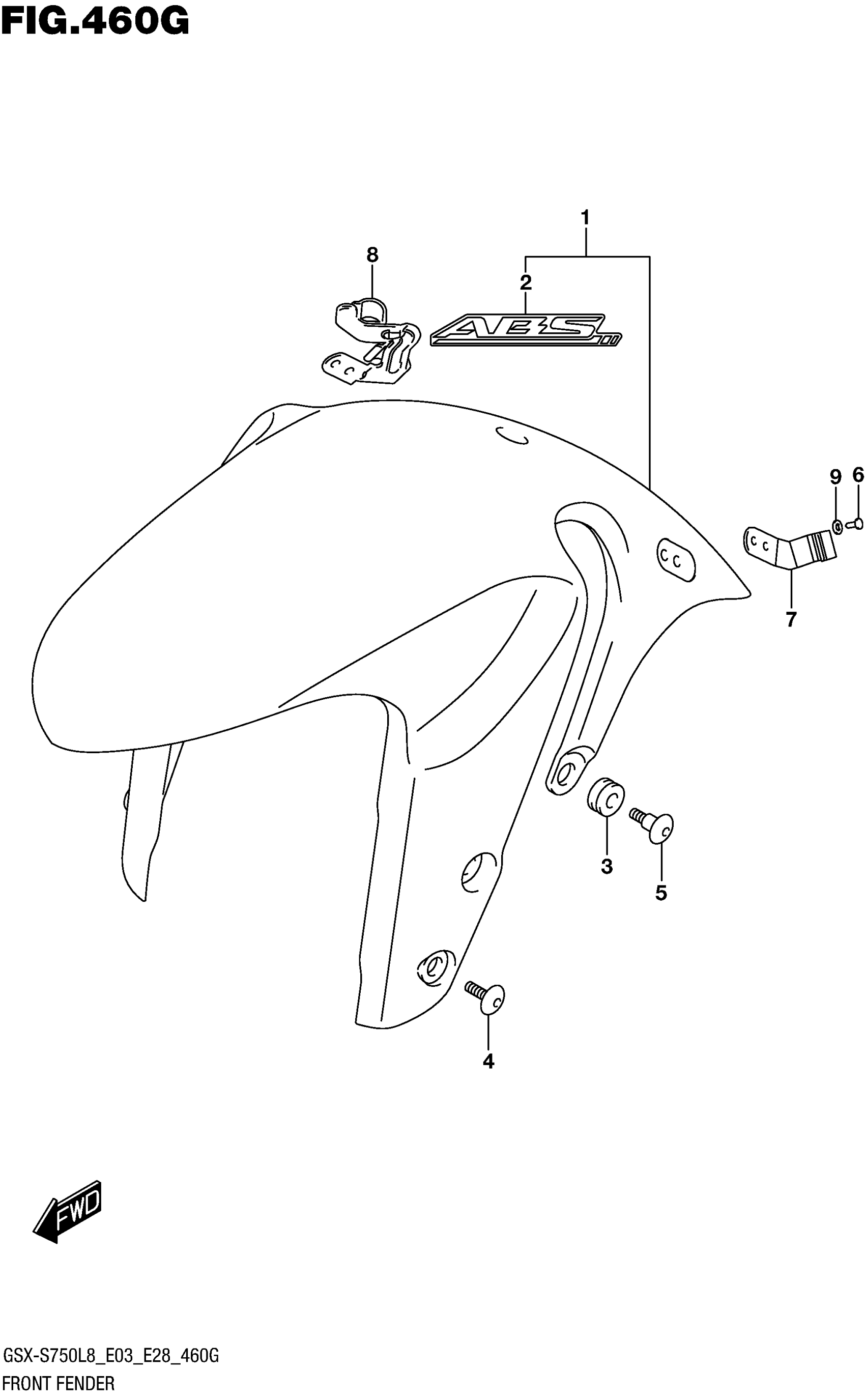

Suzuki GSX-S750AL8 (2018) FRONT FENDER (GSX-S750AZL8 E28) Diagram

#

Description
Price

1

FENDER,FRONT(BL This part replaces 53100-04K10-YKV.

53100-04K11-YKV

$205.37

2

EMBLEM,"ABS" This part replaces 68151-38G10-GWM.

68151-38G11-GWM

$14.48

3

CUSHION

09320-09016

$2.01

4

SCREW (6X16)

09139-06169

$2.88

5

SCREW (6X20)

09139-06190

$3.89

6

RIVET

09229-04038

$0.52

7

CLAMP,BRAKE HOSE LH

53118-13K00

$16.70

8

CLAMP,BRAKE HOSE RH

53120-13K00

$34.27

9

WASHER

08322-0104B

$0.25
