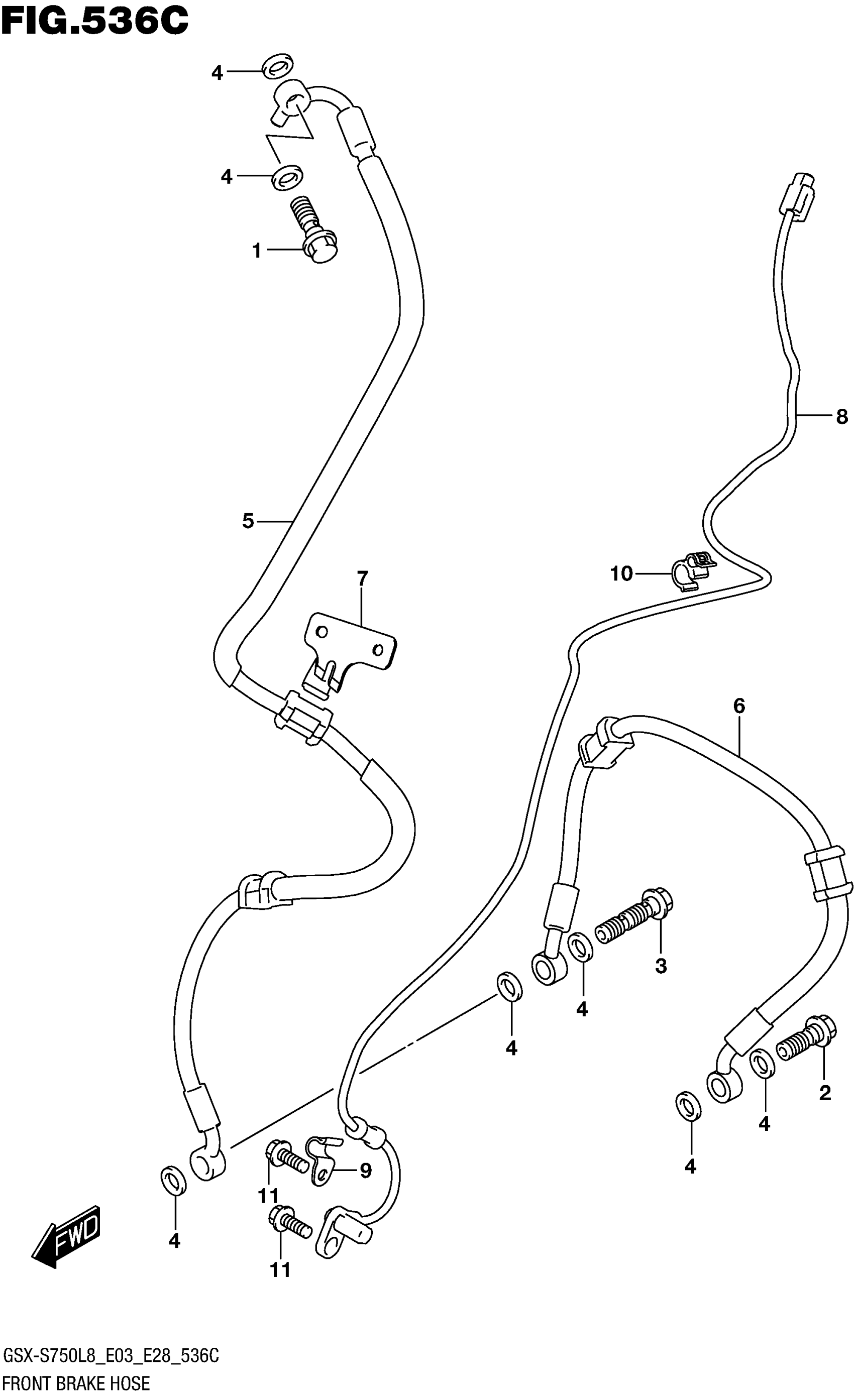

Suzuki GSX-S750AL8 (2018) FRONT BRAKE HOSE (GSX-S750ZL8 E03) Diagram

UNION This part replaces 09360-10042.

09360-10062

$6.43

UNION This part replaces 09360-10042.

09360-10062

$6.43

UNION

09360-10069

$6.20

WASHER (10X15X1.5)

09161-10009

$1.84

HOSE ASSY, FRONT BRAKE NO.1

59480-13K00

$111.83

HOSE, FRONT BRAKE NO.2

59240-13K00

$89.78

CLAMP, FRONT BRAKE HOSE NO.1

59261-13K00

Unavailable

SENSOR, FRONT WHEEL SPEED

55710-13K00

$211.40

CLAMP, SENSOR LEAD FRONT NO.1

55731-15H00

$4.83

CLAMP

09408-00266

$2.51

BOLT

01547-0616B

$2.45
