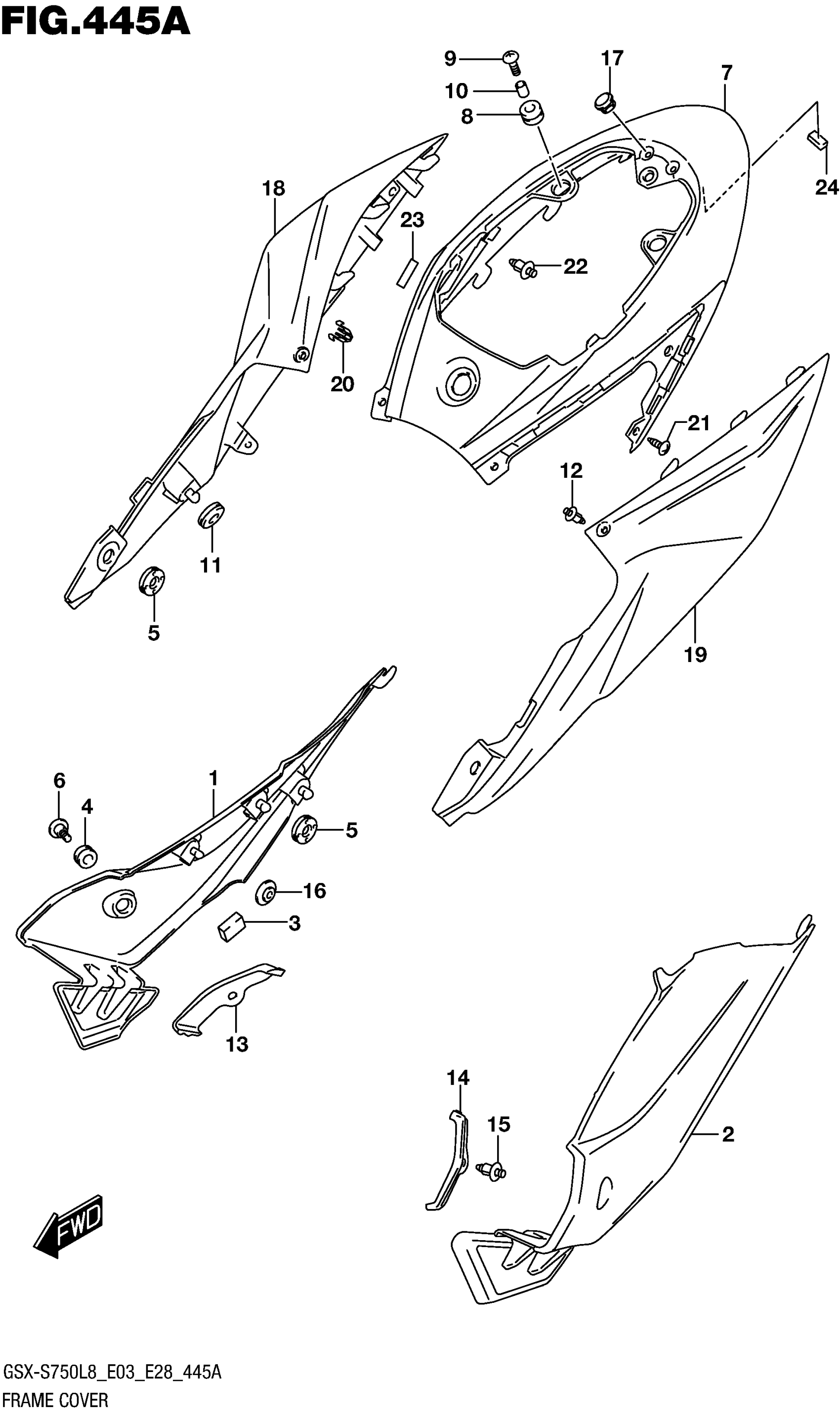

Suzuki GSX-S750AL8 (2018) FRAME COVER (FOR YVZ) Diagram

#

Description
Price

1

COVER, FRAME FRONT RH

47511-13K00

$163.55

2

COVER, FRAME FRONT LH

47611-13K00

$98.78

3

CUSHION

94422-06G00

$6.57

4

CUSHION

09320-09016

$2.01

5

CUSHION

09320-08028

$2.82

6

SCREW (6X20)

47118-08J00

$4.92

7

COVER, FRAME CENTER (BLACK)

47311-13K00-YKV

$246.50

8

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.80

9

SCREW (6X20)

09136-06105

$2.06

10

SPACER (6.5X10X7)

09180-06283

$1.97

11

CUSHION

09320-08018

$2.82

12

CLIP (BLACK)

09409-06314-5PK

$2.80

13

COVER,FRAME TOP RH

47711-08J00

$8.30

14

COVER,FRAME TOP LH

47811-08J00

$8.30

15

CLIP

09409-07333

$2.37

16

CUSHION

09320-06026

$4.45

17

CUSHION, SEAT MOUNT

45148-27J00

$19.43

18

COVER, FRAME RH (RED)

47110-13K00-YVZ

$147.37

19

COVER, FRAME LH (RED)

47210-13K00-YVZ

$147.37

20

CLIP

09409-08326

$2.53

21

SCREW

03541-0512B

$1.82

22

CLIP

09409-07333

$2.37

23

CUSHION (10X30X2)

44894-24A00

$1.86

24

CUSHION, FRAME COVER CTR NO.3

63211-26G00

$11.00
