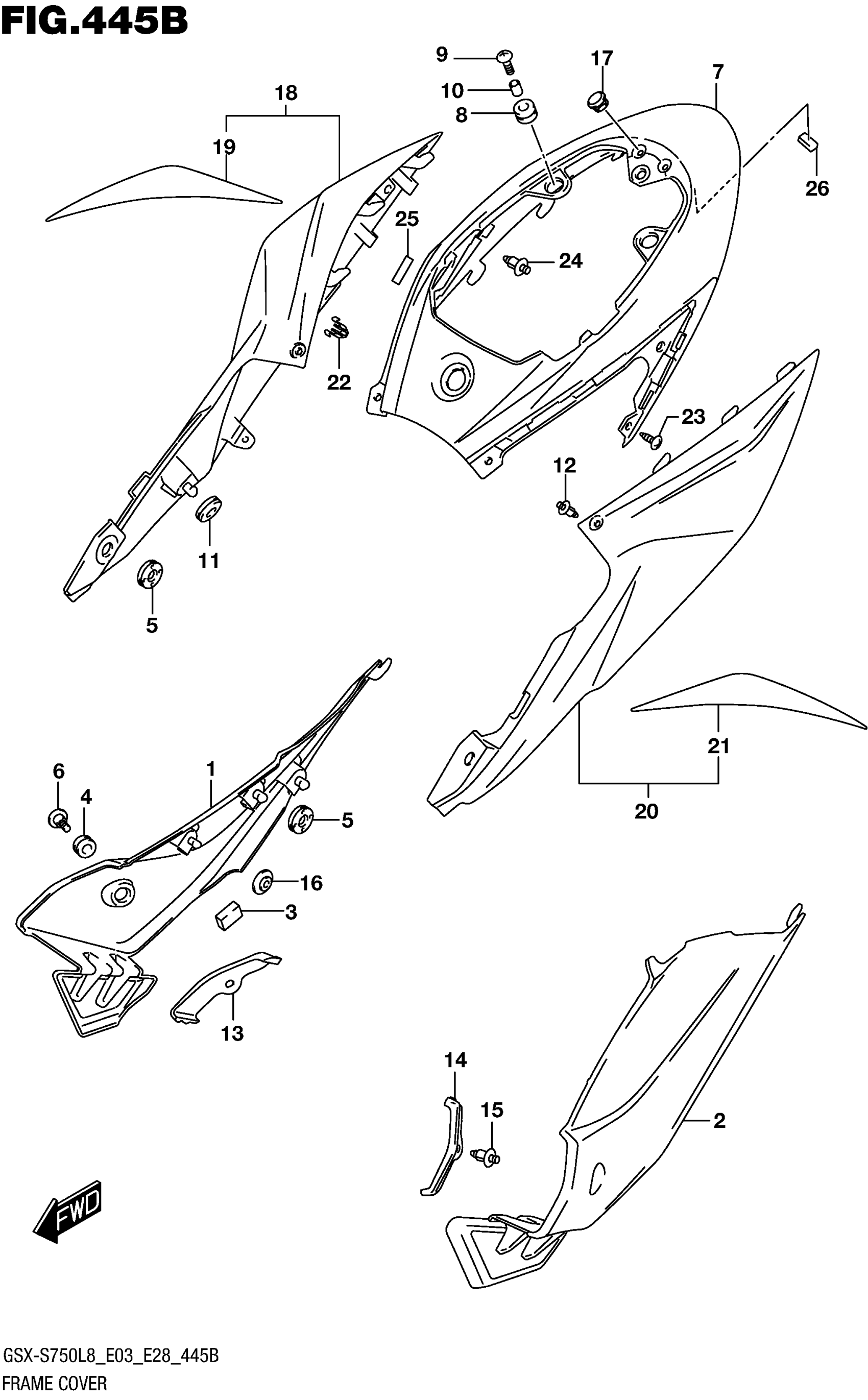

Suzuki GSX-S750AL8 (2018) FRAME COVER (FOR KEL) Diagram

#

Description
Price

1

COVER, FRAME FRONT RH

47511-13K00

$145.62

2

COVER, FRAME FRONT LH

47611-13K00

$87.93

3

CUSHION

94422-06G00

$5.82

4

CUSHION

09320-09016

$1.97

5

CUSHION

09320-08028

$3.04

6

SCREW (6X20)

47118-08J00

$4.35

7

COVER, FRAME CENTER (BLACK)

47311-13K00-YKV

$219.47

8

CUSHION (10X24X13) This part replaces 47312-37H00.

47312-37H10

$2.91

9

SCREW (6X20)

09136-06105

$1.97

10

SPACER (6.5X10X7)

09180-06283

$1.91

11

CUSHION

09320-08018

$3.04

12

CLIP (BLACK)

09409-06314-5PK

$2.78

13

COVER,FRAME TOP RH

47711-08J00

$7.35

14

COVER,FRAME TOP LH

47811-08J00

$7.35

15

CLIP

09409-07333

$2.31

16

CUSHION

09320-06026

$4.10

17

CUSHION, SEAT MOUNT

45148-27J00

$17.72

18

COVER, FRAME RH (BLACK)

47110-13K10-YVB

$131.20

19

.TAPE, FRAME COVER RH (BLUE)

68135-13K00-YSF

$22.51

20

COVER, FRAME LH (BLACK)

47210-13K10-YVB

$131.20

21

.TAPE, FRAME COVER LH (BLUE)

68145-13K00-YSF

$26.48

22

CLIP

09409-08326

$2.48

23

SCREW

03541-0512B

$1.78

24

CLIP

09409-07333

$2.31

25

CUSHION (10X30X2)

44894-24A00

$1.72

26

CUSHION, FRAME COVER CTR NO.3

63211-26G00

$9.75

27

COLOR :

SPECIAL NOTE

Unavailable

27

KEL=YSF(BLUE),YVB(BLACK)

SPECIAL NOTE

Unavailable
